Pinout Values and Diagnostic Parameters

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

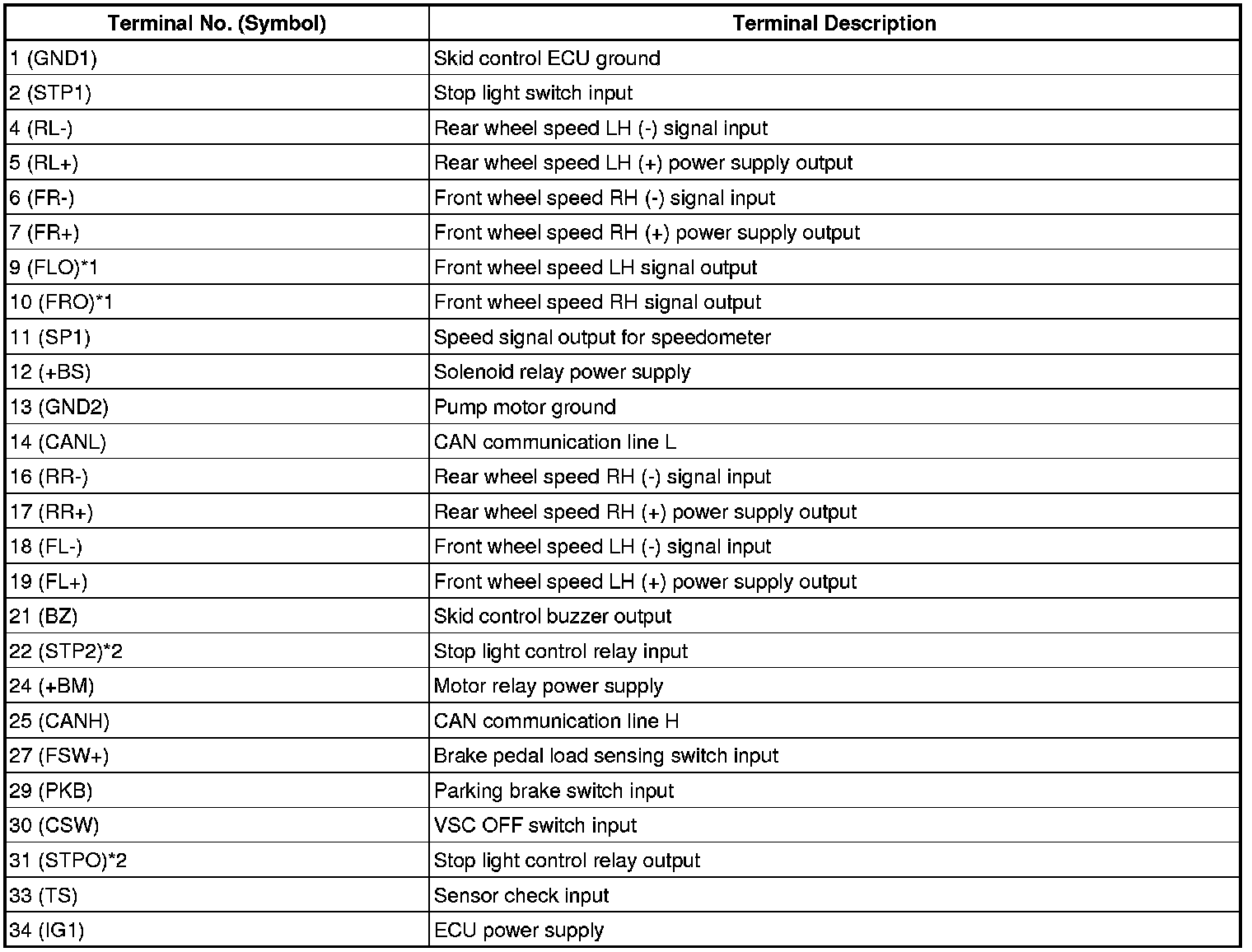

1. TERMINALS OF ECU









*1: w/ AFS
*2: for automatic transmission
2. TERMINAL INSPECTION

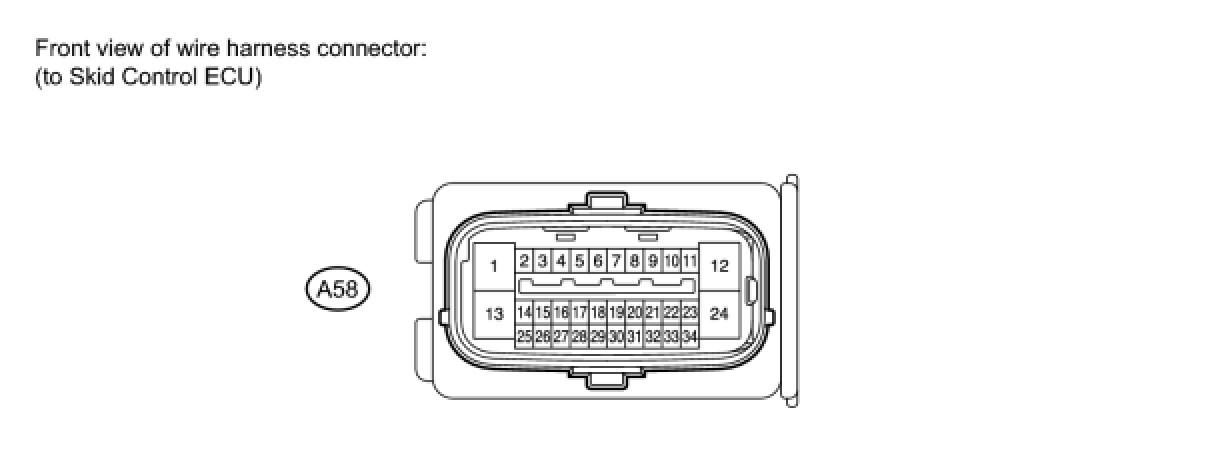

(a) Disconnect the connectors and measure the voltage or resistance on the wire harness side.




HINT:

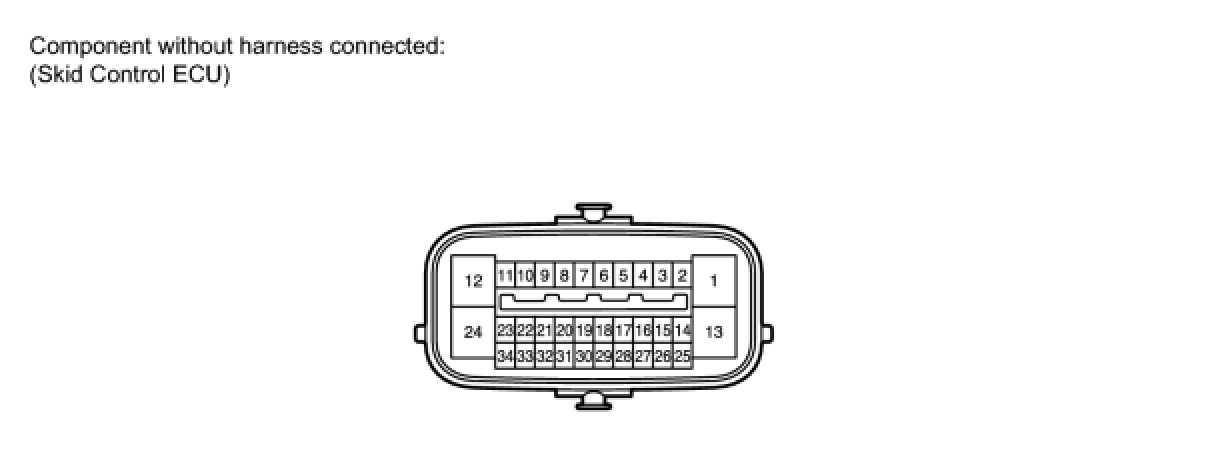

Voltage cannot be measured with the connectors connected to the skid control ECU as the connectors are watertight.

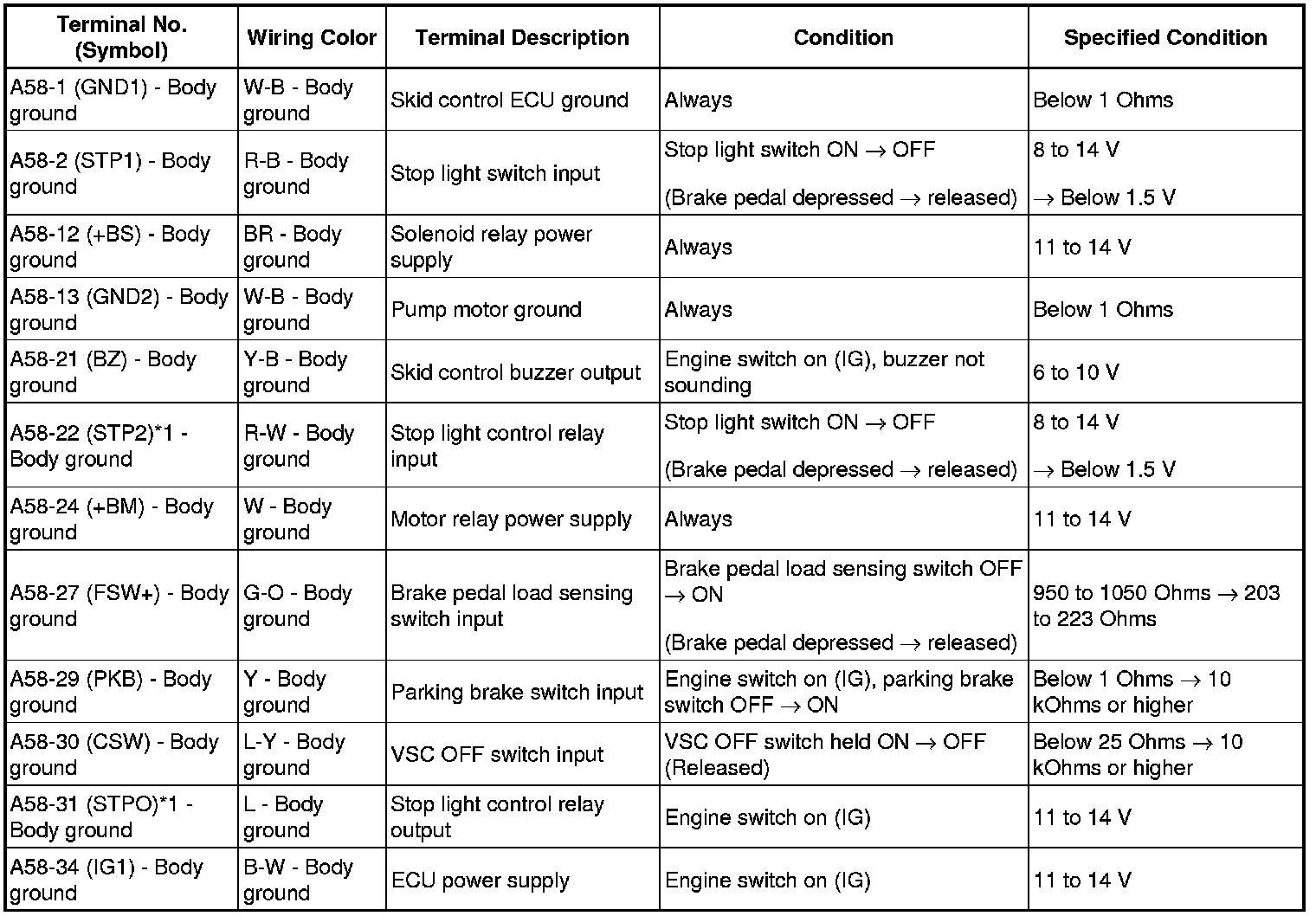

Standard





*1: for automatic transmission
