Hood Sensor/Switch (For Alarm): Testing and Inspection

THEFT DETERRENT: ENGINE HOOD COURTESY SWITCH: INSPECTION

INSPECTION

1. INSPECT ENGINE HOOD COURTESY SWITCH

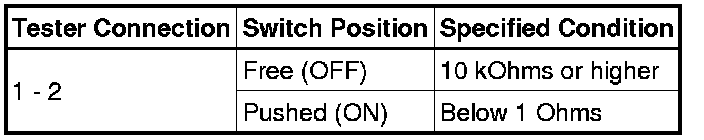

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the hood lock assembly.
