Installation








SEAT: SEAT HEATER CONTROL: INSTALLATION

INSTALLATION

1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY

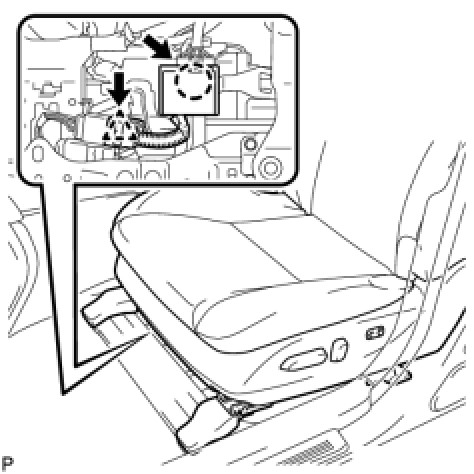

(a) Install the seat heater control sub-assembly with the clamp and claw.
(b) Connect the 2 connectors.
