Luggage Compartment Door Lock

DOOR LOCK: LUGGAGE COMPARTMENT DOOR LOCK: INSPECTION

INSPECTION

1. INSPECT LUGGAGE COMPARTMENT DOOR LOCK





(a) Move the door lock to the lock position.

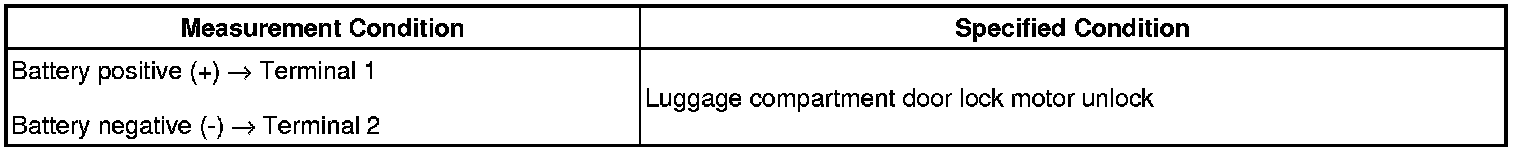

(b) Apply battery voltage to the door lock motor and check operation of the door lock motor.
OK:





If the result is not as specified, replace the door lock assembly.
