Console Box Light

LIGHTING: CONSOLE BOX LIGHT: INSPECTION

INSPECTION

1. INSPECT CONSOLE BOX LIGHT





(a) Remove the console box light.

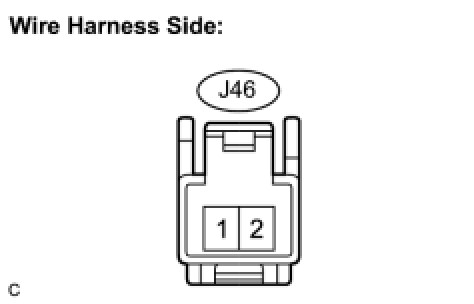

(b) Measure the voltage according to the value(s) in the table below.

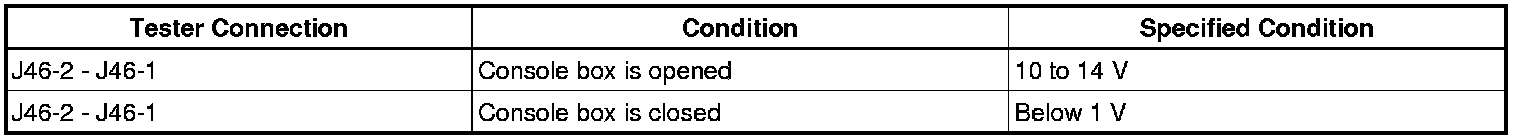

Standard voltage:





If the result is not as specified, repair or replace the wire harness or connector.

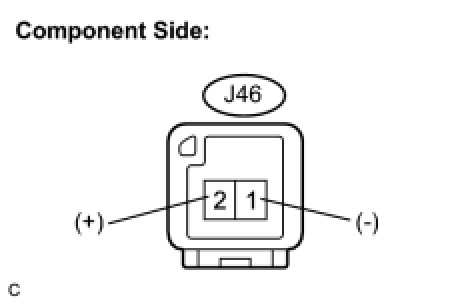

(c) Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
(d) Check that the console box light comes on.
OK:
Comes on
If the result is not as specified, replace the console box light.
