Removal

ENGINE HOOD / DOOR: FUEL LID OPENER MOTOR ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
2. REMOVE DECK SIDE TRIM BOX LH
3. REMOVE DECK SIDE TRIM BOX RH
4. REMOVE ROPE HOOK ASSEMBLY Removal
5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER Removal
6. REMOVE NO. 2 ROOM LIGHT ASSEMBLY Removal
7. REMOVE ROPE HOOK Removal
8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal
9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal
10. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER Removal

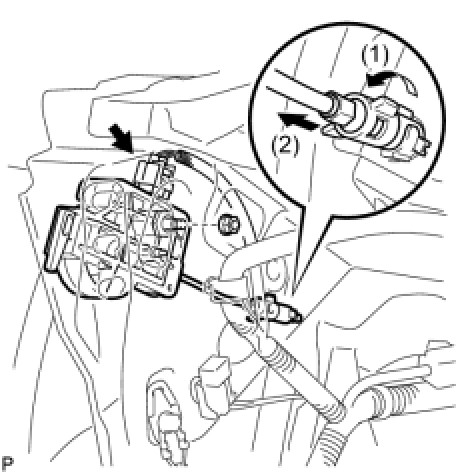

11. REMOVE FUEL LID OPENER MOTOR ASSEMBLY





(a) Disconnect the connector.
(b) Remove the lock and nut as shown in the illustration.
(c) Remove the fuel lid opener motor assembly.
