Integration Control And Panel Assembly Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Integration Control and Panel Assembly Power Source Circuit

Integration Control and Panel Assembly Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the integration control & panel assembly.

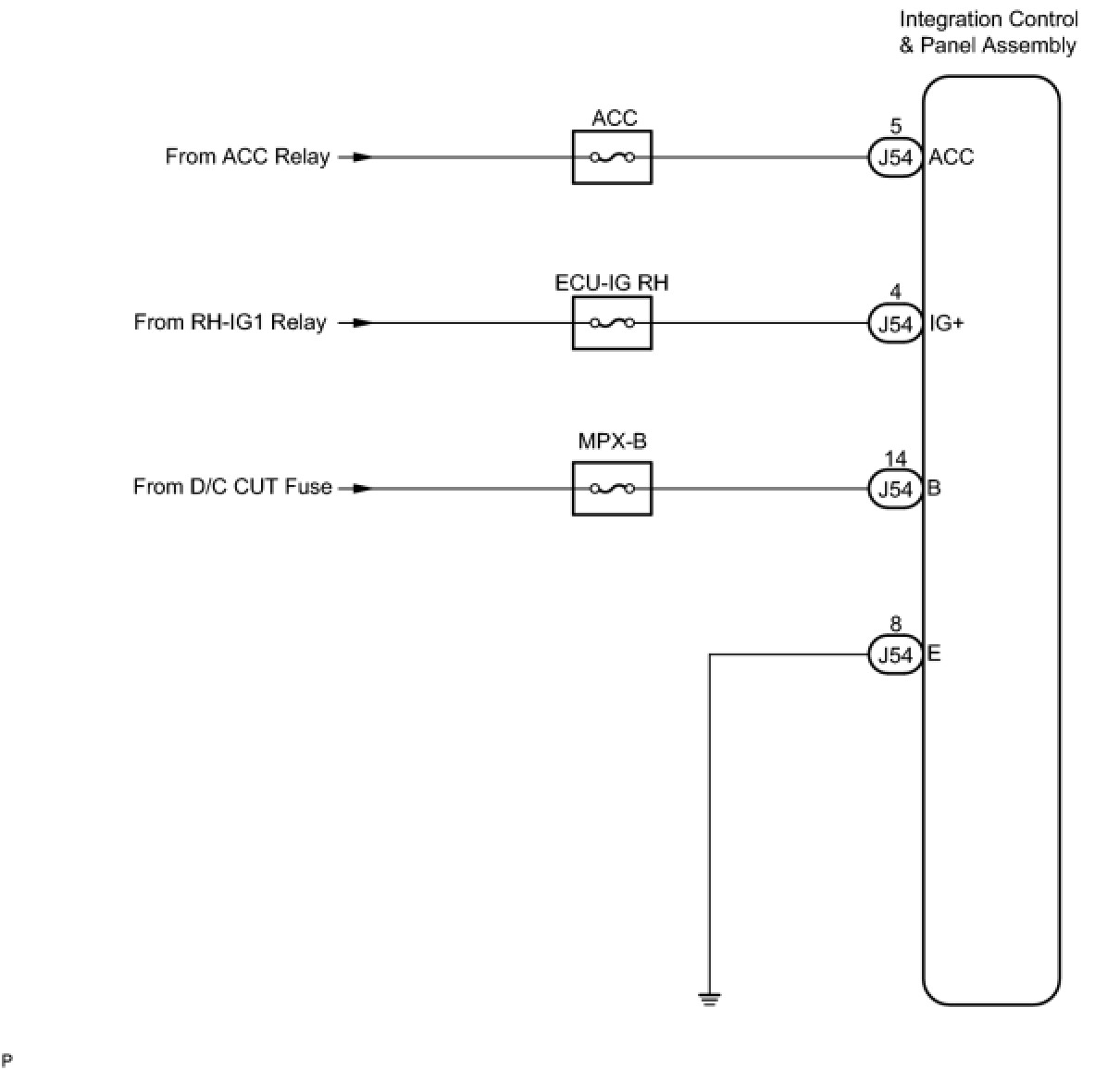

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT INTEGRATION CONTROL & PANEL ASSEMBLY

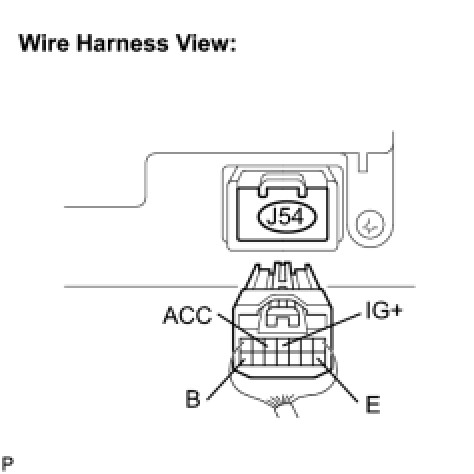

(a) Disconnect the integration control & panel assembly connector J54.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

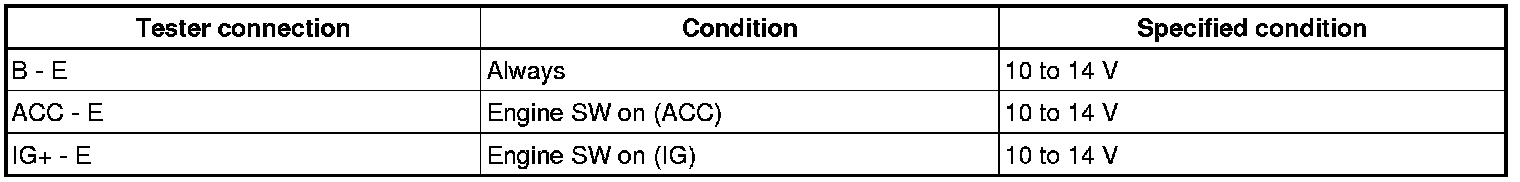

(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
