Display Signal Circuit Between Navigation ECU and Multi-Display

NAVIGATION: NAVIGATION SYSTEM: Display Signal Circuit between Navigation ECU and Multi-display

Display Signal Circuit between Navigation ECU and Multi-display

DESCRIPTION

This is the display signal circuit from the navigation ECU to the multi-display.

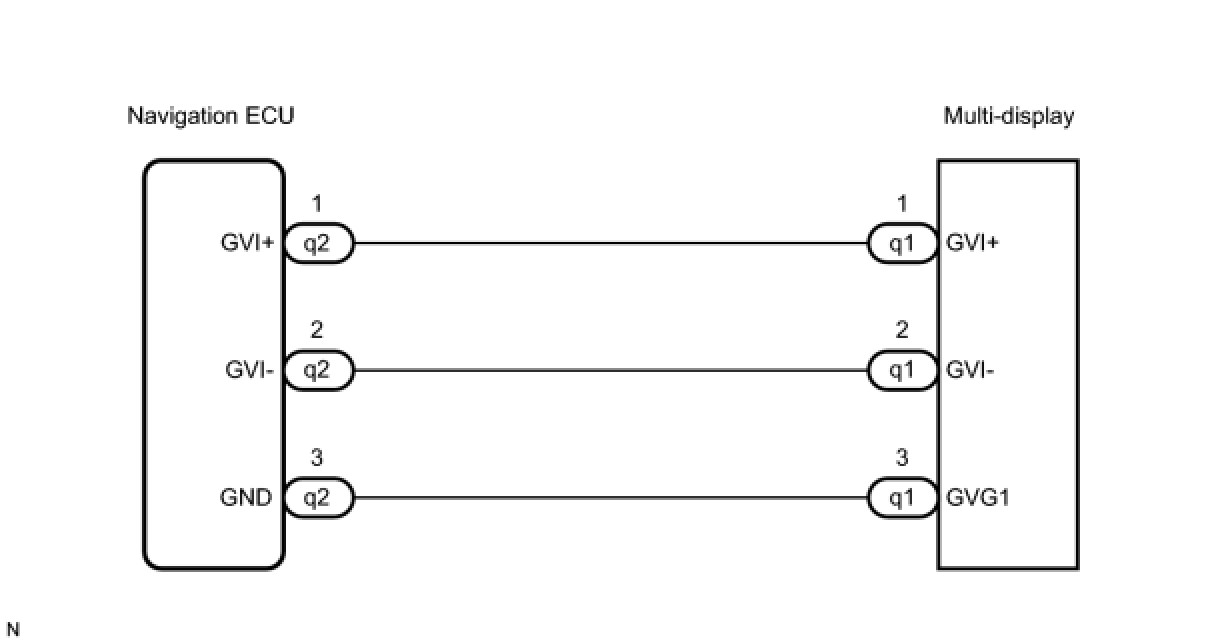

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - MULTI-DISPLAY)

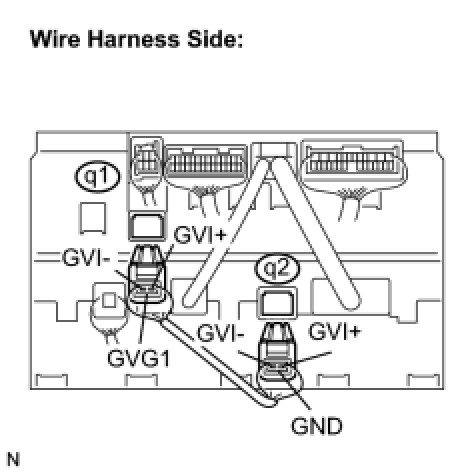

(a) Disconnect the navigation ECU connector q2 and multi-display connector q1.

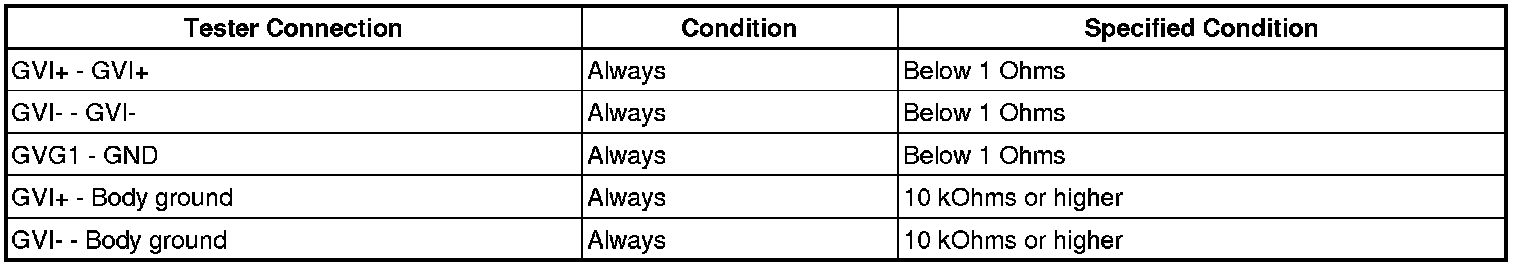

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
