Display Signal Circuit between Multi-display and Radio Receiver

DESCRIPTION

This is the DVD display signal circuit from the radio receiver to the multi-display.

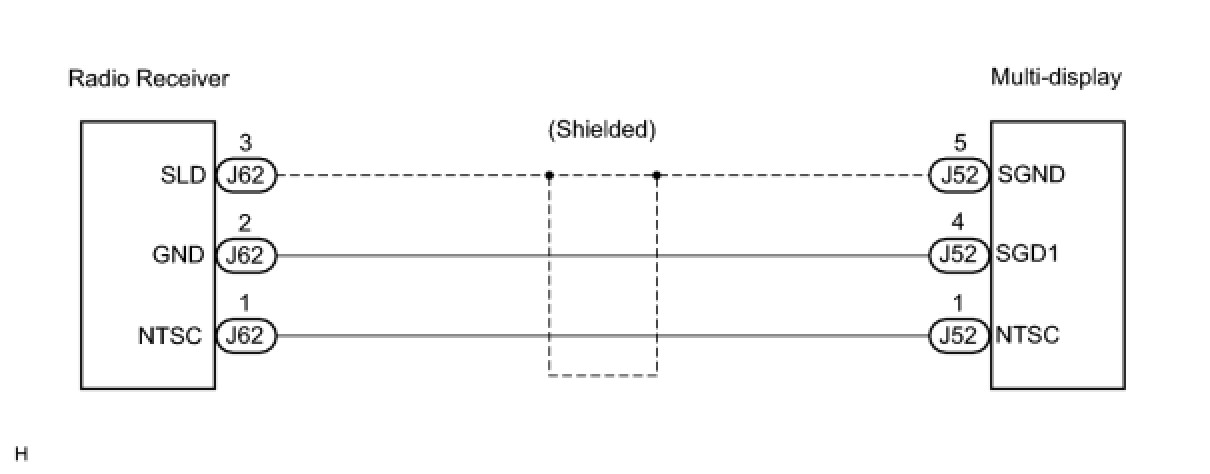

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - MULTI-DISPLAY)

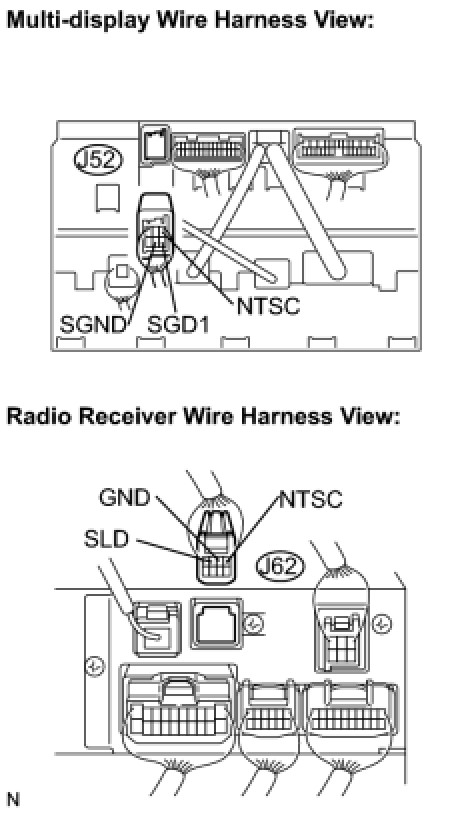

(a) Disconnect the multi-display connector J52 and radio receiver J62 connector.

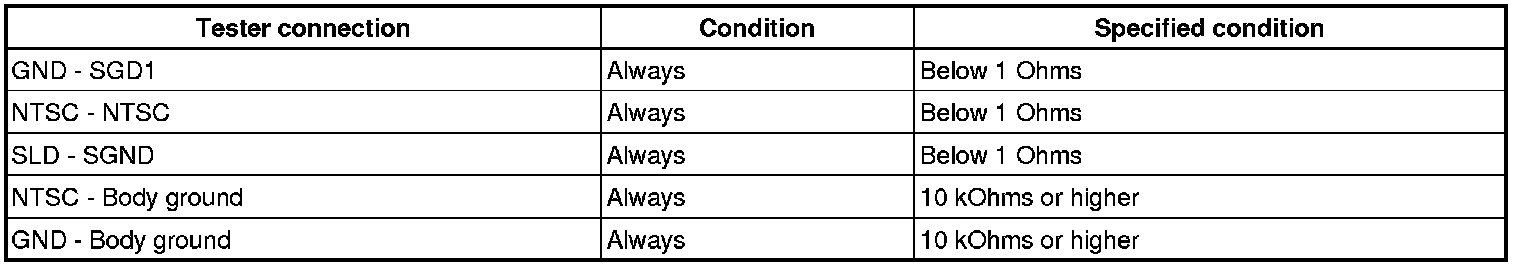

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. INSPECT RADIO RECEIVER (OUTPUT SIGNAL)




(a) Reconnect the radio receiver connector J62.




(b) Measure the waveform according to the table below.
OK:





HINT:
The waveform pattern may differ from that shown in the illustration below due to differences in oscilloscope settings. A normal radio receiver operating condition can be determined if any waveform is output.

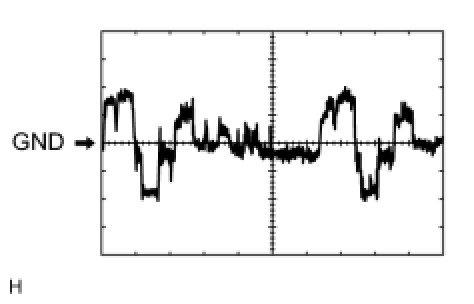

Oscilloscope wave

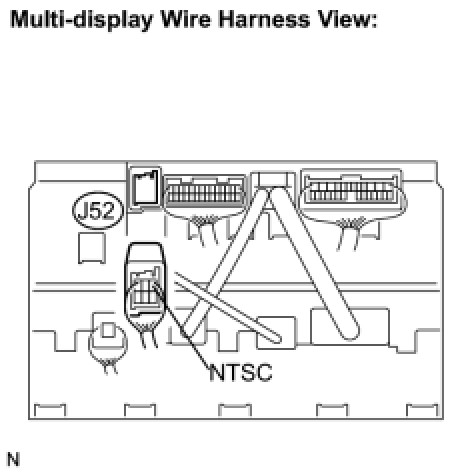

Terminal: NTSC - Body ground
Setting: 200 mV/DIV. 10 micro s/DIV.
Condition: DVD display is on.

NG -- REPLACE RADIO RECEIVER
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
