Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. TELEVISION CAMERA ASSEMBLY

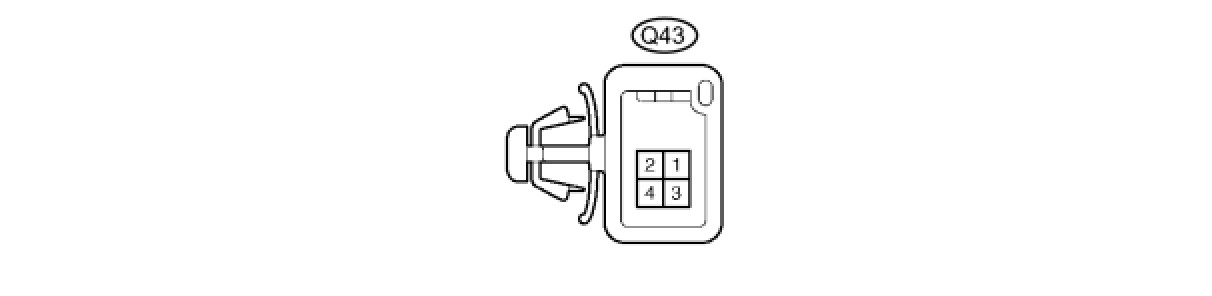

(a) Disconnect the Q43 camera connector.





(b) Measure the voltage and resistance between each terminal of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the Q43 camera connector.
(d) Measure the voltage and frequency between each terminal of the connector.





If the result is not as specified, the camera may have a malfunction.





(e) Reference:

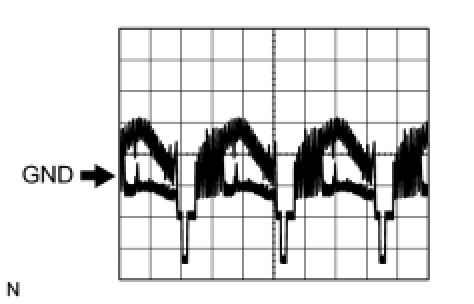

Oscilloscope waveform

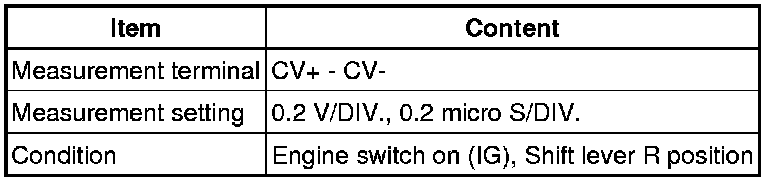

(1) Waveform 1






2. MULTI-DISPLAY Pinout Values and Diagnostic Parameters
