Collision Avoidance Warning Indicator: Testing and Inspection

PARK ASSIST / MONITORING: CLEARANCE WARNING BUZZER: INSPECTION

INSPECTION

1. INSPECT NO. 1 CLEARANCE WARNING BUZZER

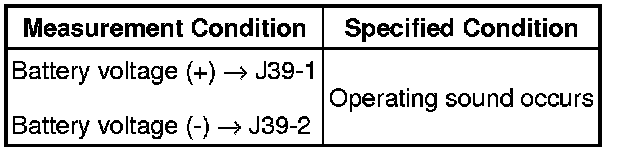

(a) Apply battery voltage and check operation of the warning buzzer, as shown in the table.
Result:





HINT:
The clearance warning buzzer does not sound without battery voltage applied because the buzzer is a separately-excited type.
