PARK ASSIST / MONITORING: CLEARANCE WARNING BUZZER: INSTALLATION

INSTALLATION

1. INSTALL CLEARANCE WARNING BUZZER

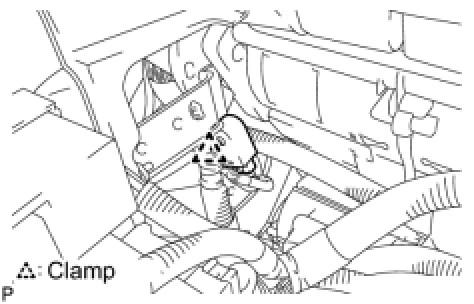

(a) Engage the clamp and install the clearance warning buzzer.
(b) Connect the connector.
2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) Installation
3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) Installation
4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation
5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
6. INSTALL CONSOLE BOX Installation
7. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation
8. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation
9. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation
10. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation
11. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation
12. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation
13. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation
14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
16. ADJUST CLOCK
