PARK ASSIST / MONITORING: ULTRASONIC SENSOR: INSTALLATION

INSTALLATION

1. INSTALL NO. 1 ULTRASONIC SENSOR
(a) Install the No. 1 ultrasonic sensor to the rear bumper.

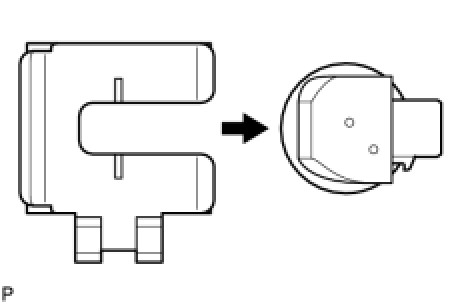

(b) Install the sensor retainer as shown in the illustration.
(c) Connect the sensor connector.
2. INSTALL NO. 2 ULTRASONIC SENSOR
(a) Install the No. 2 ultrasonic sensor to the rear bumper.

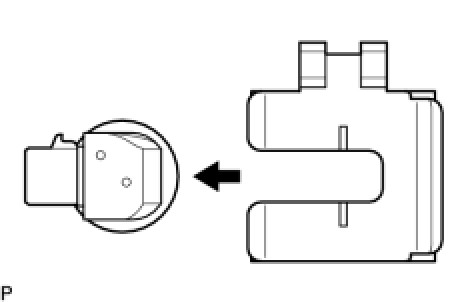

(b) Install the sensor retainer as shown in the illustration.
(c) Connect the sensor connector.
3. INSTALL REAR BUMPER ASSEMBLY Installation
4. INSTALL REAR BUMPER PLATE Installation
5. CONNECT LUGGAGE ROOM WIRE Installation
6. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER Installation
7. INSTALL LUGGAGE COMPARTMENT TRIM HOOK Installation
8. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation
9. INSTALL ROPE HOOK Installation
10. INSTALL ROOM LIGHT ASSEMBLY Installation
11. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER Installation
12. INSTALL ROPE HOOK ASSEMBLY Installation
13. INSTALL DECK SIDE TRIM BOX RH
14. INSTALL DECK SIDE TRIM BOX LH
15. INSTALL LUGGAGE COMPARTMENT TRIM COVER
16. INSTALL NO. 1 ULTRASONIC SENSOR
(a) Install the No. 1 ultrasonic sensor to the front bumper.





(b) Install the sensor retainer as shown in the illustration.
(c) Connect the sensor connector.
17. INSTALL FRONT BUMPER ASSEMBLY Installation
18. INSTALL RADIATOR GRILLE PROTECTOR Installation
19. INSTALL COOL AIR INTAKE DUCT SEAL Installation
20. VEHICLE PREPARATION FOR FOG LIGHT AIM Adjustments
21. PREPARATION FOR FOG LIGHT AIMING Adjustments
22. FOG LIGHT AIMING INSPECTION Adjustments
23. FOG LIGHT AIMING ADJUSTMENT Adjustments
