Antenna - Keyless Entry: Testing and Inspection








DOOR LOCK: ENTRY LOCK AND UNLOCK SWITCH: INSPECTION

INSPECTION

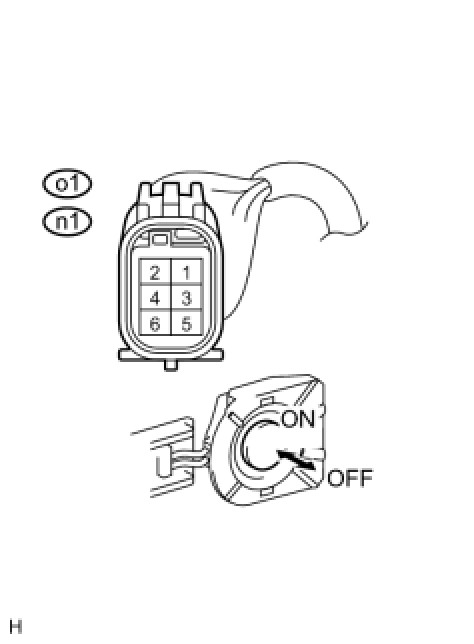

1. INSPECT ENTRY LOCK AND UNLOCK SWITCH





(a) Remove the outside handle.
(b) Disconnect the connectors.

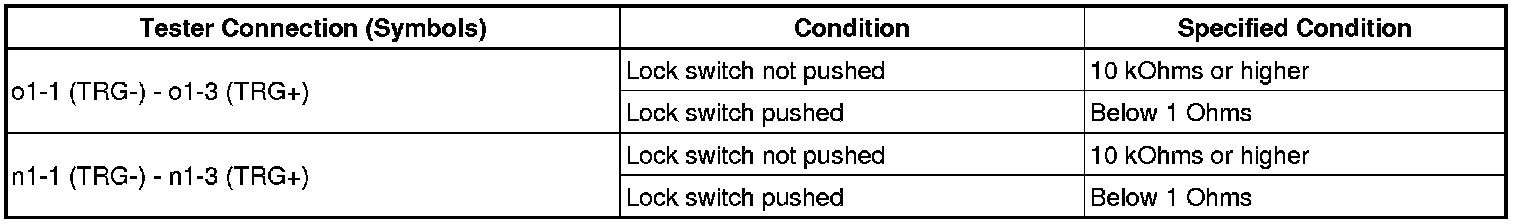

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
