Installation

ENGINE IMMOBILIZER: CERTIFICATION ECU: INSTALLATION

INSTALLATION

1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

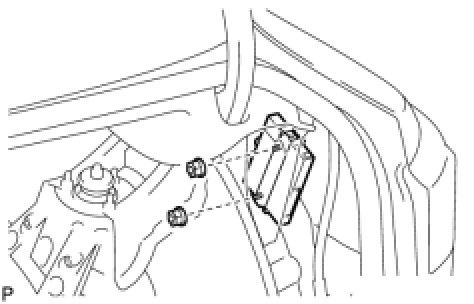

(a) Install the certification ECU (smart key ECU assembly) with the 2 nuts.
(b) Connect the connector.
2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
3. INSTALL LUGGAGE COMPARTMENT TRIM HOOK
4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
5. INSTALL ROPE HOOK
6. INSTALL ROOM LIGHT ASSEMBLY
7. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
8. INSTALL ROPE HOOK ASSEMBLY
9. INSTALL DECK SIDE TRIM BOX LH
10. INSTALL DECK SIDE TRIM BOX RH
11. INSTALL LUGGAGE COMPARTMENT TRIM COVER
12. REGISTER ECU COMMUNICATION ID
NOTE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.

13. REGISTER KEY
NOTE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.
