P0630

4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0630: VIN not Programmed or Mismatch - ECM / PCM

DTC P0630 - VIN not Programmed or Mismatch - ECM / PCM

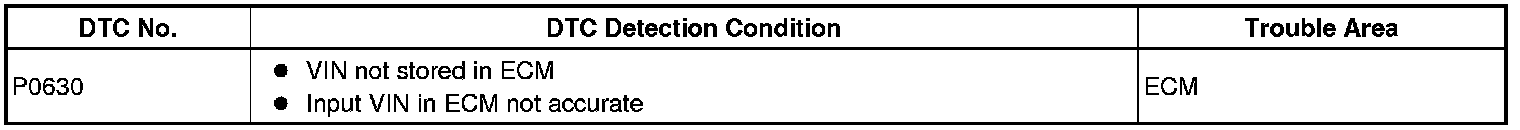

DESCRIPTION

DTC P0630 is set when the Vehicle Identification Number (VIN) is not stored in the Engine Control Module (ECM) or the input VIN is not accurate. Input the VIN with Techstream.

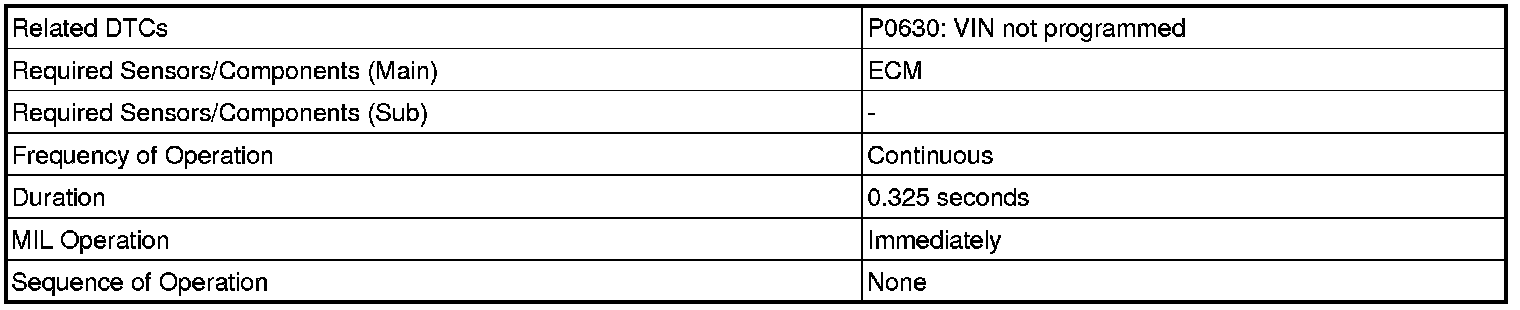

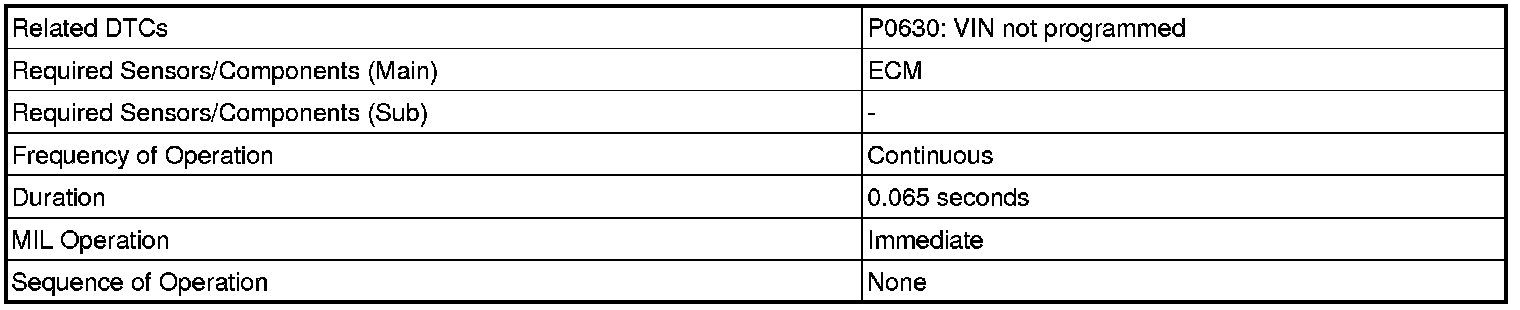

MONITOR STRATEGY

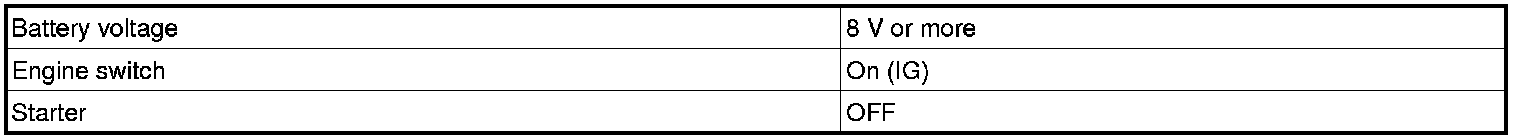

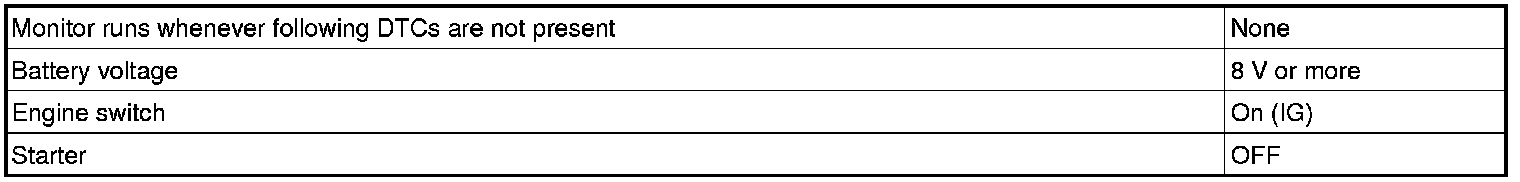

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE

PROCEDURE

1. READ CURRENT DTC
(a) Connect Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the tester on.
(c) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(d) Read DTCs.

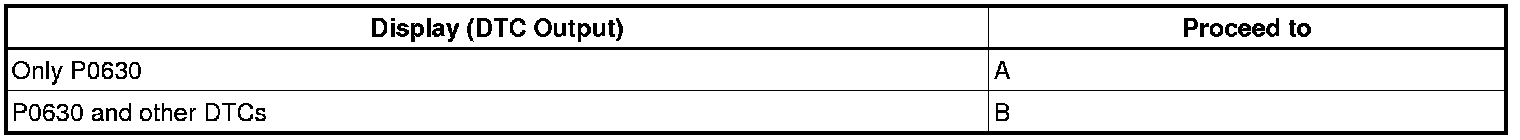

Result:





If any DTCs other than P0630 are output, troubleshoot those DTCs first.
NOTE:
If P0630 is set, the VIN must be input to the ECM using Techstream. However, all DTCs are cleared automatically by the tester when inputting the VIN. If DTCs other than P0630 are set, check them first.

B -- GO TO DTC CHART
A -- Continue to next step.
2. INPUT VIN WITH TECHSTREAM
NEXT -- END
