NAVIGATION: NAVIGATION SYSTEM: 63-41: Wrong Disc

DTC 63-41 - Wrong Disc

DTC 63-42 - Disc cannot be Read

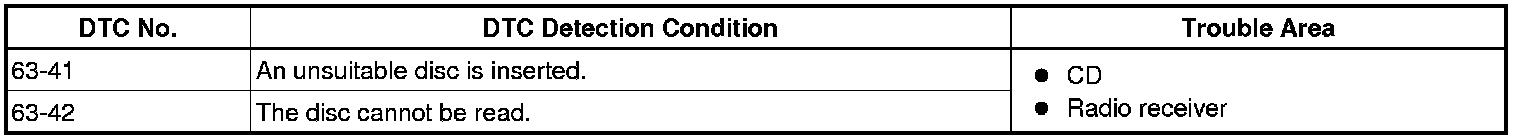

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK DISC

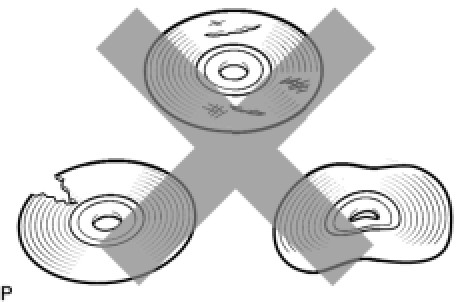

(a) Check that the disc is not deformed or cracked.
OK:
No deformations or cracks on the disc.
NG -- CHANGE DISC
OK -- Continue to next step.
2. DISC CLEANING




(a) Disc cleaning

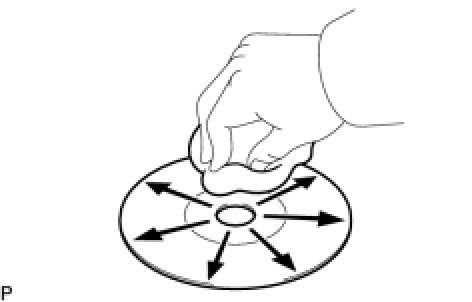

(1) If dirt is on the disc surface, wipe it clean with a soft cloth from inside to outside in a radial direction.
NOTE:
Do not use a conventional record cleaner or anti-static preservative.

NEXT -- Continue to next step.
3. CLEAR DTC
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.
4. RECHECK DTC
(a) Recheck for DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.
OK -- END
NG -- Continue to next step.
5. REPLACE DISC WITH ANOTHER AND RECHECK
(a) Replace the disc with another and recheck.
(1) Replace the disc with another normal one.
(2) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(3) Recheck for DTCs and check if the same trouble occurs again.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER
OK -- END
