4GR-FSE STARTING: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
SMART ACCESS SYSTEM WITH PUSH-BUTTON START

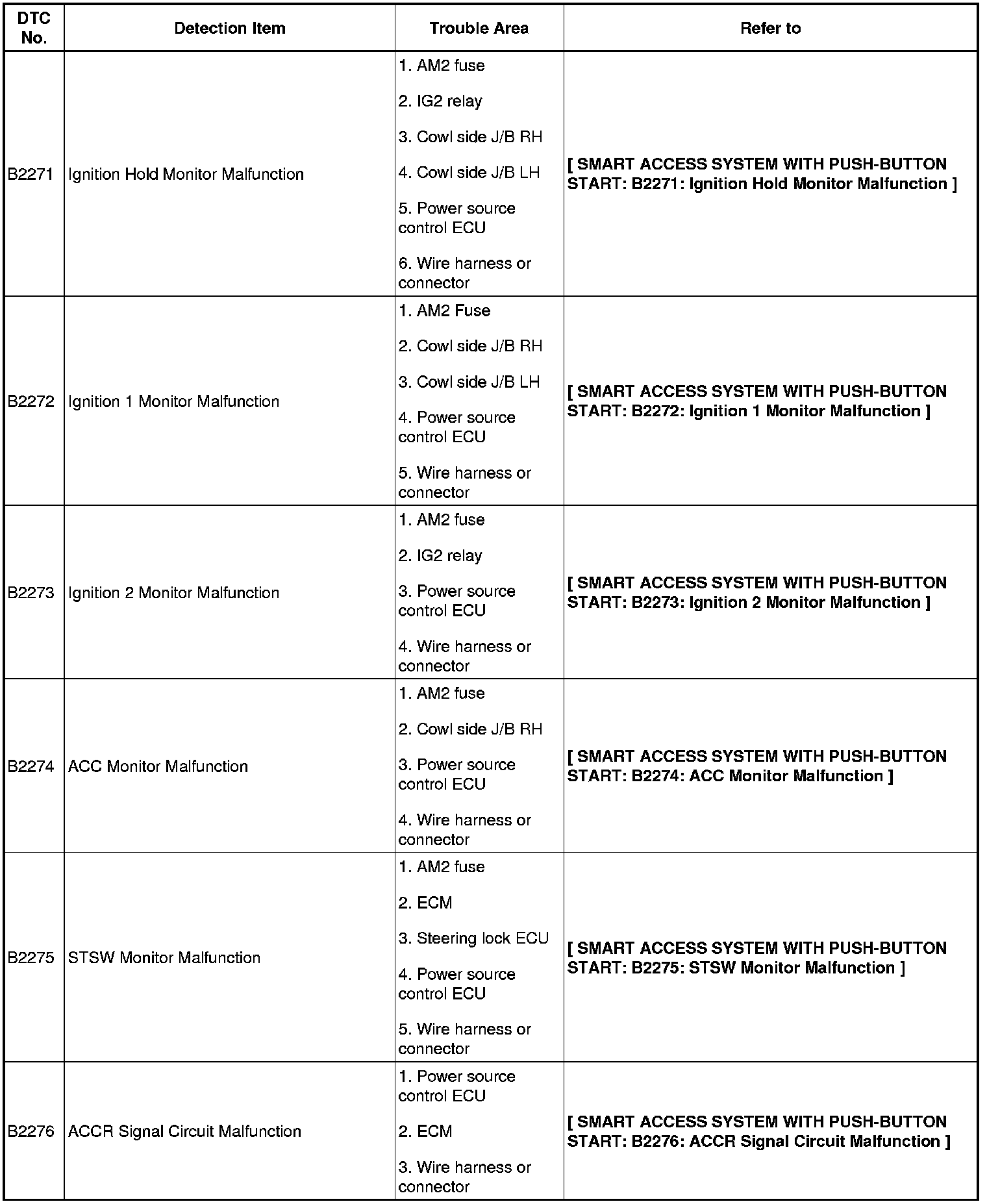

DTC B2271-B2276:

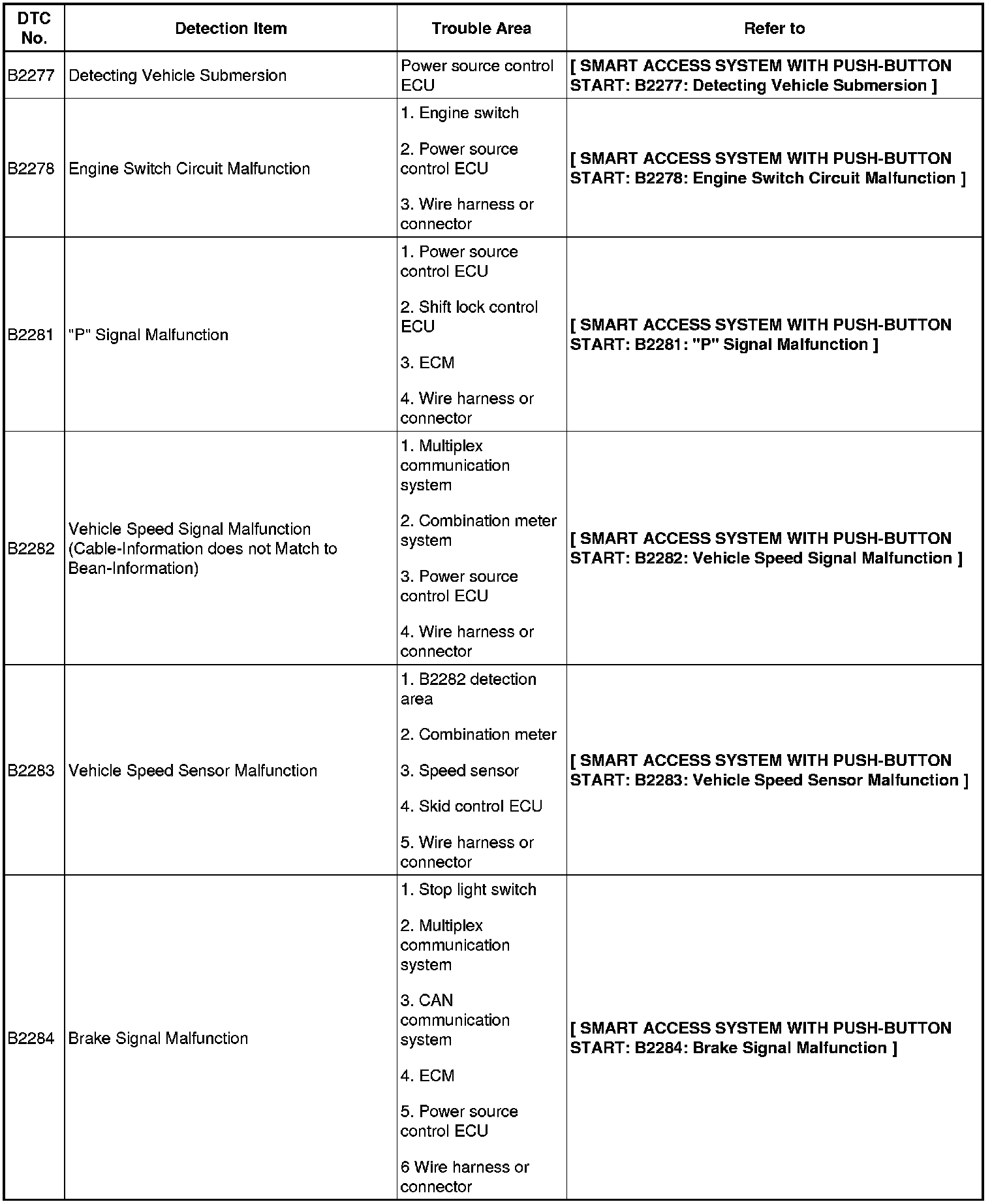

DTC B2277-B2284:

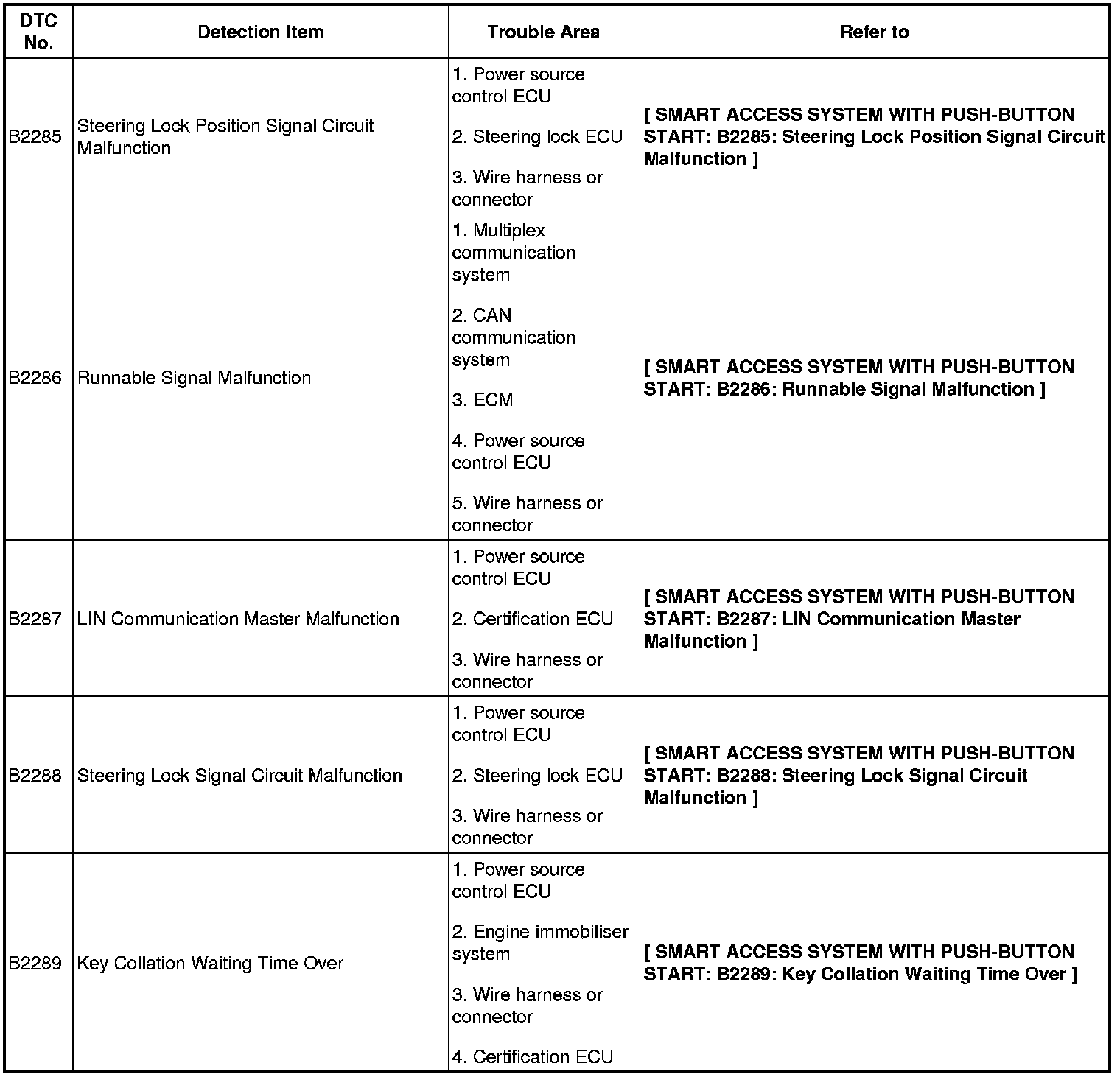

DTC B2285-B2289:
