PRE-COLLISION: PRE-COLLISION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
PRE-COLLISION SYSTEM DIAGNOSTIC TROUBLE CODE CHART

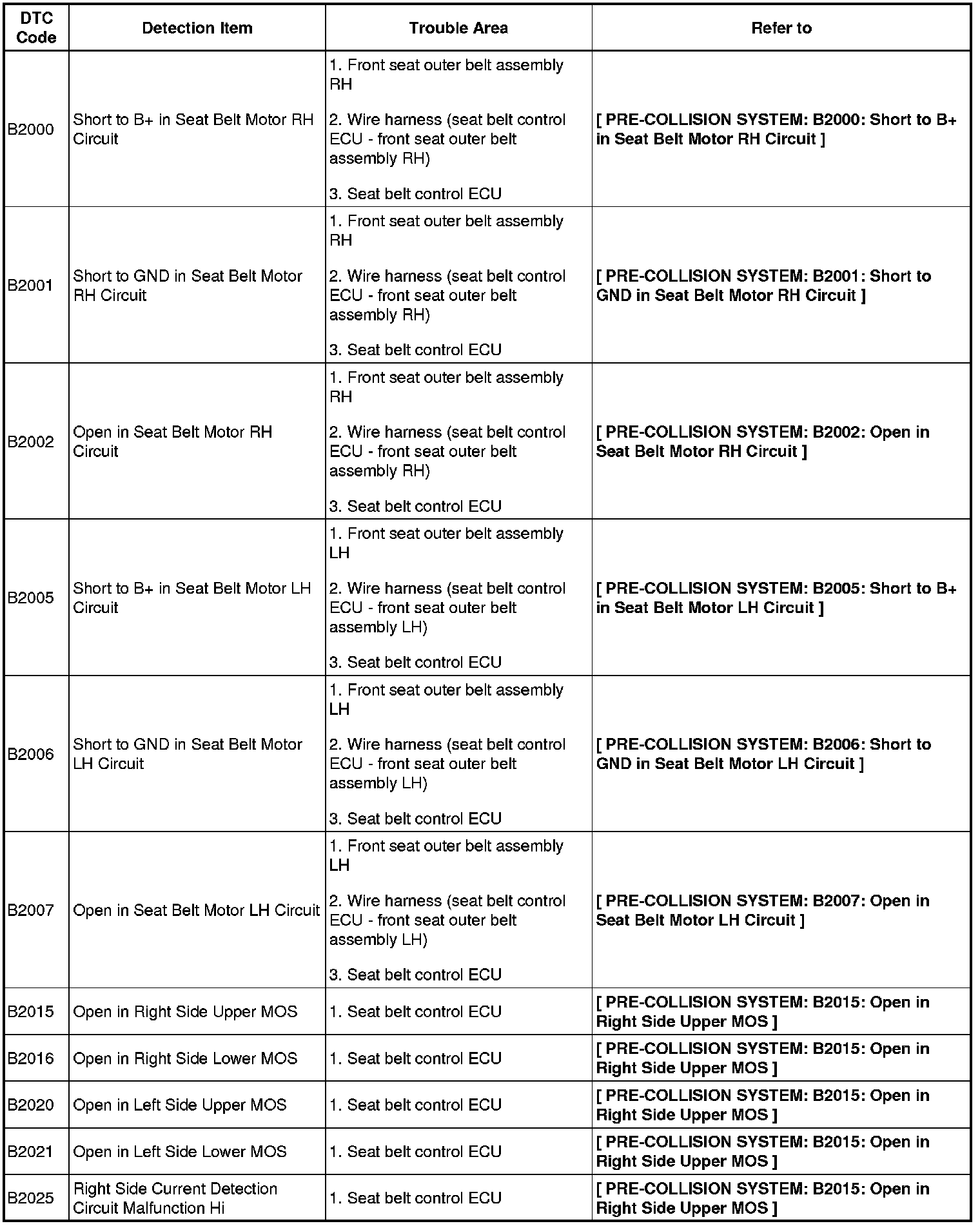

DTC B2000-B2025:

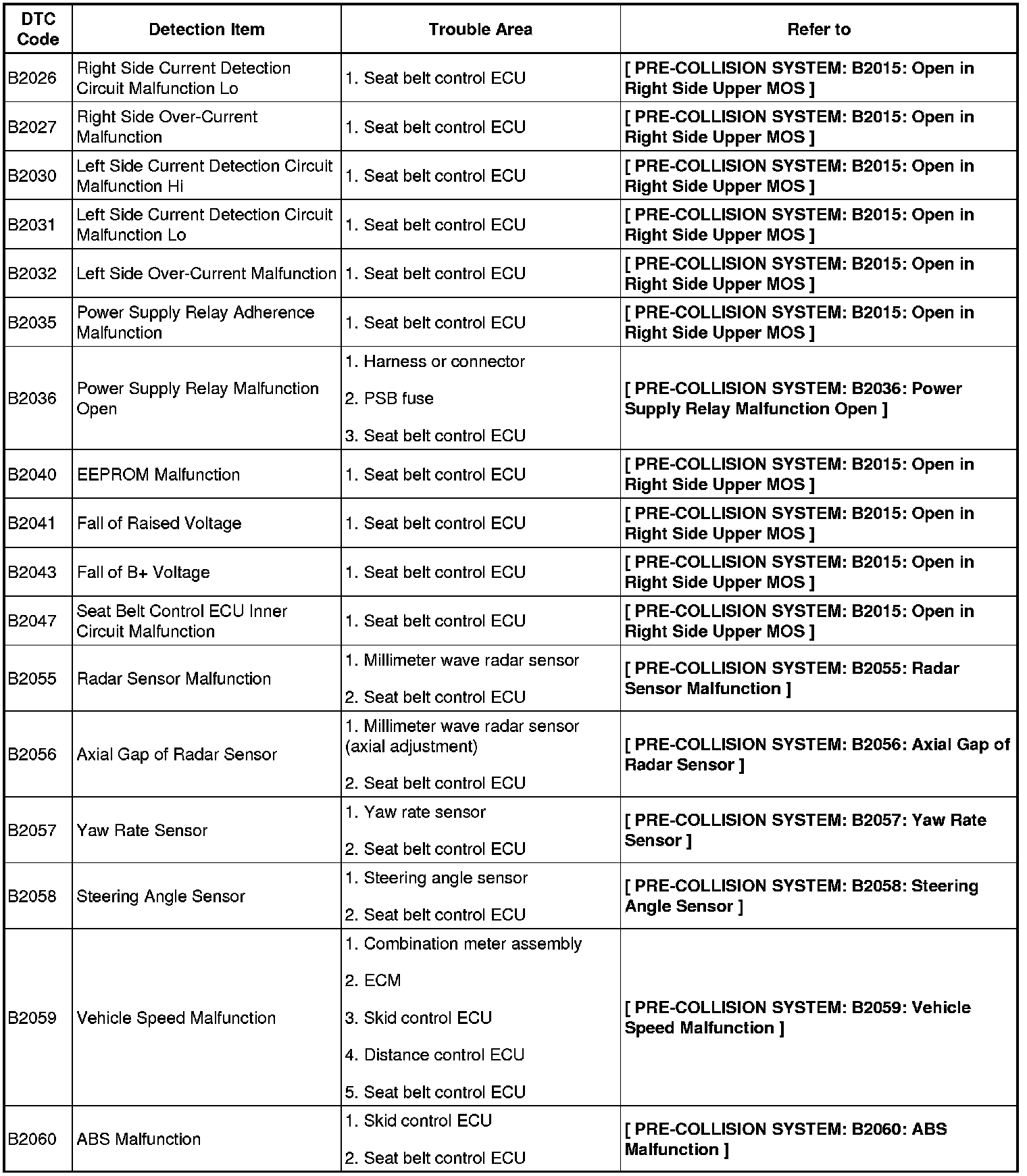

DTC B2026-B2060:

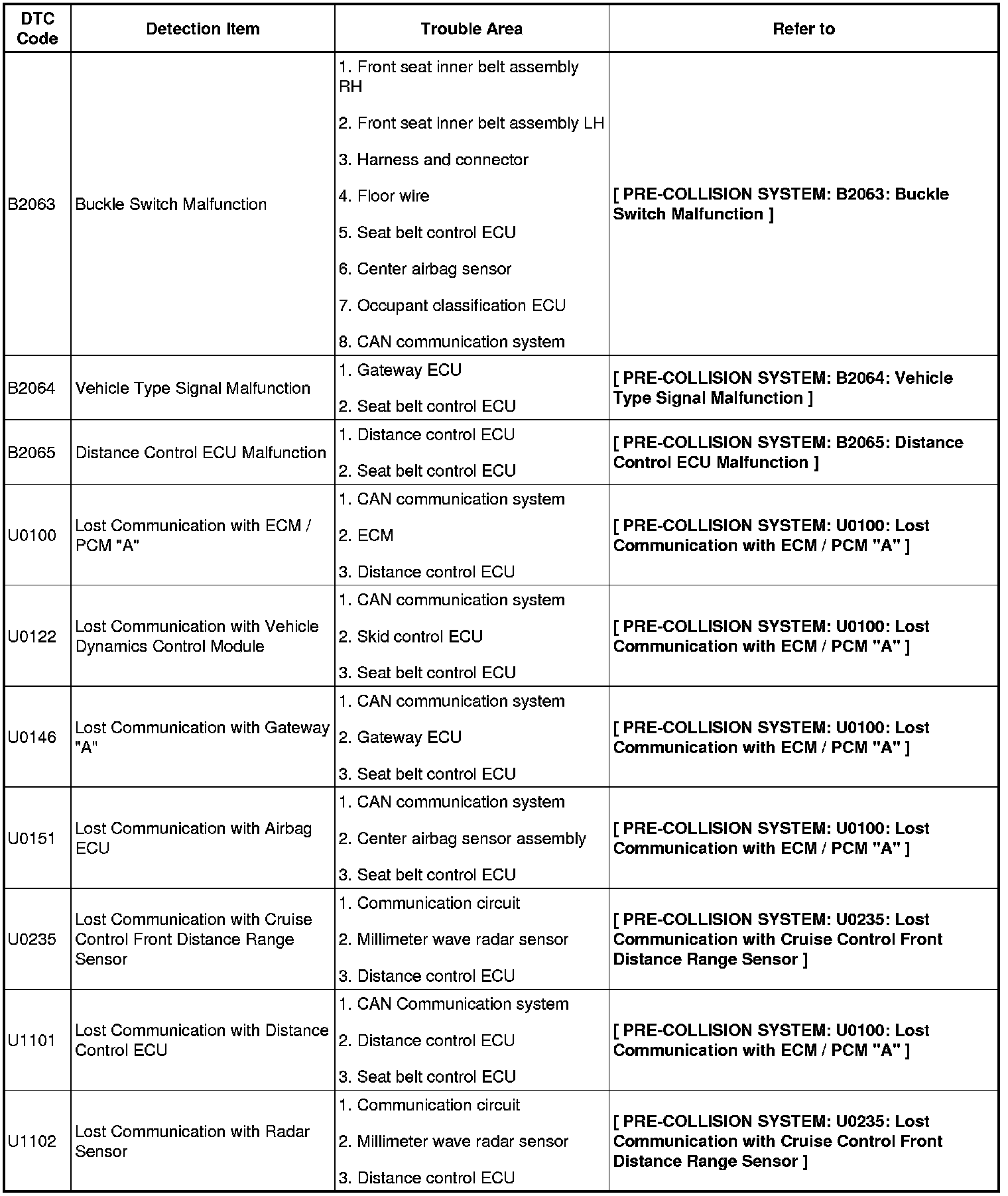

DTC B2063-B2065/U0100-U1102:
