Navigation System
NAVIGATION: NAVIGATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
COMMUNICATION DIAGNOSIS

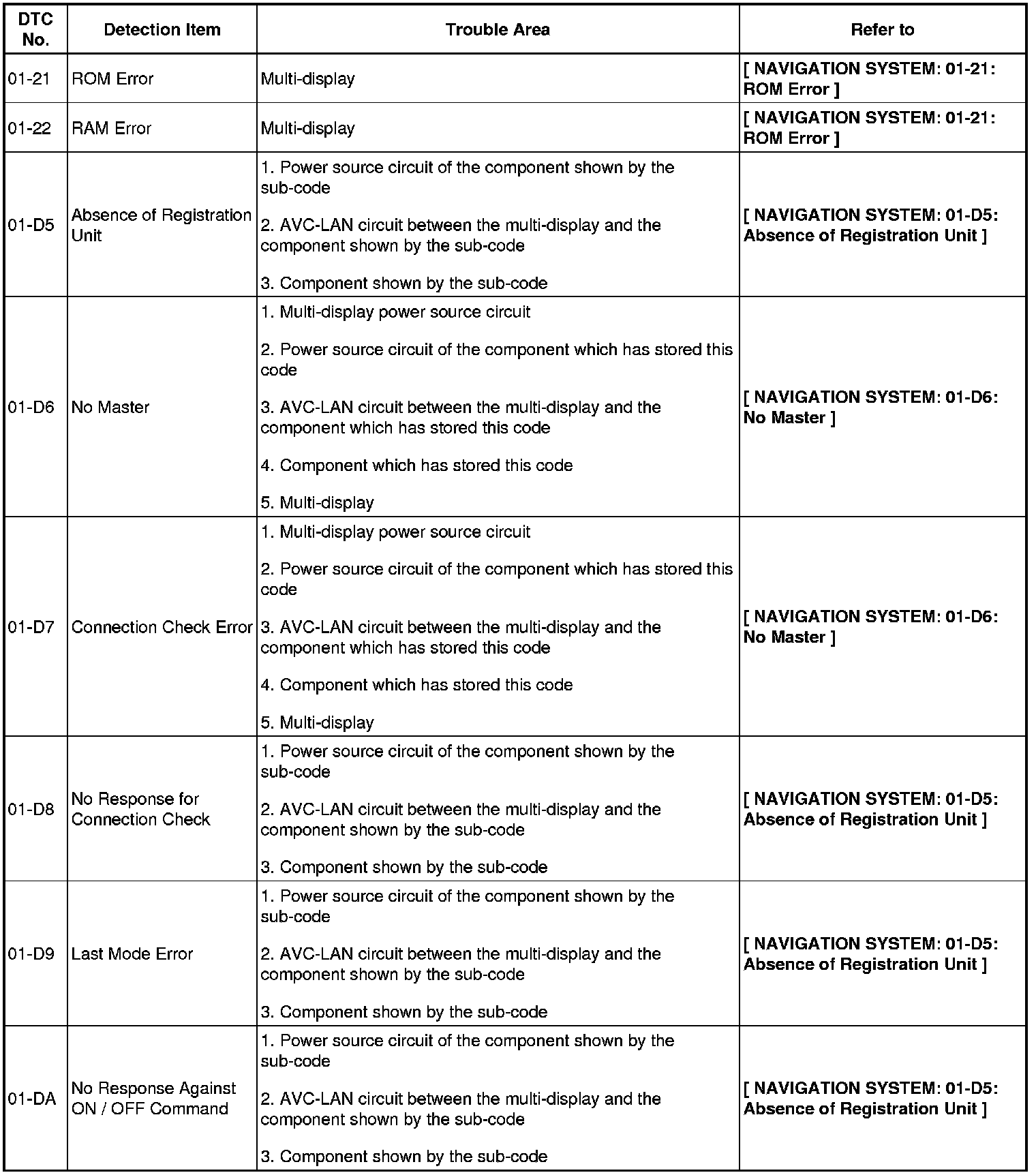

DTC 01-21-01-DA:

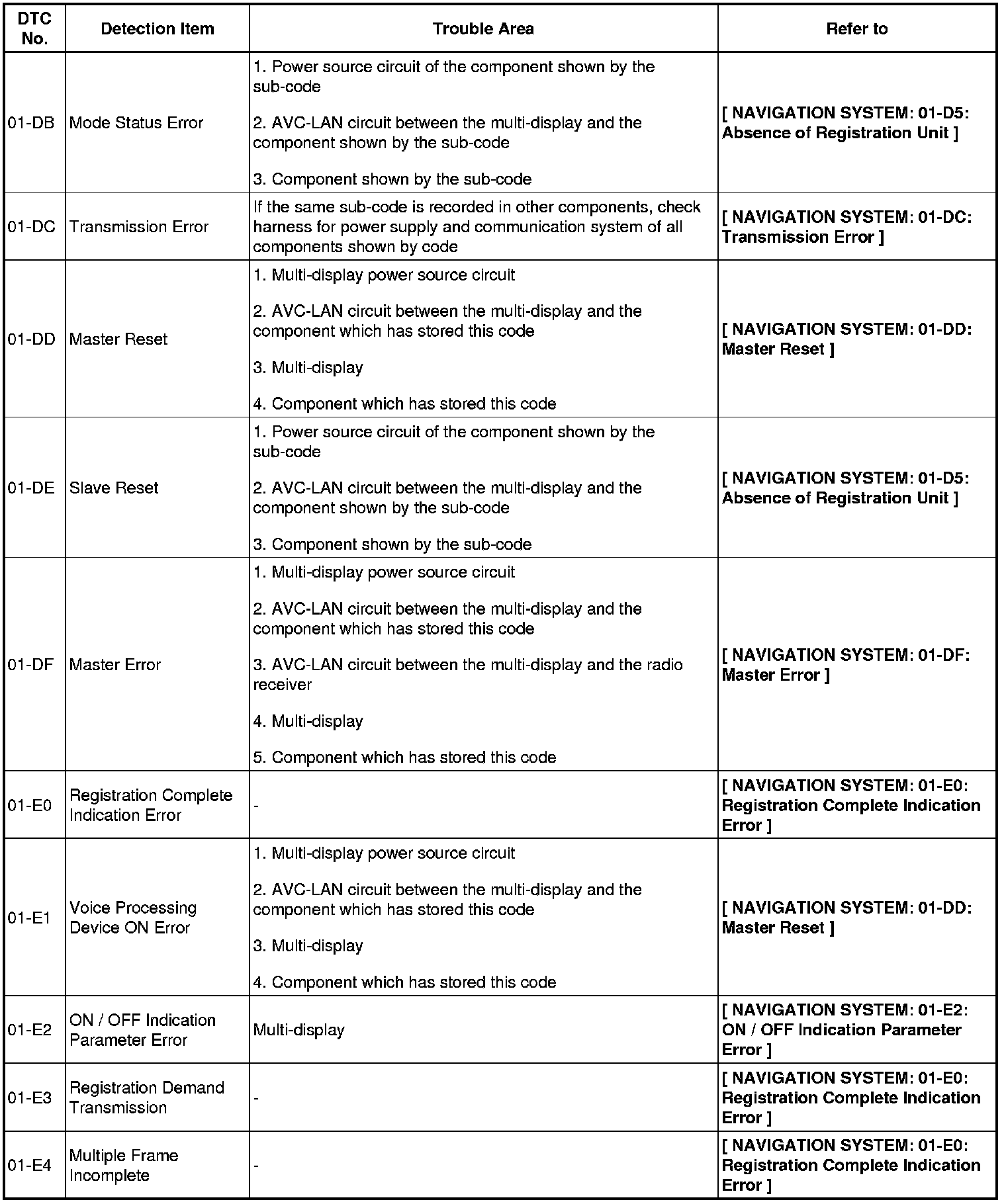

DTC 01-DB--1-E4:
SW

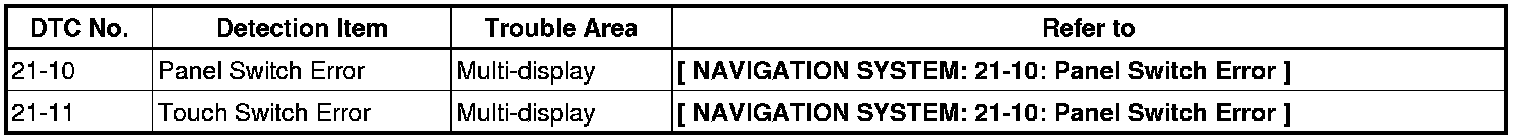

DTC 21-10-21-11:
SW WITH NAME
DTC 23-10-23-11:
SW CONVERTING

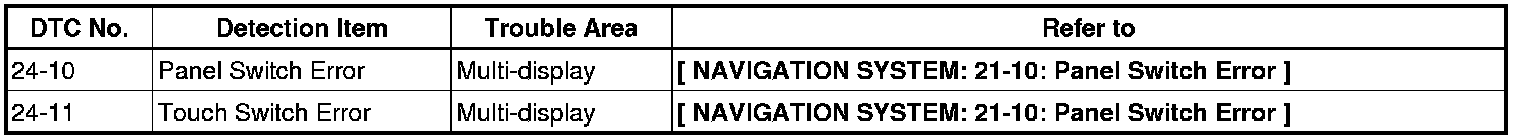

DTC 24-10-24-11:
COMMAND SW

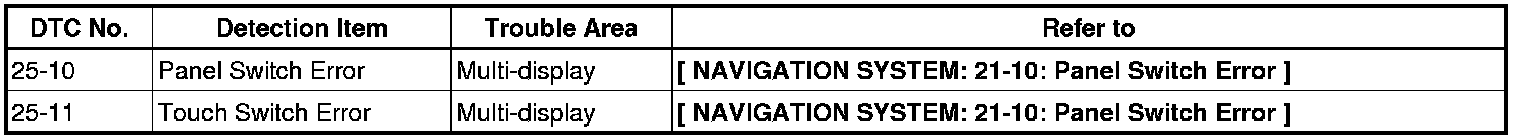

DTC 25-10-25-11:
FRONT MONITOR

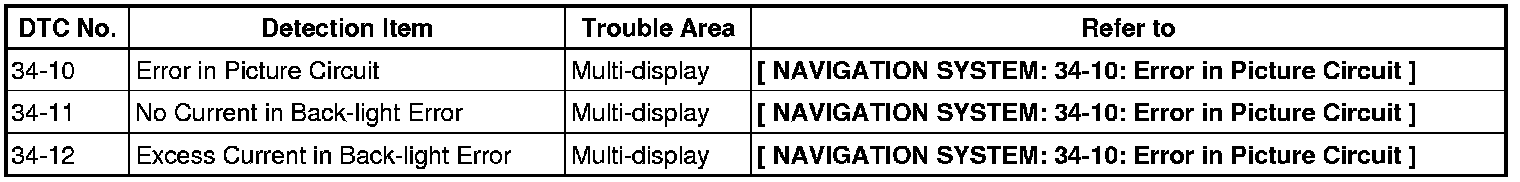

DTC 34-10-34-12:
DVD CHANGER

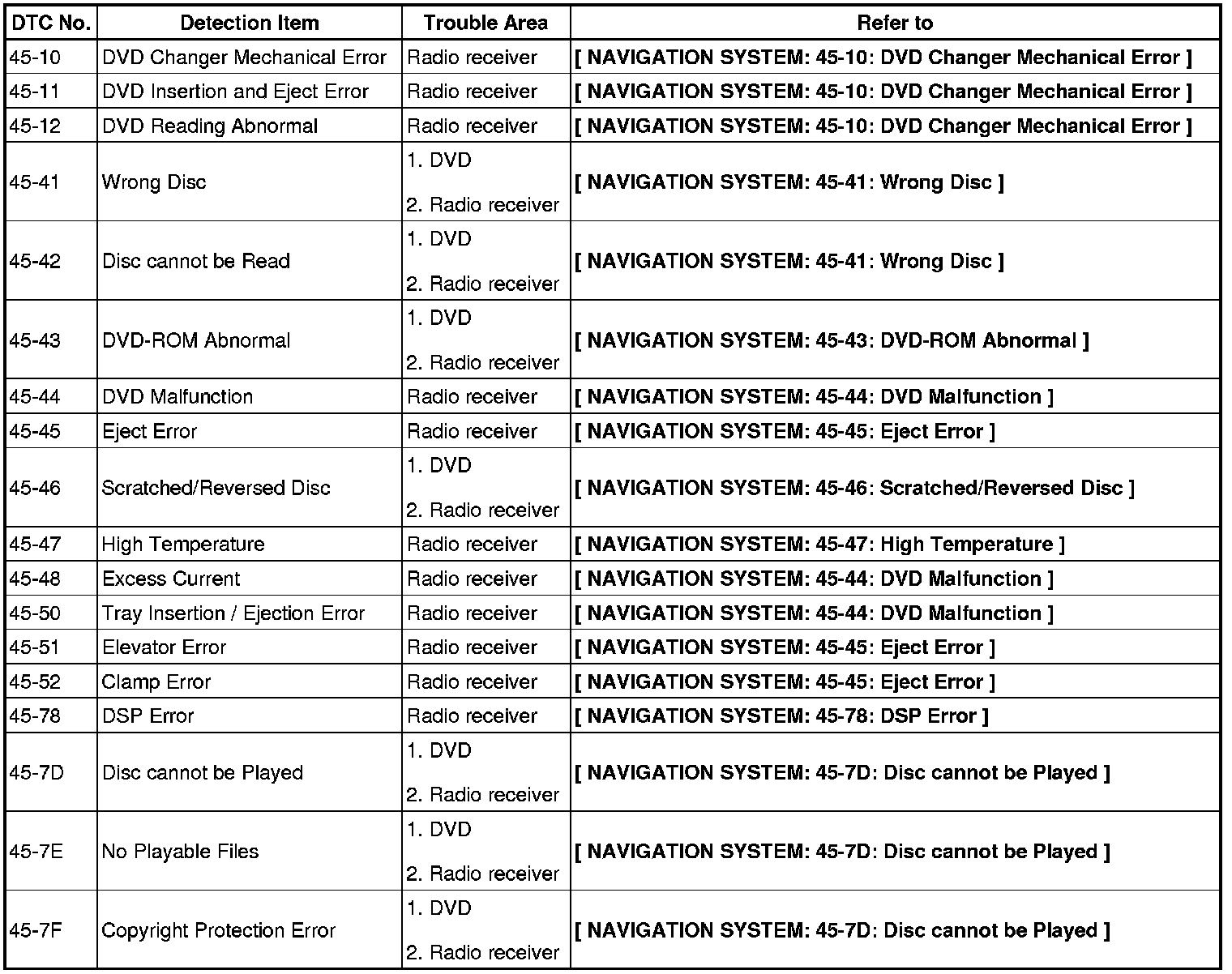

DTC 45-10-45-7F:
TELEPHONE
DTC 57-47:
NAVI

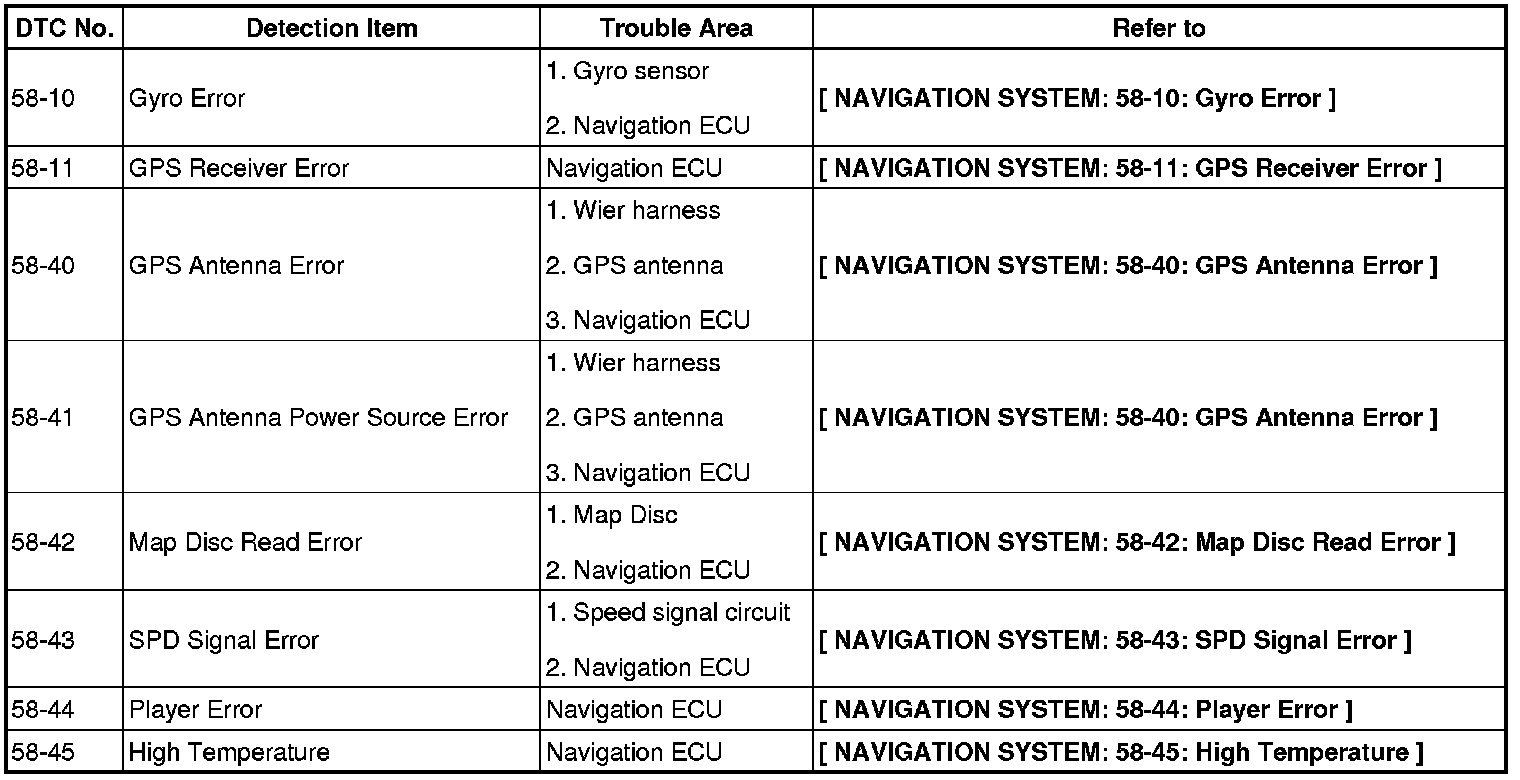

DTC 58-10-58-45:
RADIO UNIT

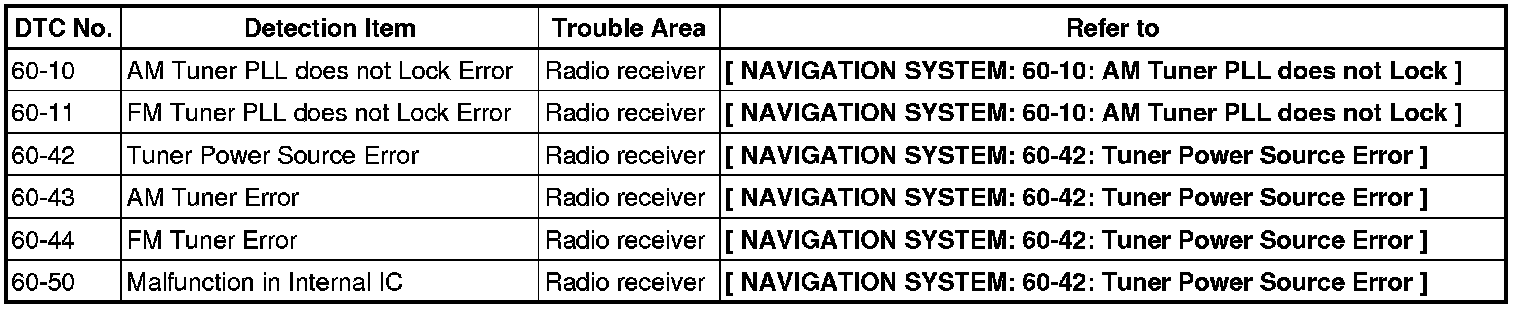

DTC 60-10-60-50:
IN-DASH CD CHANGER

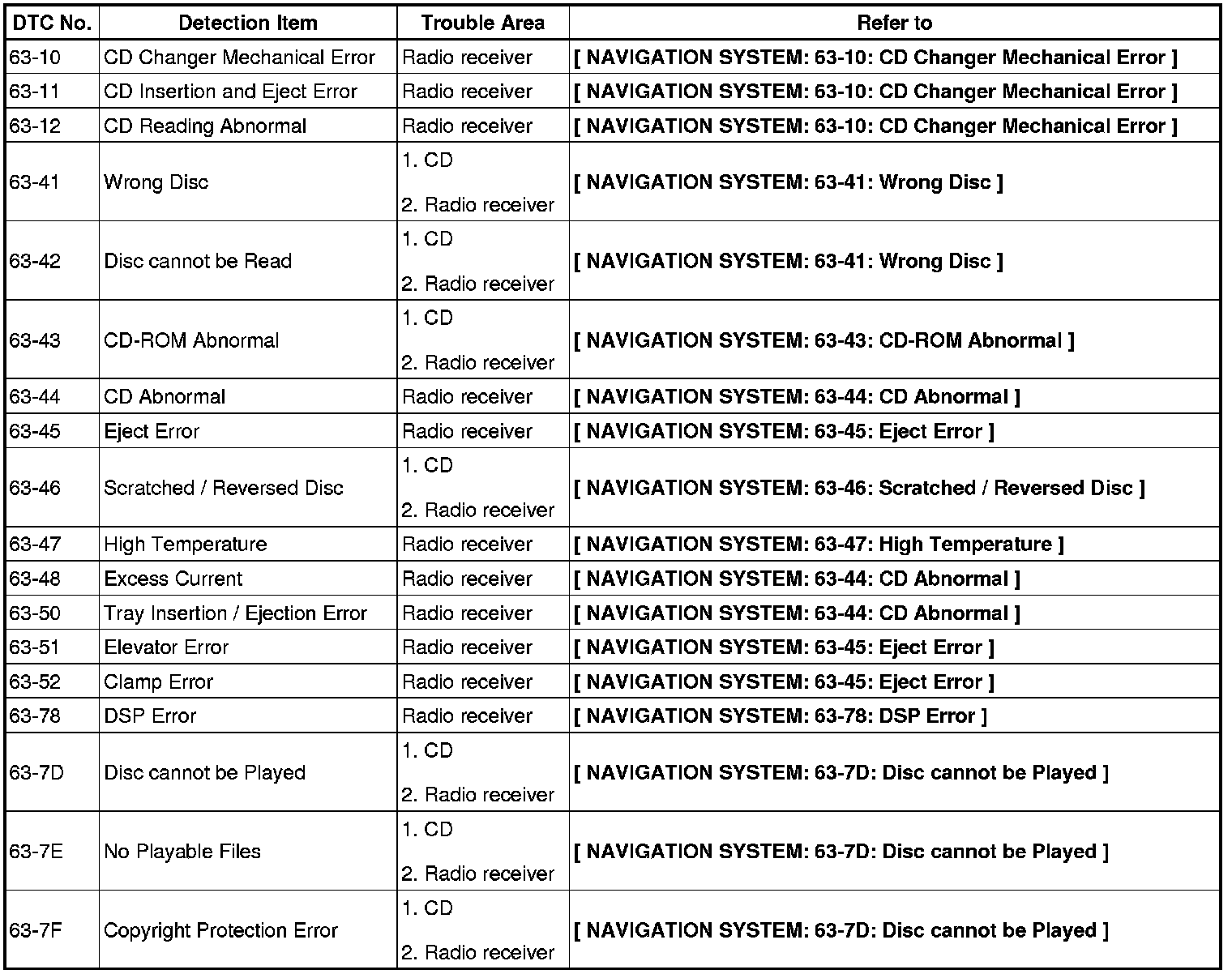

DTC 63-10-63-7F:
GPS
DTC 80-10-80-45:
CAMERA UNIT

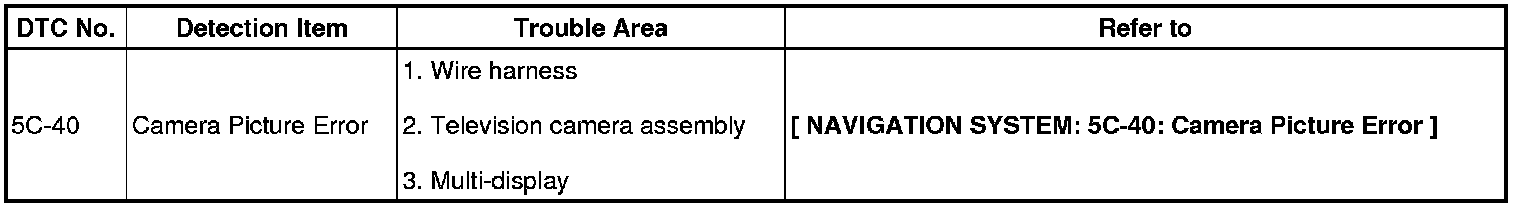

DTC 5C-40:
VOL
