LIGHTING: LIGHTING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

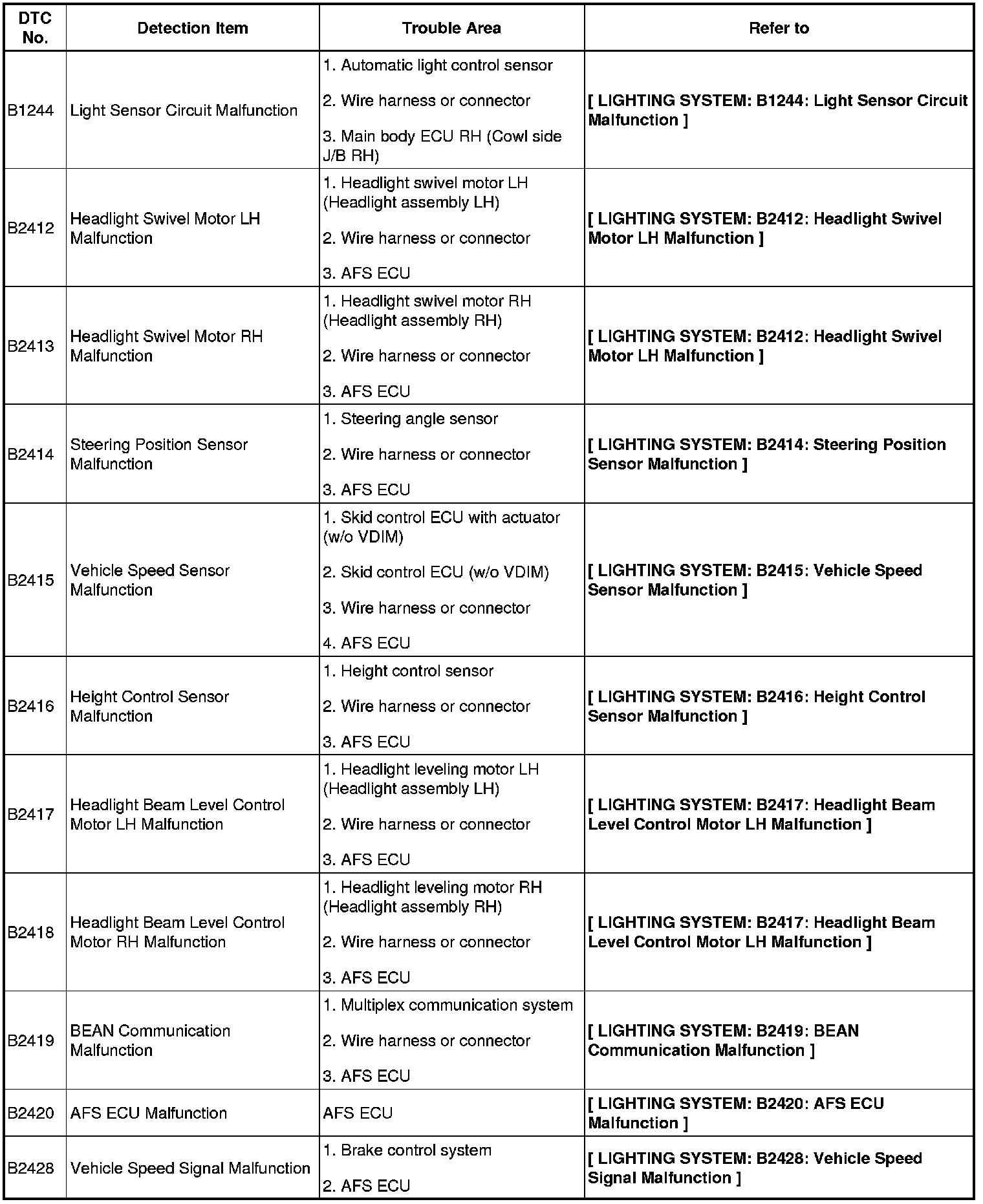

DIAGNOSTIC TROUBLE CODE CHART
DTC B1244-B2428:
