Engine Immobilizer System
ENGINE IMMOBILIZER: ENGINE IMMOBILIZER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART

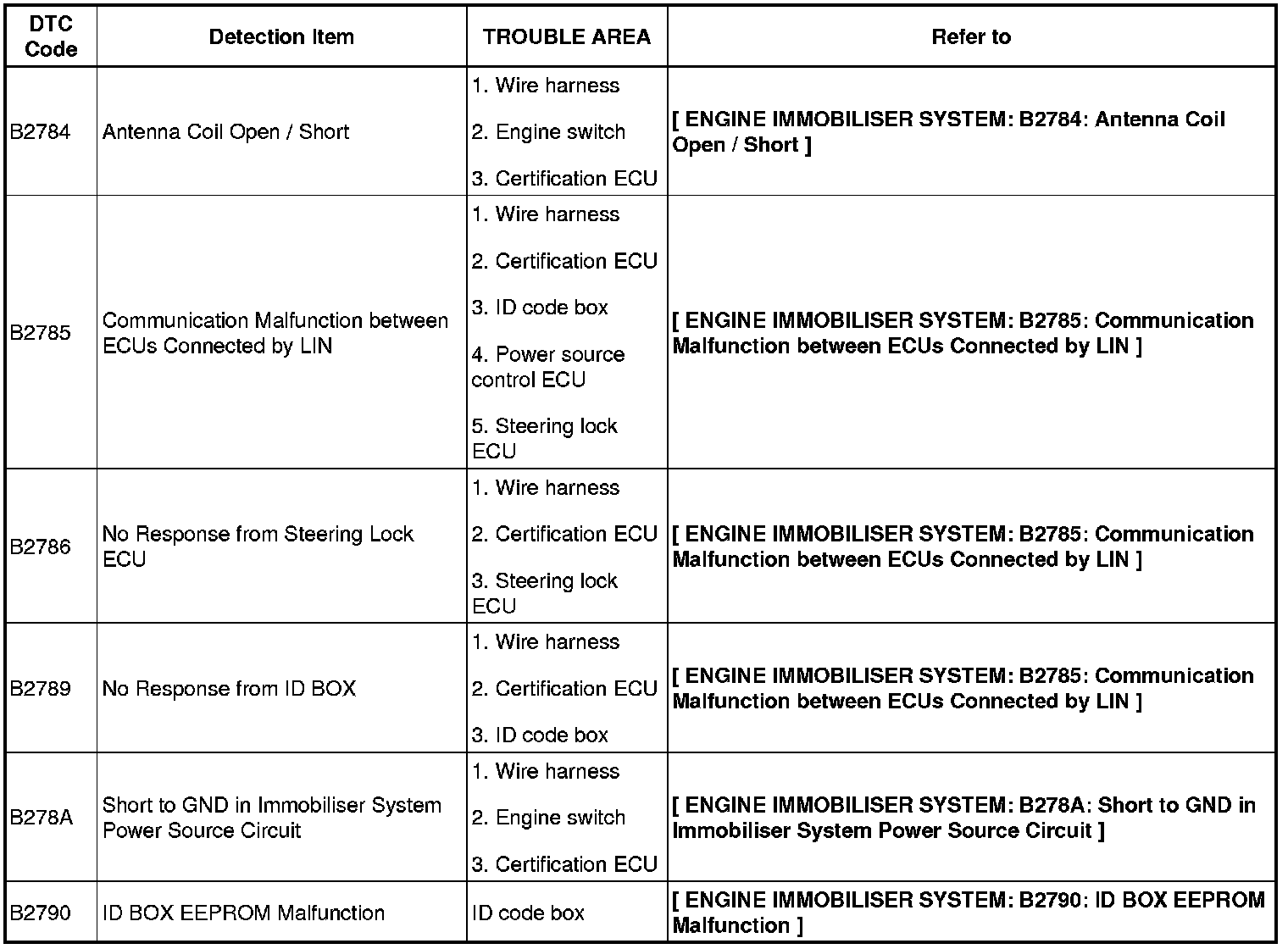

1. CERTIFICATION ECU DIAGNOSTIC TROUBLE CODE CHART
Certification ECU
DTC B2784-B2790:

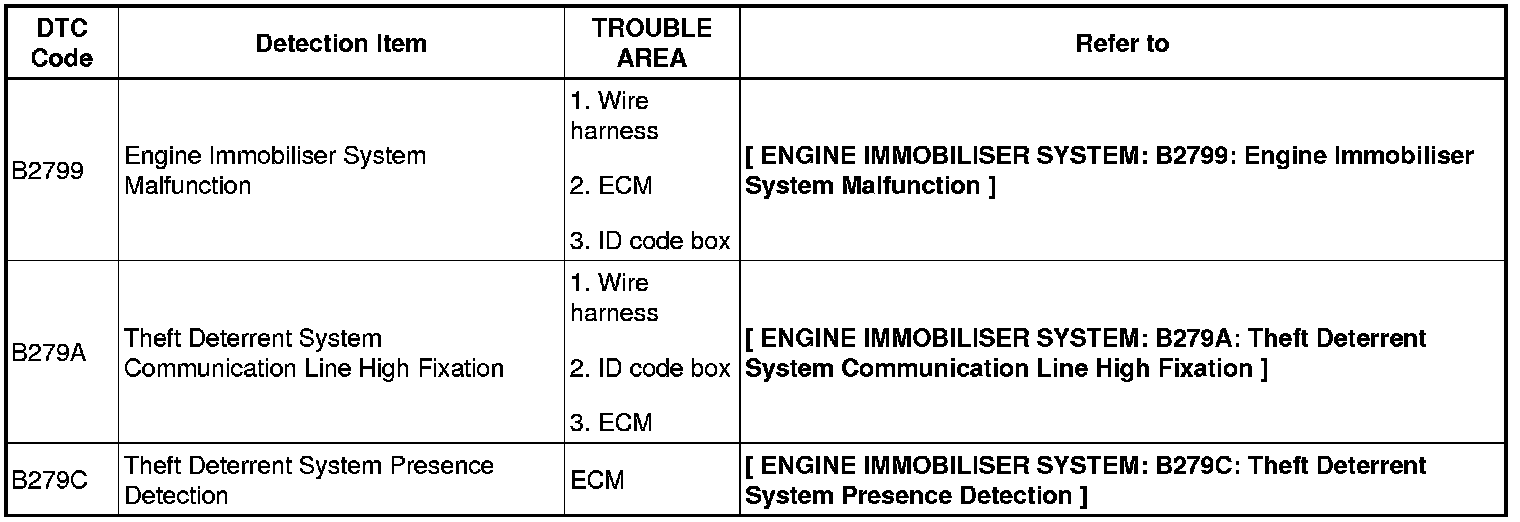

2. ECM DIAGNOSTIC TROUBLE CODE CHART
HINT:
The DTCs for the engine immobilizer system are specified above. If the other codes are output, check the DTC chart for the SFI system.
ECM
