Home >> Lexus >> 2009 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Electronic Power Steering System

Electronic Power Steering System








POWER STEERING: ELECTRONIC POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

ELECTRONIC POWER STEERING SYSTEM DIAGNOSTIC TROUBLE CODE CHART

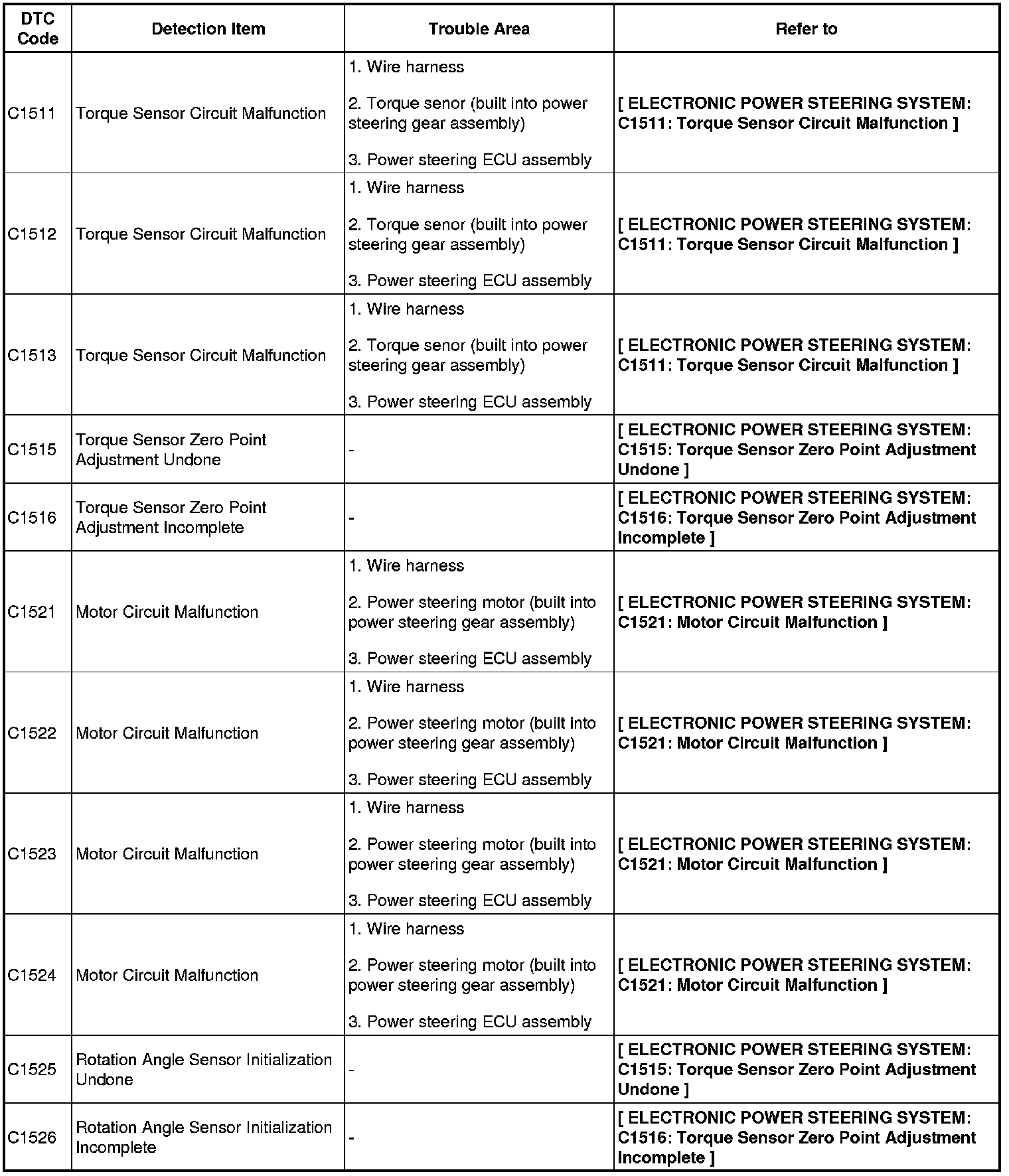

DTC C1511-C1526:

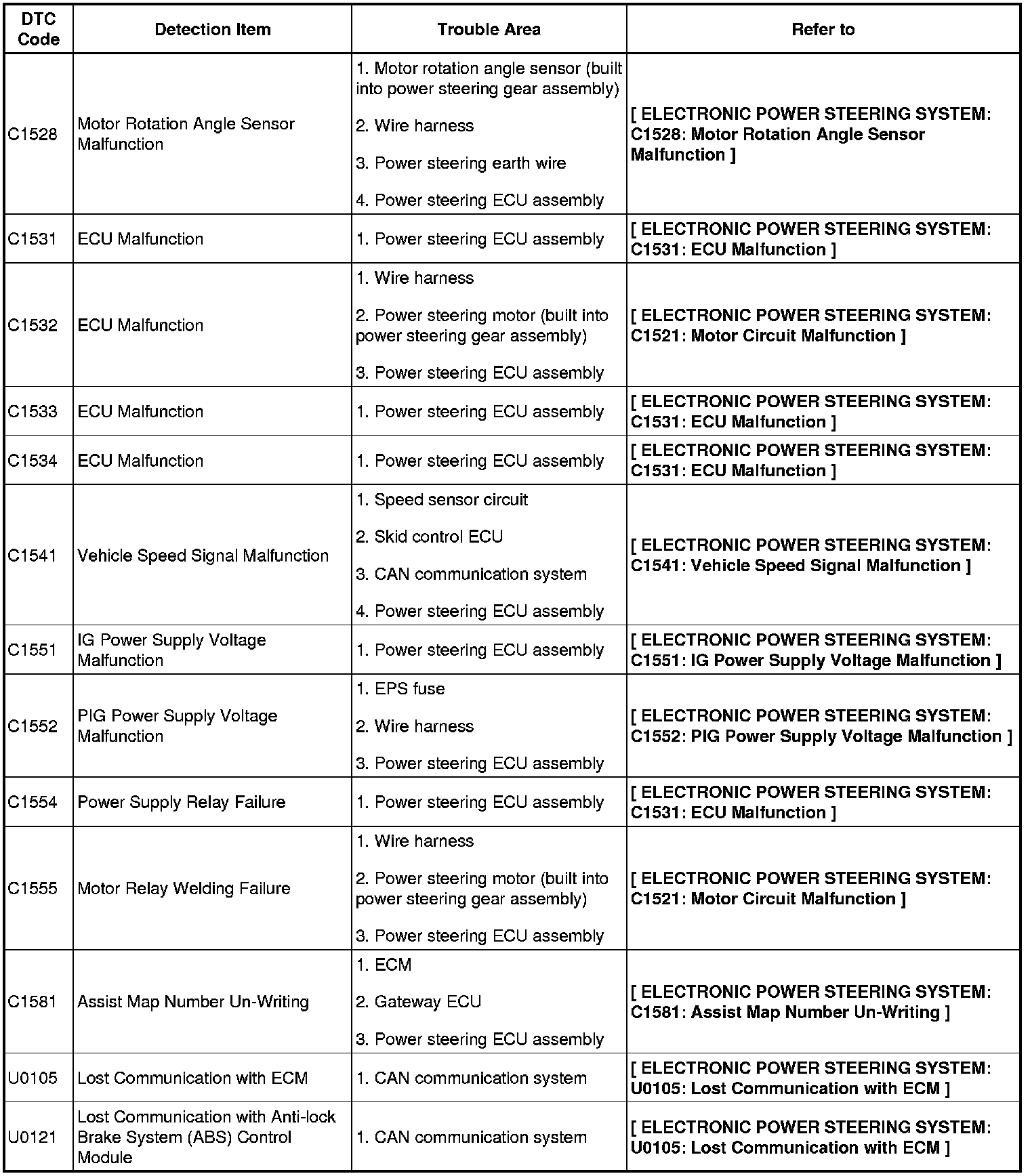

DTC C1528-C1581 U0105-U0121:
