Electric Steering Lock
STEERING COLUMN: ELECTRIC STEERING LOCK: DIAGNOSTIC TROUBLE CODE CHART

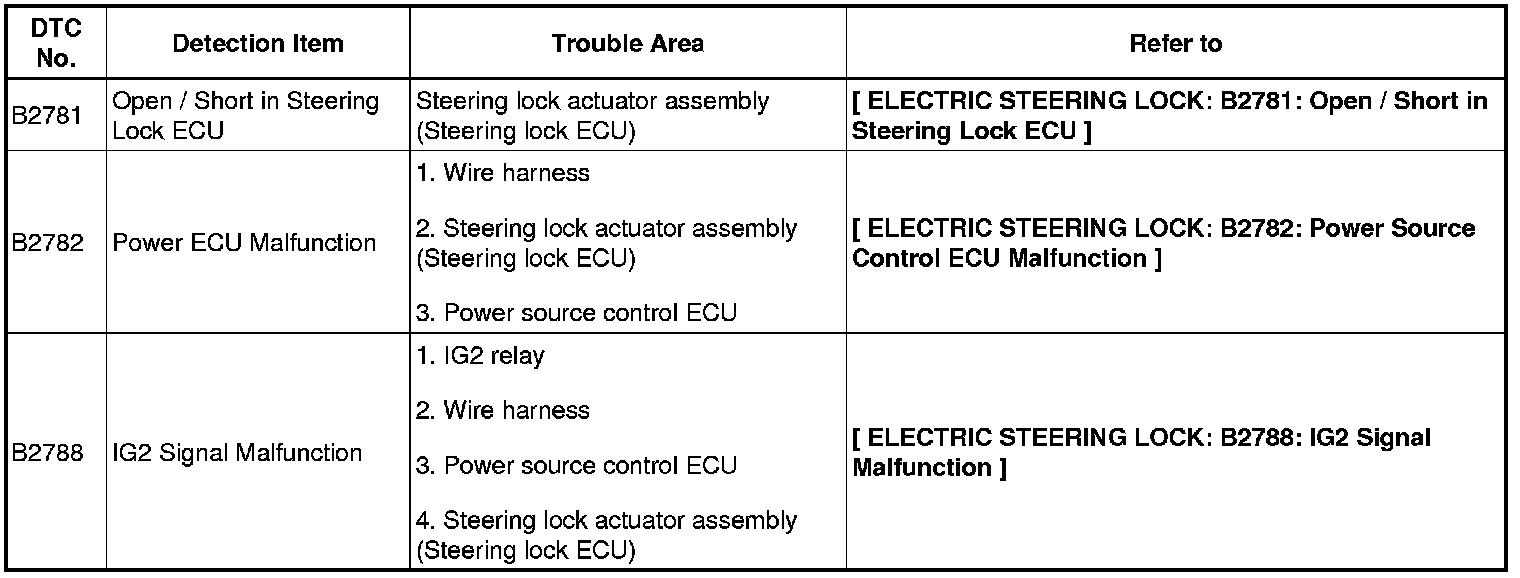

DIAGNOSTIC TROUBLE CODE CHART
If a trouble code is displayed during the DTC check, check the parts listed for that code in the table below and proceed to the appropriate page.
HINT:
The steering lock ECU does not store DTCs regarding the past problems.
ELECTRIC STEERING LOCK:
