Dynamic Radar Cruise Control System








CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, check the trouble areas listed for that code in the table below and proceed to the appropriate page.

Dynamic Radar Cruise Control System:

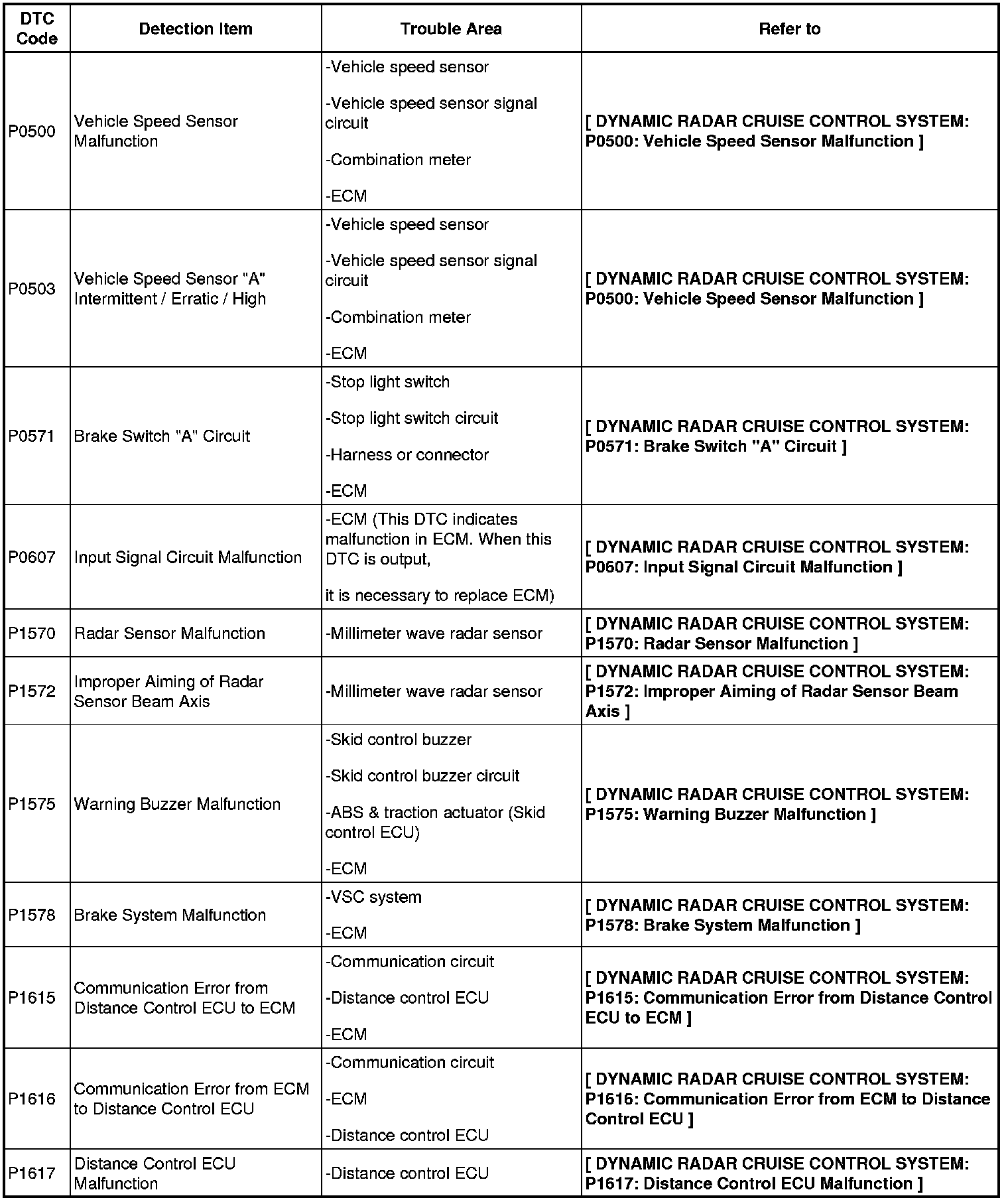

DTC P0500-P1617:

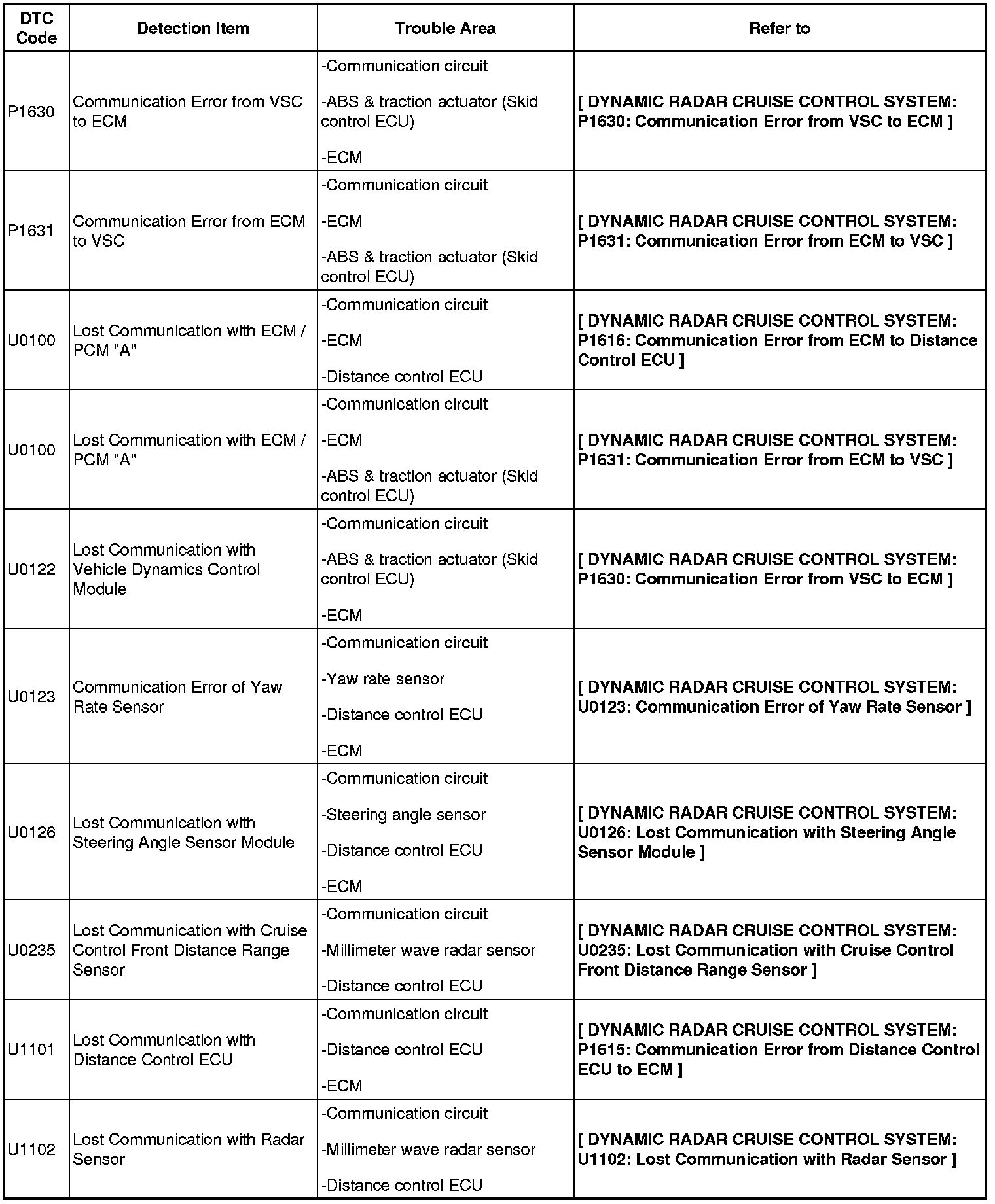

DTC P1630-P1631/U0100-U1102:
