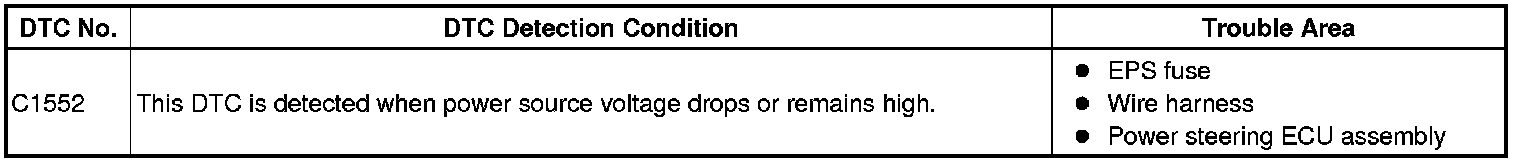

DTC C1552 - PIG Power Supply Voltage Malfunction

DESCRIPTION

This circuit supplies power to drive the power steering motor.

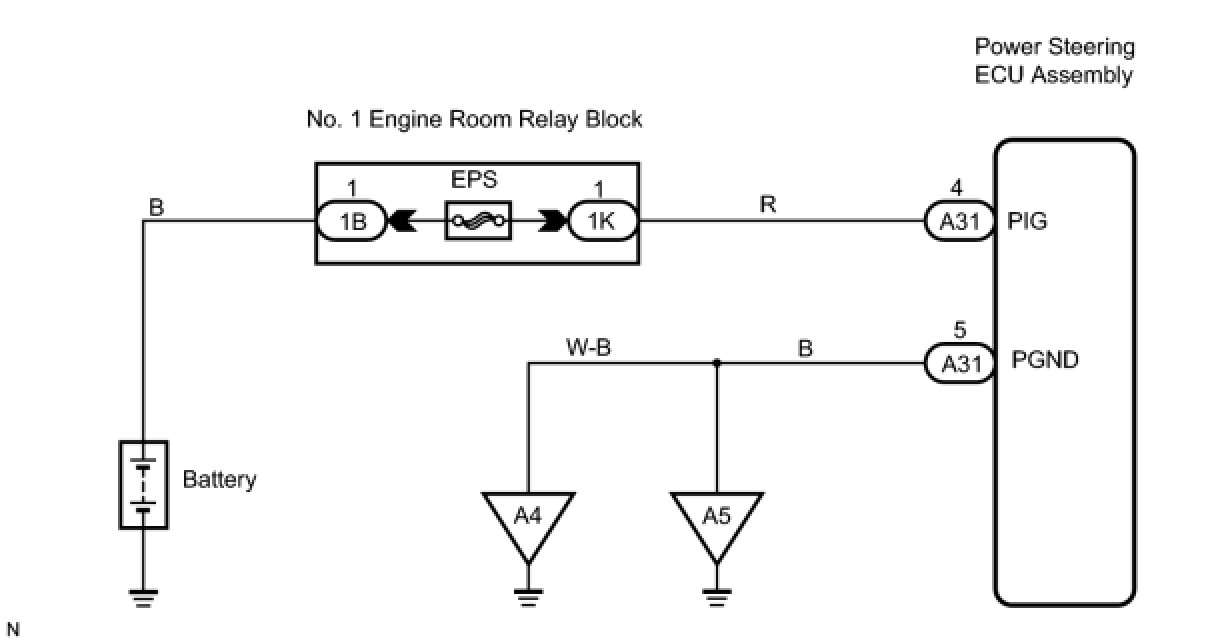

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (EPS FUSE)
(a) Remove the EPS fuse from the No. 1 engine room relay block.
(b) Check for continuity of the EPS fuses.
OK:
Continuity
NG -- REPLACE FUSE
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (POWER STEERING ECU ASSEMBLY - BATTERY)

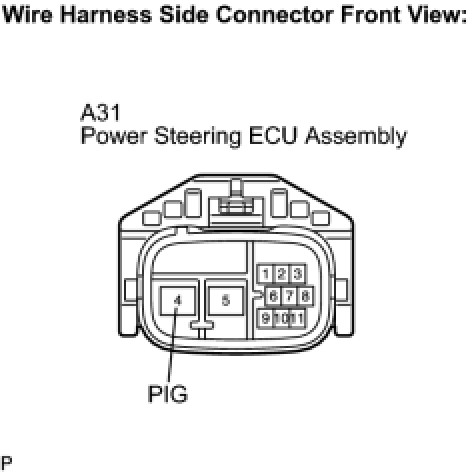

(a) Disconnect the A31 connector from the power steering ECU assembly.
(b) Measure the voltage according value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

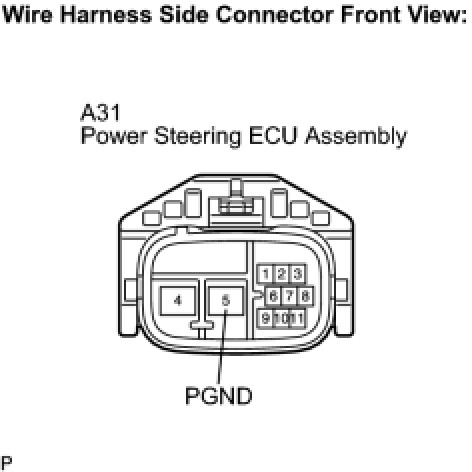

3. CHECK HARNESS AND CONNECTOR (POWER STEERING ECU ASSEMBLY - BODY GROUND)




(a) Measure the resistance according value(s) in the table below.
Standard resistance:





NOTE:
If replacing the power steering ECU assembly, initialize the rotation angle sensor value and calibrate the torque sensor zero point Electronic Power Steering System.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE POWER STEERING ECU ASSEMBLY
