C1428

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1428: Motor Circuit Malfunction

DTC C1428 - Motor Circuit Malfunction

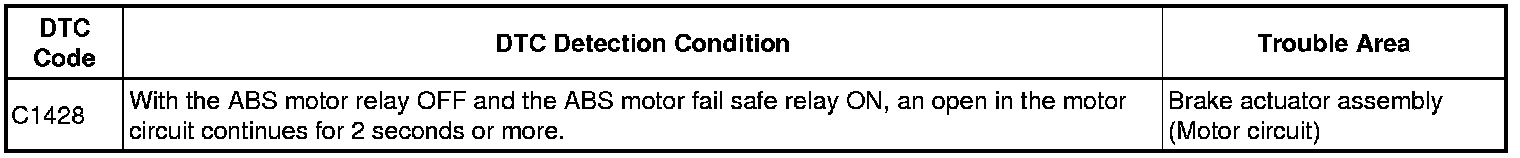

DESCRIPTION





WIRING DIAGRAM





INSPECTION PROCEDURE
NOTE:
When replacing the brake actuator assembly, perform zero point calibration and store system information Programming and Relearning.

PROCEDURE

1. REPLACE BRAKE ACTUATOR ASSEMBLY
(a) Replace the brake actuator assembly Removal.
NEXT -- END
