B2428

LIGHTING: LIGHTING SYSTEM: B2428: Vehicle Speed Signal Malfunction

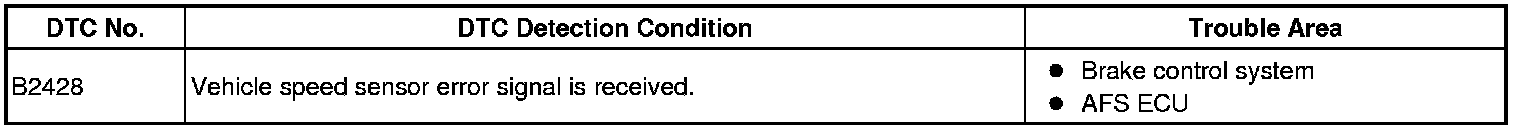

DTC B2428 - Vehicle Speed Signal Malfunction

DESCRIPTION

When the vehicle speed sensor is malfunctioning, the AFS ECU receives a vehicle speed sensor error signal from the skid control ECU.






INSPECTION PROCEDURE

PROCEDURE

1. CHECK BRAKE CONTROL SYSTEM
NG -- REPAIR OR REPLACE BRAKE CONTROL SYSTEM
OK -- REPLACE AFS ECU
