B2001

PRE-COLLISION: PRE-COLLISION SYSTEM: B2001: Short to GND in Seat Belt Motor RH Circuit

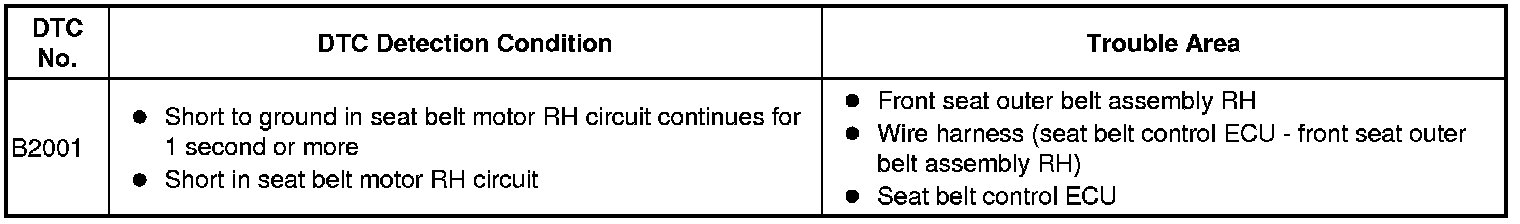

DTC B2001 - Short to GND in Seat Belt Motor RH Circuit

DESCRIPTION

The seat belt control ECU receives information from the distance control ECU using CAN communication and tightens the seat belt by operating the motor in the front seat outer belt assembly RH.
CAUTION:
The pretensioner is built into the front seat outer belt assembly RH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may deploy the pretensioner.





WIRING DIAGRAM





INSPECTION PROCEDURE
NOTE:
When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed Pre-Collision System.

PROCEDURE

1. INSPECT FRONT SEAT OUTER BELT ASSEMBLY RH

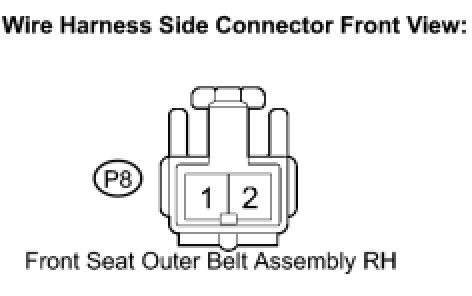

(a) Disconnect the P8 connector of the front seat outer belt assembly RH.
(b) Measure the resistance according to the value(s) in the table below.

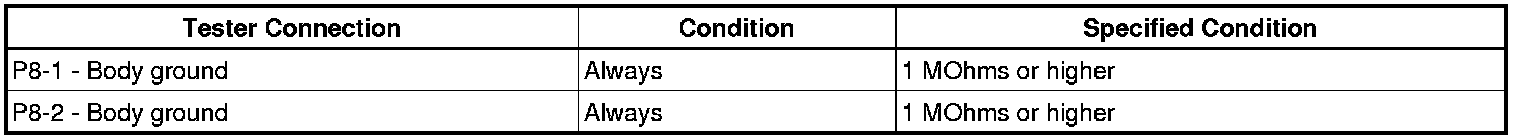

Standard resistance:





(c) Reconnect the P8 connector of the front seat outer belt assembly RH.
NG -- REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY RH - SEAT BELT CONTROL ECU)
(a) Disconnect the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
(b) Disconnect the P8 connector of the front seat outer belt assembly RH.




(c) Disconnect the Q58 connector of the seat belt control ECU.
(d) Measure the resistance according to the value(s) in the table below.

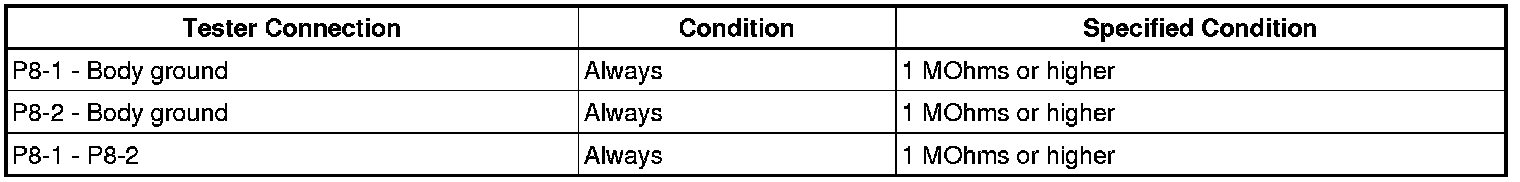

Standard resistance:





(e) Reconnect the Q58 connector of the seat belt control ECU and P8 connector of the front seat outer belt assembly RH.
(f) Connect the negative (-) battery terminal.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY RH - SEAT BELT CONTROL ECU)
OK -- REPLACE SEAT BELT CONTROL ECU
