B1243

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: B1243: GSW Terminal Circuit Malfunction

DTC B1243 - GSW Terminal Circuit Malfunction

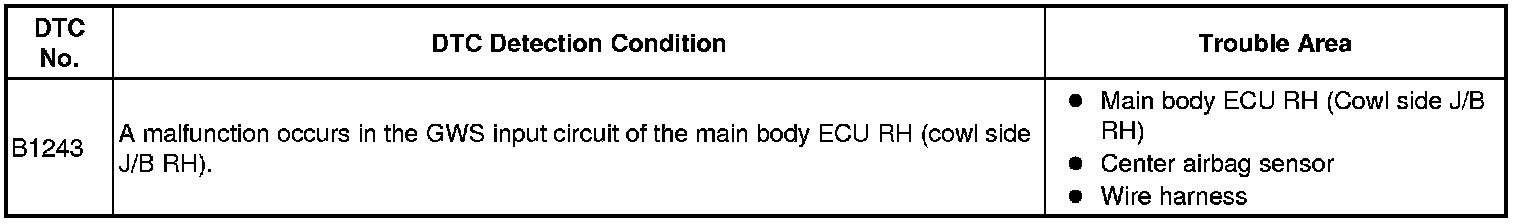

DESCRIPTION

If the collision door lock release function does not operate normally, or an open or short in the GWS input circuit of the main body ECU RH (cowl side J/B RH) is detected, DTC B1243 will be output.
HINT:
If DTC B1243 is output, the speed-sensitive automatic door lock function, shift-linked automatic door unlock function, and collision door lock release function will be prohibited.

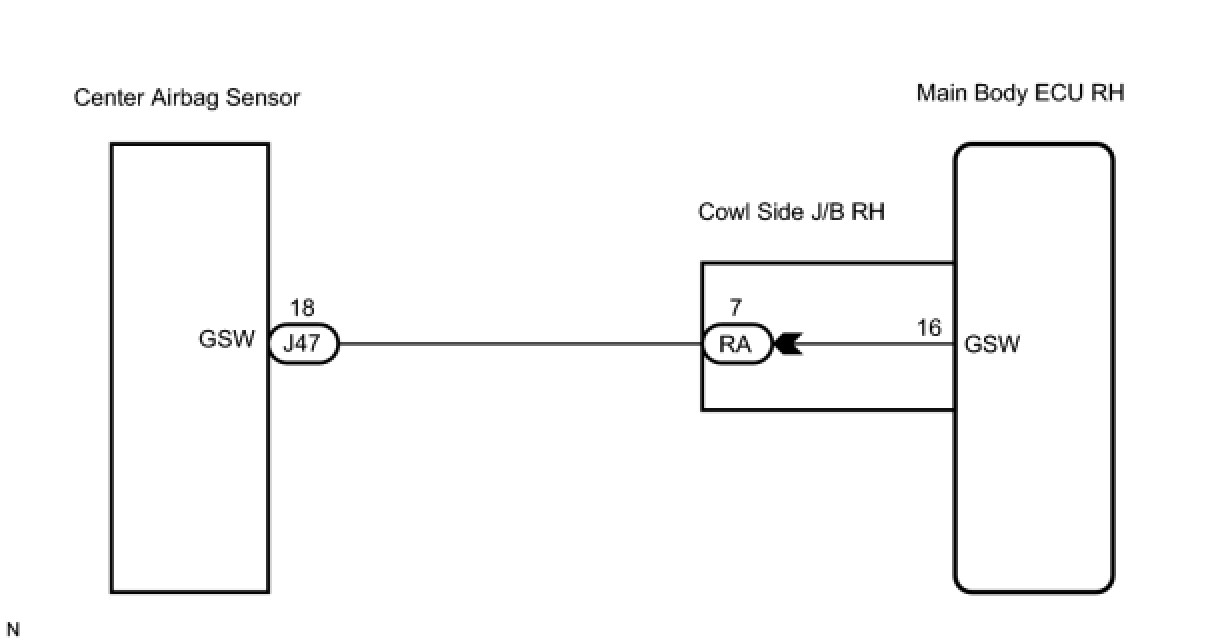

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (CENTER AIRBAG SENSOR - MAIN BODY ECU RH)




(a) Connect the negative (-) terminal cable to the battery, and wait for at least 90 seconds.

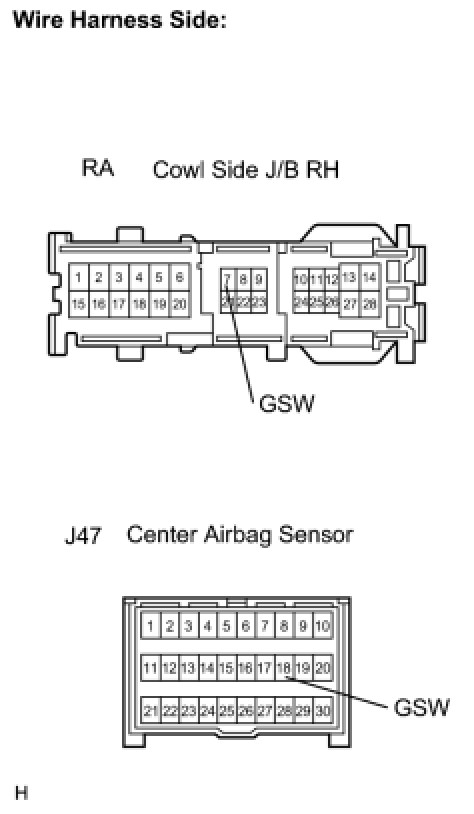

(b) Disconnect the center airbag sensor J47 and J/B RA connectors.
(c) Measure the resistance according to the value(s) in the table below.

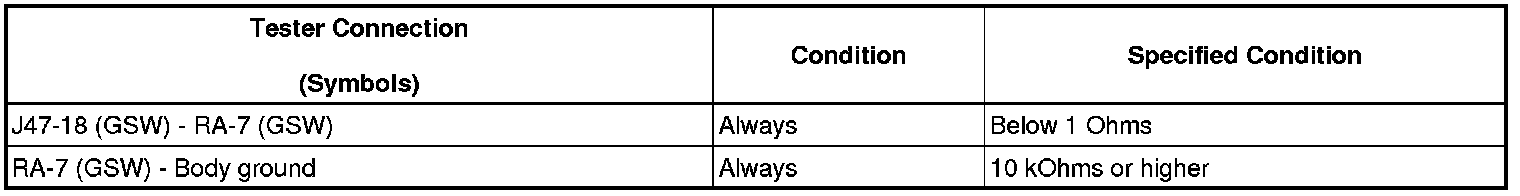

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. INSPECT COWL SIDE JUNCTION BLOCK RH (MAIN BODY ECU RH)

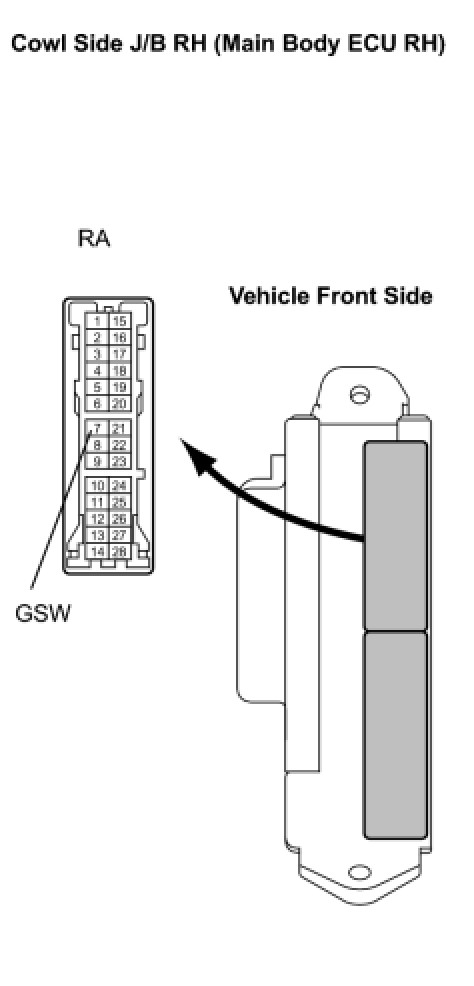

(a) Reconnect the J/B RA connector.
(b) Turn the engine switch on (IG).
(c) Measure the voltage according to the value(s) in the table below.

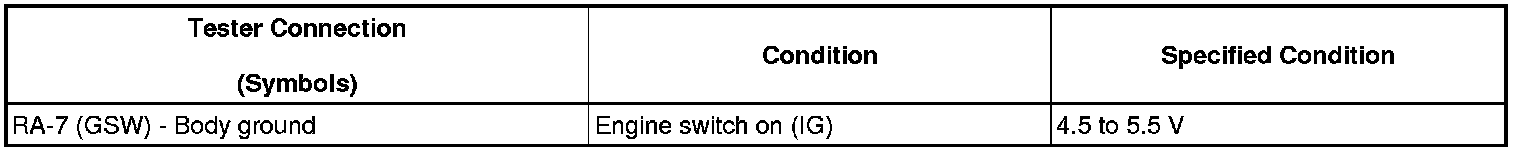

Standard voltage:






NG -- REPLACE COWL SIDE JUNCTION BLOCK RH
OK -- REPLACE CENTER AIRBAG SENSOR
