Windshield Washer Spray Nozzle: Adjustments

WIPER AND WASHER: WASHER NOZZLE: ADJUSTMENT

ADJUSTMENT

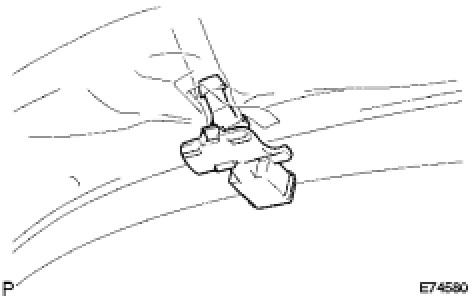

1. ADJUST WASHER NOZZLE

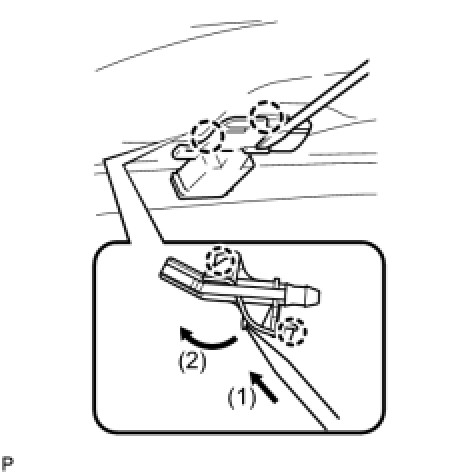

(a) Using a screwdriver, disengage the 2 claws and separate the washer nozzle.
NOTE:
Be careful not to damage the windshield.





(b) Remove the washer nozzle from the washer hose.
NOTE:
Washer nozzles cannot be reused.

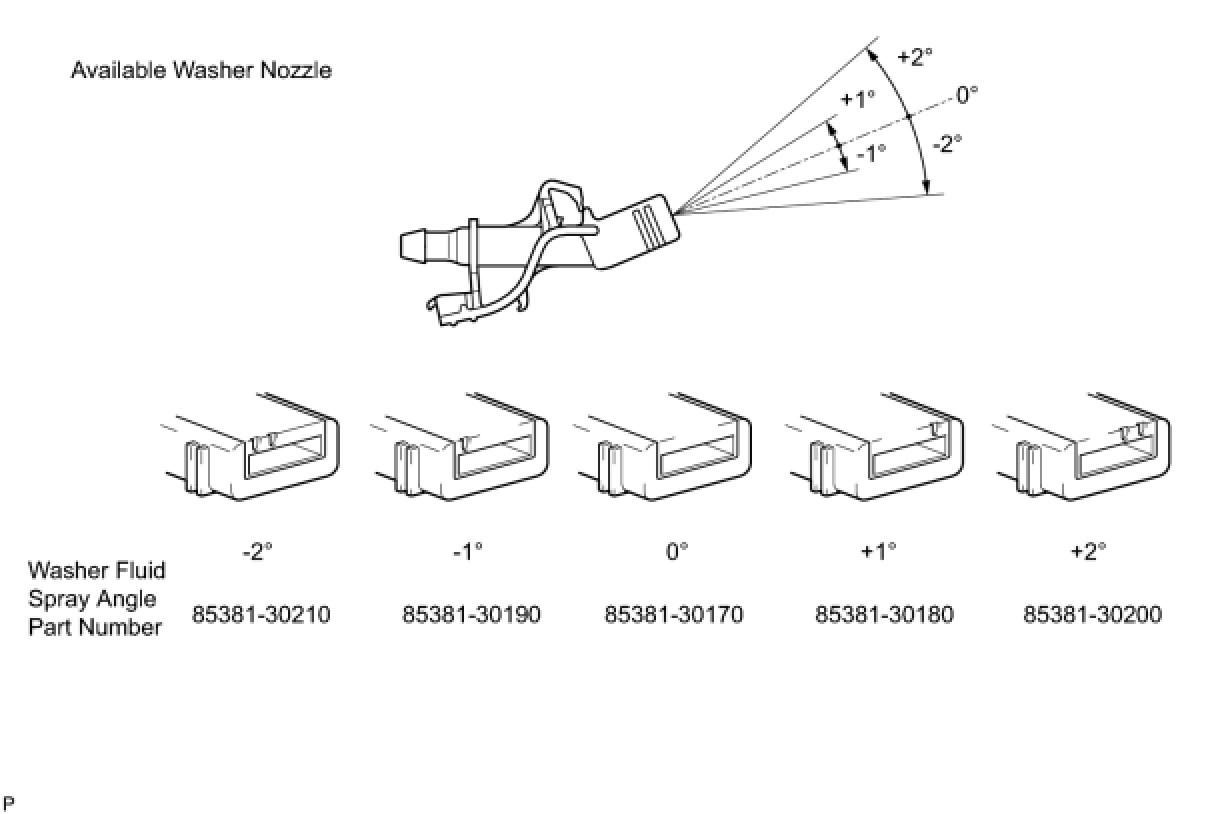

(c) Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle with the selected one.
