UF1AE TRANSFER: TRANSFER VALVE BODY ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL TRANSFER CONTROL SOLENOID Reassembly
2. INSTALL TRANSFER VALVE BODY ASSEMBLY

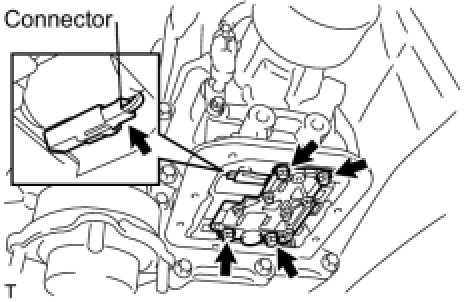

(a) Connect the transfer wire connector to the transfer control solenoid.
(b) Install the transfer upper valve body with the 4 bolts.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
3. INSTALL TRANSFER OIL PAN Installation
4. INSTALL TRANSFER DYNAMIC DAMPER Installation
5. INSTALL ENGINE REAR MOUNTING MEMBER Installation
6. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR Installation
7. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation
8. INSTALL HEATED OXYGEN SENSOR Installation
9. INSTALL FRONT CENTER FLOOR BRACE Installation
10. INSTALL REAR NO. 1 FLOOR PANEL BRACE Installation
11. ADD AUTOMATIC TRANSMISSION FLUID Installation
12. CHECK FOR EXHAUST GAS LEAKS
