Pinout Values and Diagnostic Parameters

UF1AE TRANSFER: FOUR WHEEL DRIVE CONTROL SYSTEM: TERMINALS OF ECU

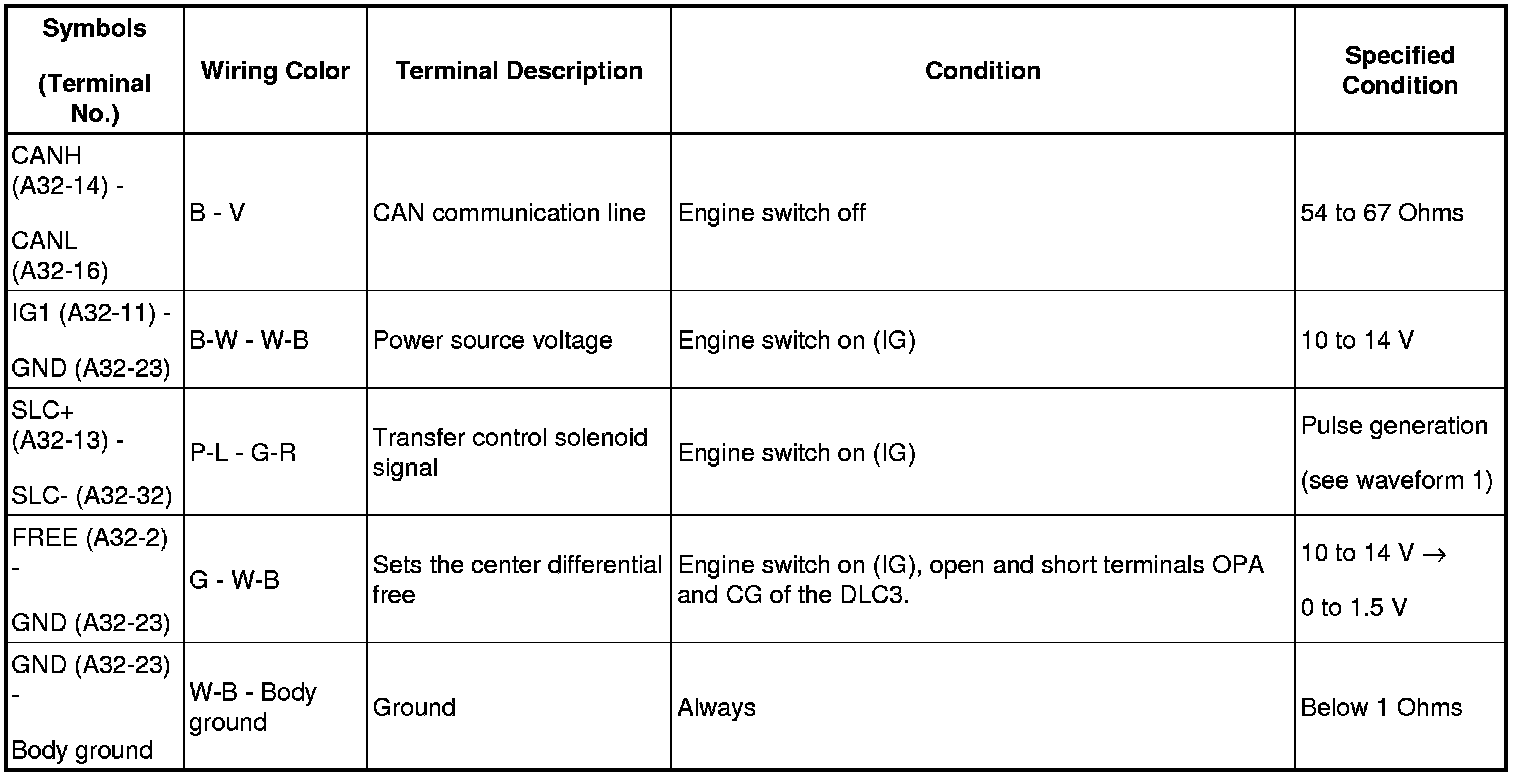

TERMINALS OF ECU
HINT:

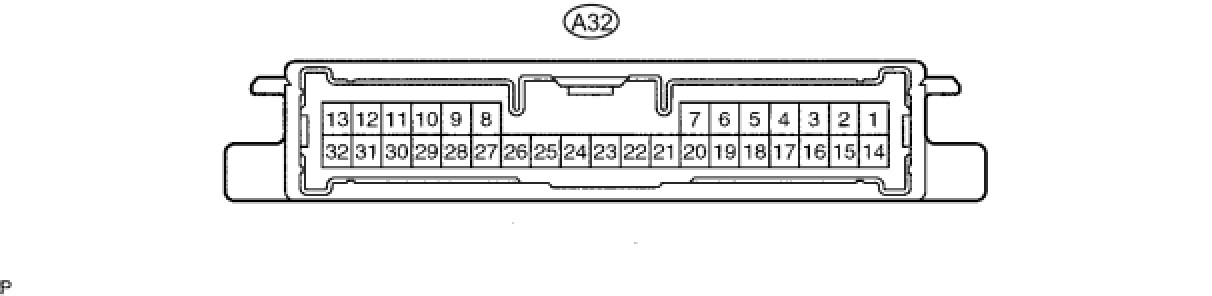

Inspect the connector from the back side while the connector is connected.

1. 4WD CONTROL ECU:

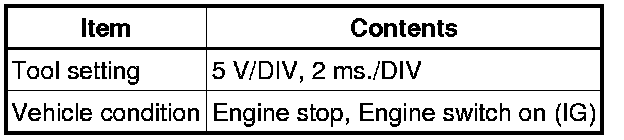

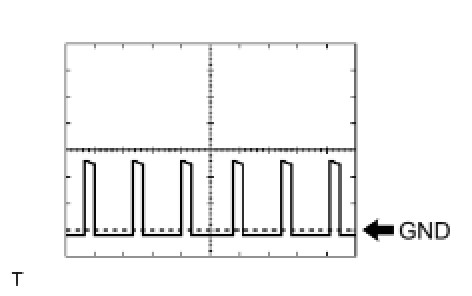

(a) Waveform 1 (Reference):
