UF1AE TRANSFER: TRANSFER WIRE: REMOVAL

REMOVAL

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal
2. REMOVE REAR NO. 1 FLOOR PANEL BRACE Removal
3. REMOVE FRONT CENTER FLOOR BRACE Removal
4. DISCONNECT HEATED OXYGEN SENSOR Removal
5. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal
6. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR Removal
7. SUPPORT AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY Removal
8. REMOVE ENGINE REAR MOUNTING MEMBER





(a) Remove the 4 bolts, 3 nuts and engine rear mounting member.
9. REMOVE TRANSFER DYNAMIC DAMPER





(a) Remove the 2 bolts and the transfer dynamic damper.
10. REMOVE TRANSFER OIL PAN





(a) Remove the 9 bolts.

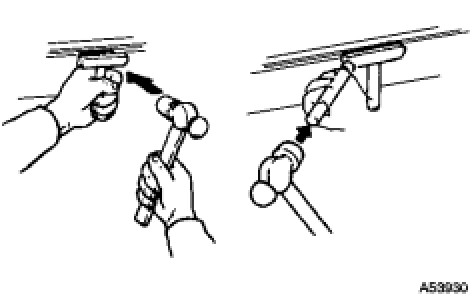

(b) Insert the blade of oil pan seal cutter between the transfer oil pan and transfer case. Cut through the sealer and remove the transfer oil pan.
NOTE:
Do not damage the contact surface of the transfer oil pan.

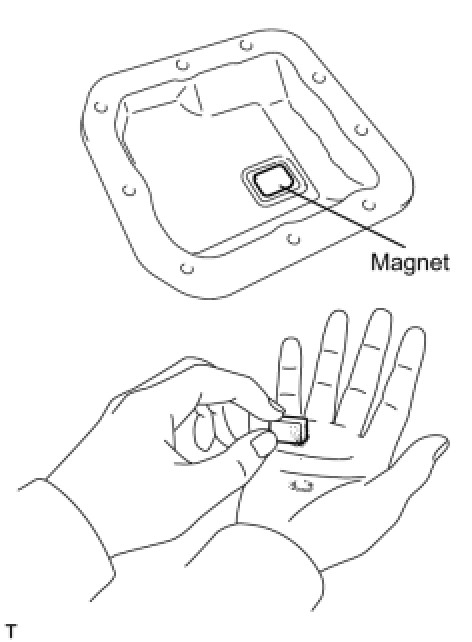

(c) Remove the transfer oil cleaner magnet from the transfer oil pan.
- Clean the inside of the oil pan thoroughly, removing all metal shavings, sludge and any other foreign objects.
- Remove any metal shavings from the magnet.

11. REMOVE TRANSFER WIRE





(a) Remove the 4 bolts and the transfer upper valve body.
(b) Disconnect the 2 transfer wire connectors.
(c) Remove the bolt and the transfer wire.
