Propeller Shaft System

PROPELLER SHAFT: PROPELLER SHAFT SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

Use the table below to help find the cause of the problem. Check each part. If necessary, replace these parts.

FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)

Symptom Chart (Part 1):

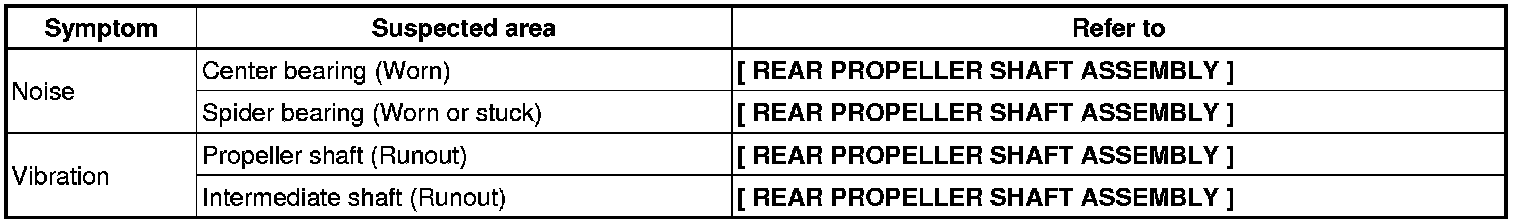

REAR PROPELLER SHAFT ASSEMBLY (2GR-FSE)

Symptom Chart (Part 2):

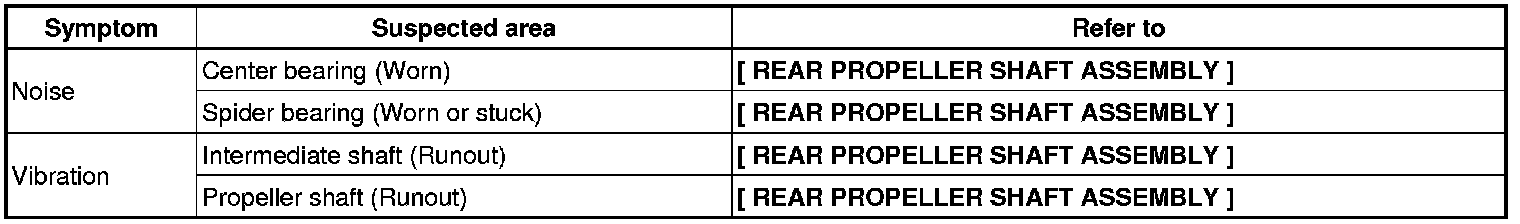

REAR PROPELLER SHAFT ASSEMBLY (4GR-FSE)

Symptom Chart (Part 3):
