Components








PROPELLER SHAFT: REAR PROPELLER SHAFT ASSEMBLY (for 4GR-FSE): COMPONENTS

COMPONENTS

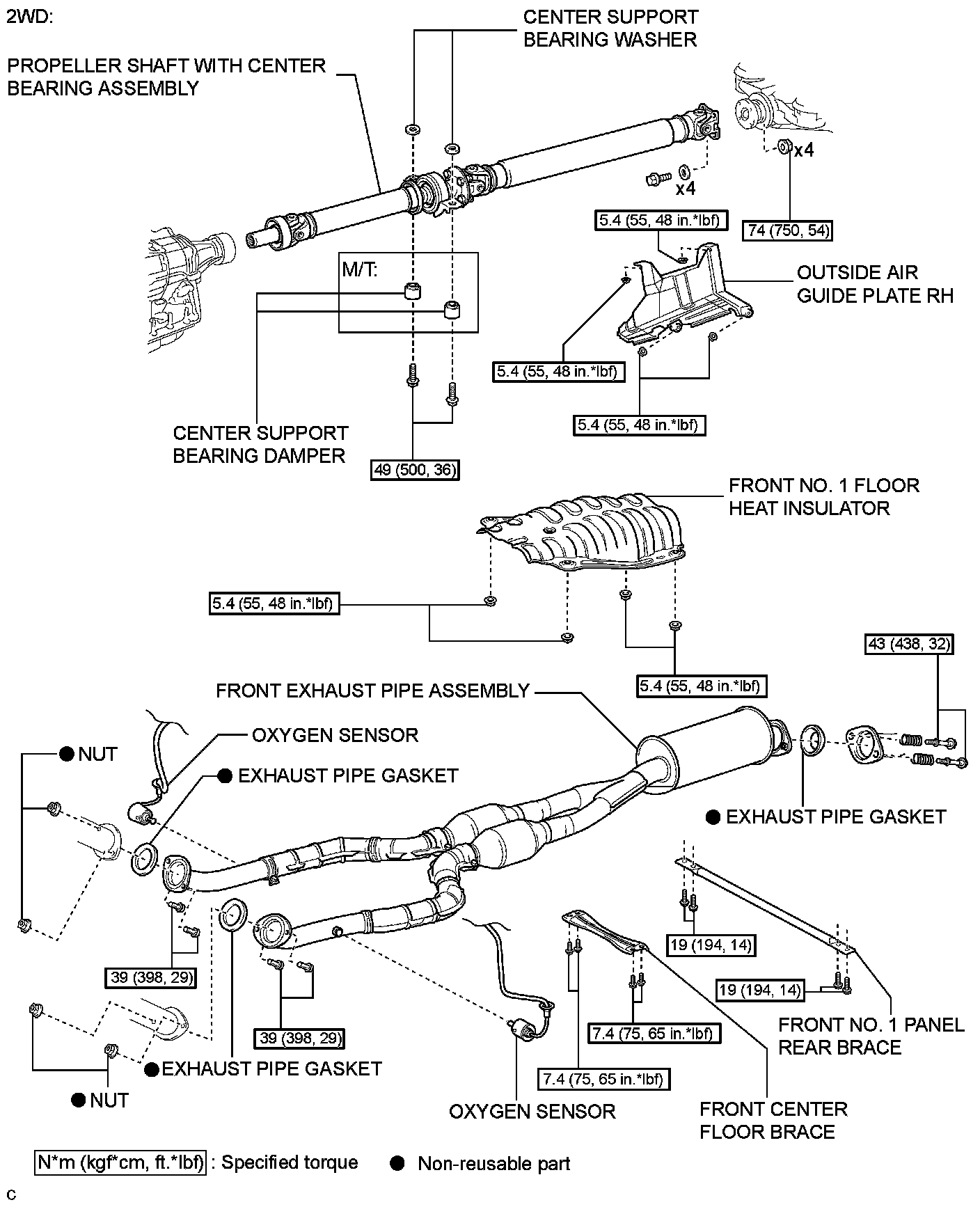

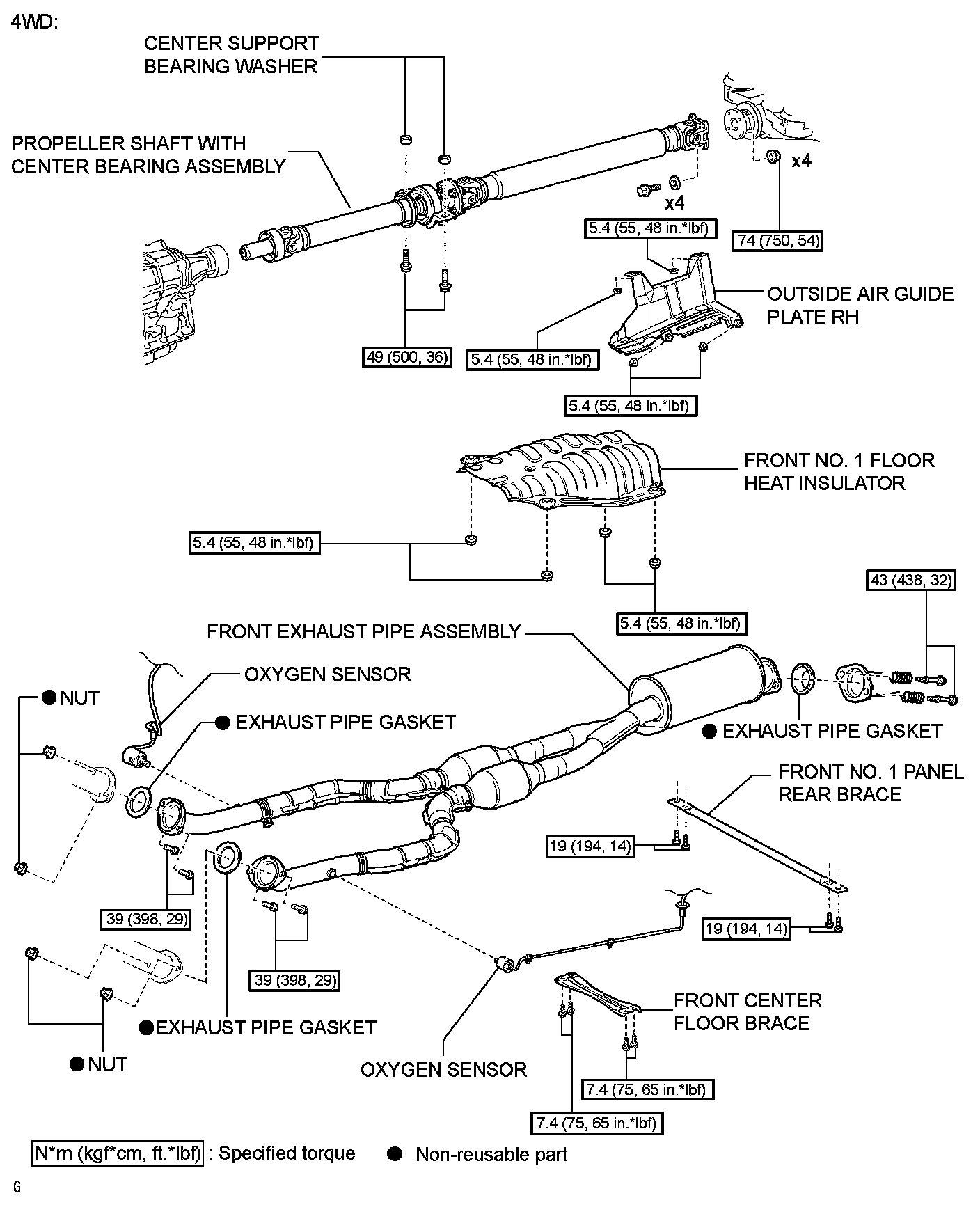

ILLUSTRATION
