PROPELLER SHAFT: FRONT PROPELLER SHAFT ASSEMBLY (for 4WD): REMOVAL

REMOVAL

1. REMOVE FRONT EXHAUST PIPE ASSEMBLY
Removal
2. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

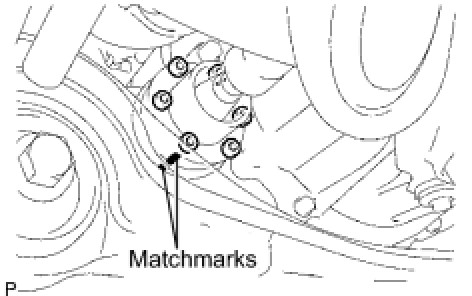

(a) Put matchmarks on the transfer companion flange and the front propeller shaft.

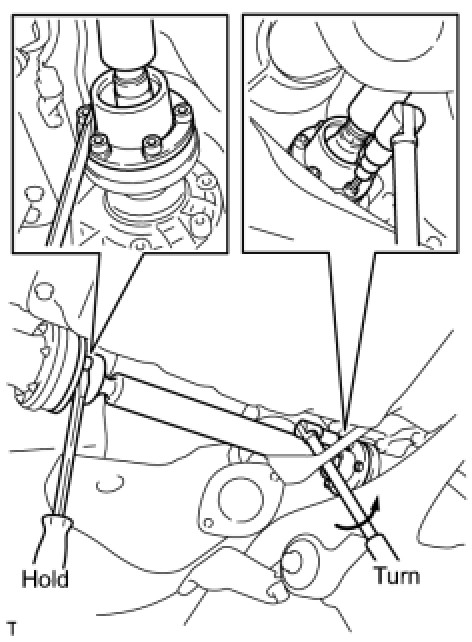

(b) Using a screwdriver or equivalent, hold the transfer companion flange.
(c) Using a socket hexagon wrench 6 mm, loosen the 6 bolts.
NOTE:
Be careful not to damage the front propeller shaft.

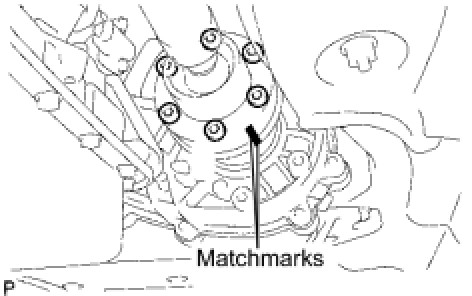

(d) Put matchmarks on the front differential companion flange and the front propeller shaft.

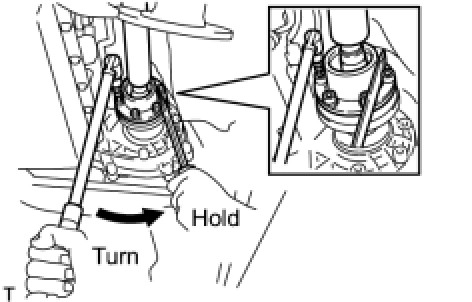

(e) Using a screwdriver or equivalent, hold the transfer companion flange.
(f) Using a socket hexagon wrench 6 mm, loosen the 6 bolts.
NOTE:
Be careful not to damage the front propeller shaft.

(g) Remove the 12 bolts, 4 universal joint washers and front propeller shaft assembly.
