DIFFERENTIAL: DIFFERENTIAL MOUNT CUSHION: INSTALLATION

INSTALLATION

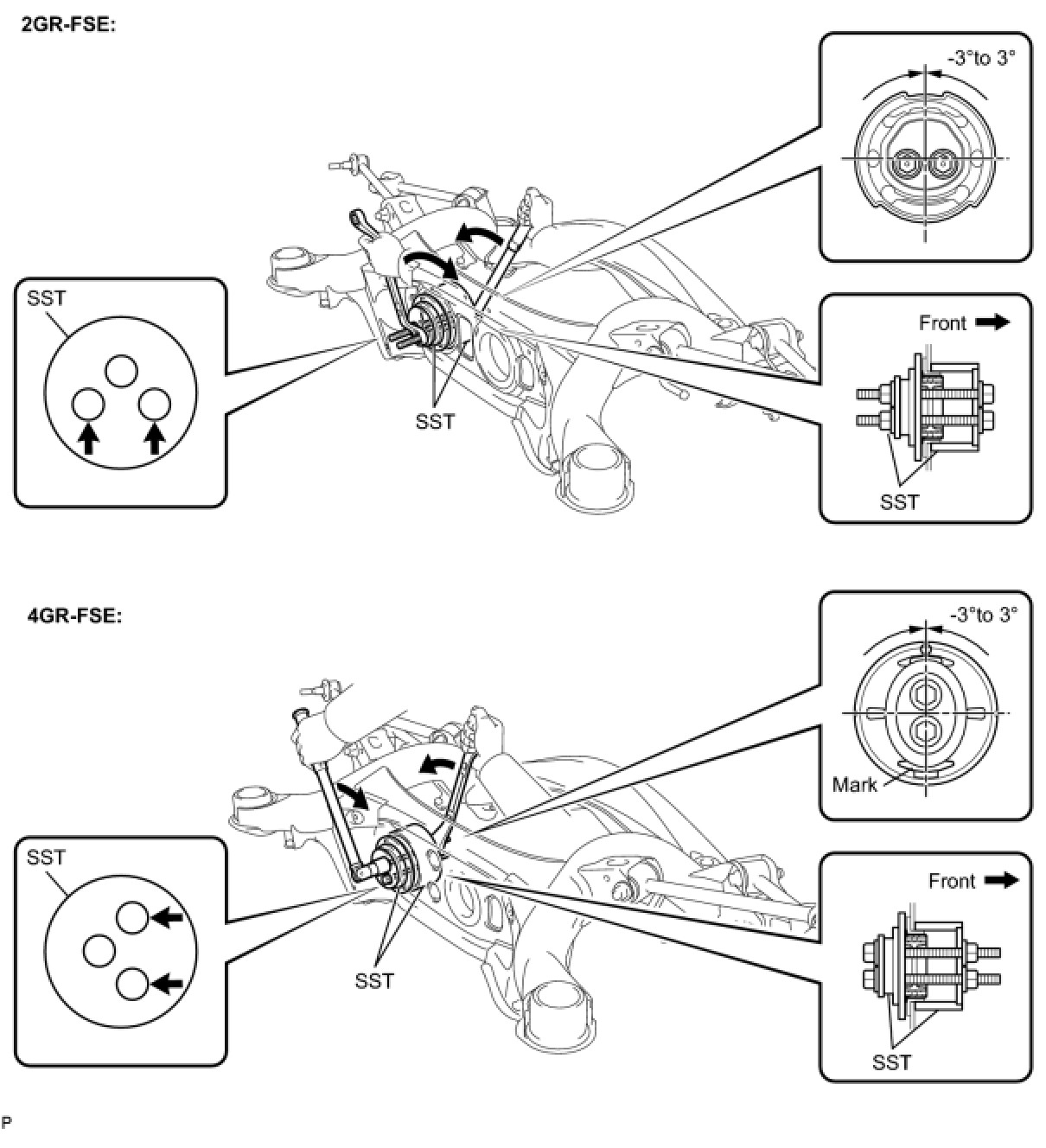

1. INSTALL NO. 1 REAR DIFFERENTIAL MOUNT CUSHION
(a) Using SST, install a new No. 1 rear differential mount cushion.





SST: 09570-24011
SST: 09316-12010
NOTICE:
- Temporarily install the mount cushion to the member in order to prevent it from tilting and install the SST.
- Be sure to use the correct combination of SST.
- Make sure that the SST contacts the entire circumference of the mount cushion.

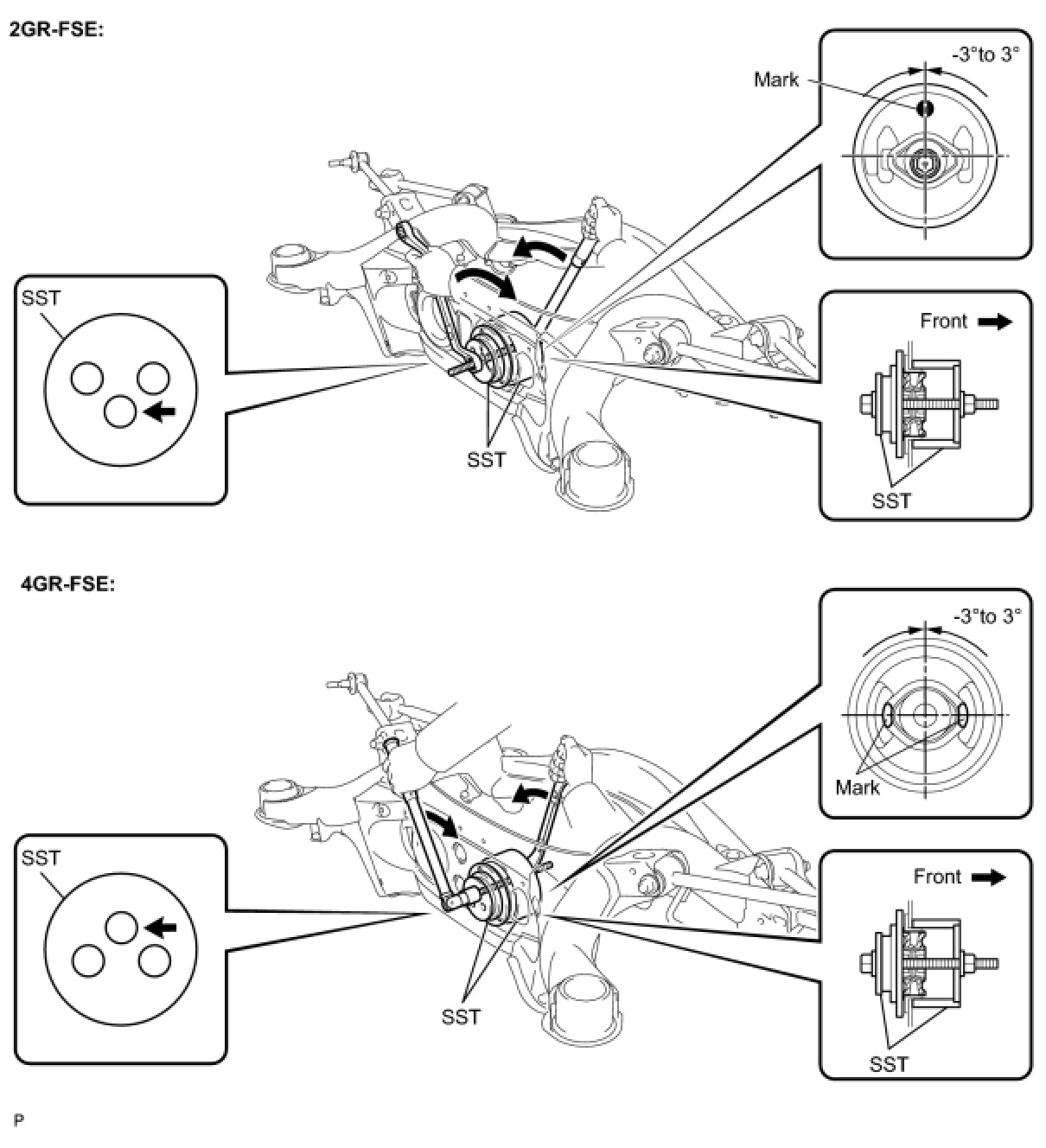

2. INSTALL NO. 2 REAR DIFFERENTIAL MOUNT CUSHION
(a) Using SST, install a new No. 2 rear differential mount cushion.





SST: 09570-24011
SST: 09316-12010
NOTICE:
- Temporarily install the mount cushion to the member in order to prevent it from tilting and install the SST.
- Be sure to use the correct combination of SST.
- Make sure that the SST contacts the entire circumference of the mount cushion.

3. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY
2GR-FSE: Installation
4GR-FSE: Installation
