Wiring Harness: Testing and Inspection

A760H AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSPECTION

INSPECTION

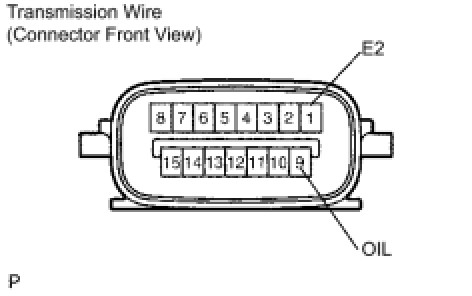

1. INSPECT TRANSMISSION WIRE





(a) Using an ohmmeter, measure the resistance between the terminals.

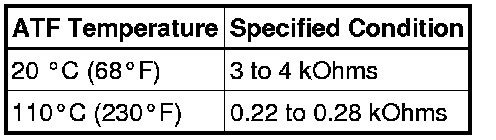

Standard resistance:
