Removal

SUSPENSION: REAR UPPER NO. 2 CONTROL ARM: REMOVAL

REMOVAL

1. REMOVE REAR WHEEL
2. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR Removal
3. SEPARATE REAR SHOCK ABSORBER WITH COIL SPRING Removal
4. REMOVE REAR UPPER NO. 2 CONTROL ARM





(a) Remove the nut on the axle carrier side.

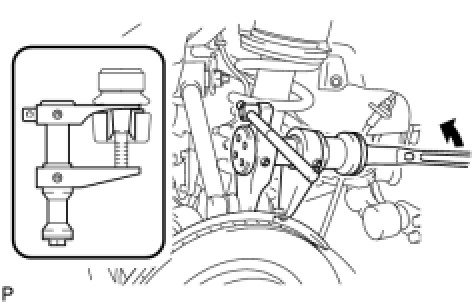

(b) Using SST, separate the rear upper No. 2 control arm.
SST: 09628-00011
- Securely tie the string of the SST to the vehicle.
- Do not damage the dust cover.
- Securely set the SST on the spacer of the axle carrier.
- If the spacer of the axle carrier comes off, replace the axle carrier with a new one.





(c) Remove the bolt, nut, washer, and rear upper No. 2 control arm.
HINT:
Push the axle carrier downward.
