Pinout Values and Diagnostic Parameters








STEERING COLUMN: ELECTRIC STEERING LOCK: TERMINALS OF ECU

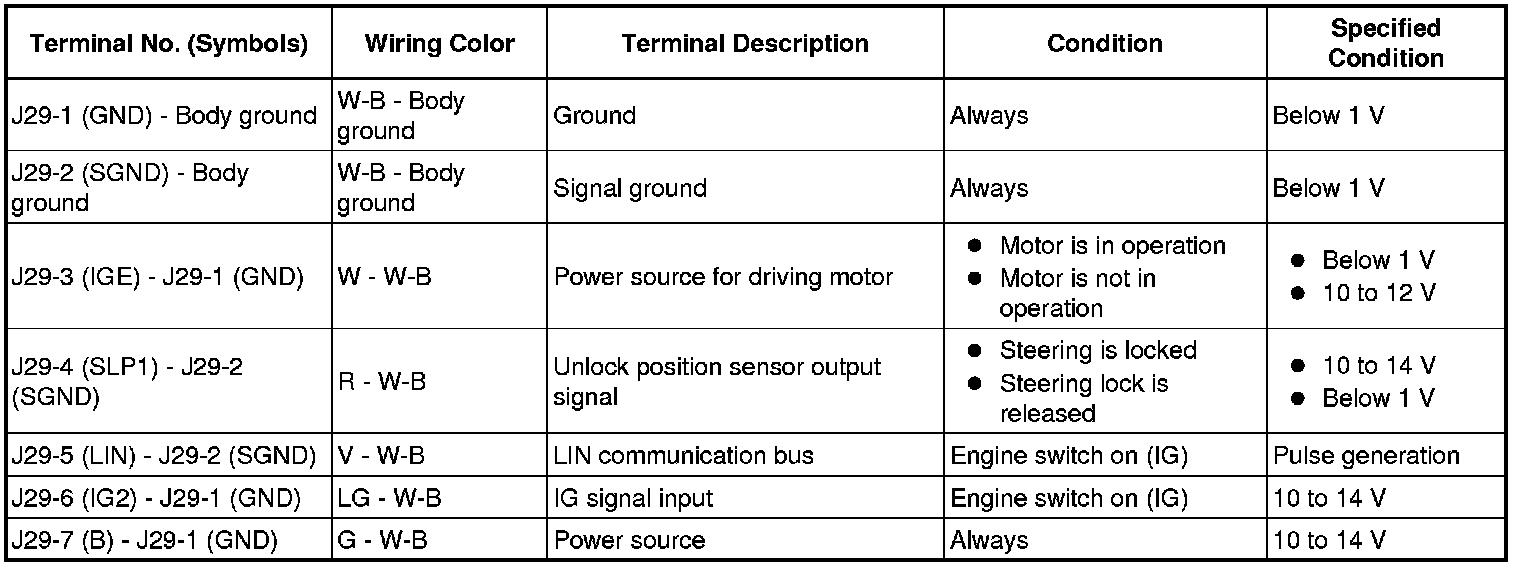

TERMINALS OF ECU

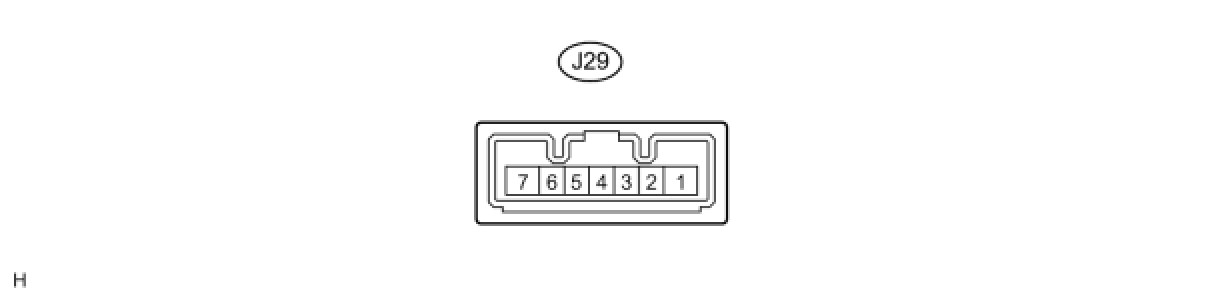

1. STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
