Starter Relay

4GR-FSE STARTING: STARTER RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT STARTER RELAY





(a) Using an ohmmeter, measure the resistance between each terminal.

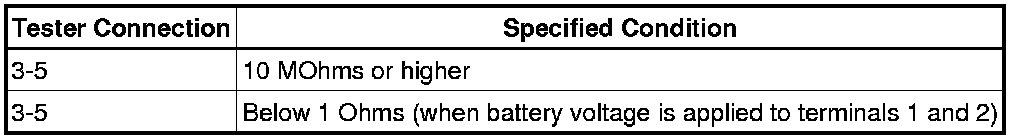

Standard resistance:





If the result is not as specified, replace the relay.
