Torque Specifications

SERVICE SPECIFICATIONS: A760H AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

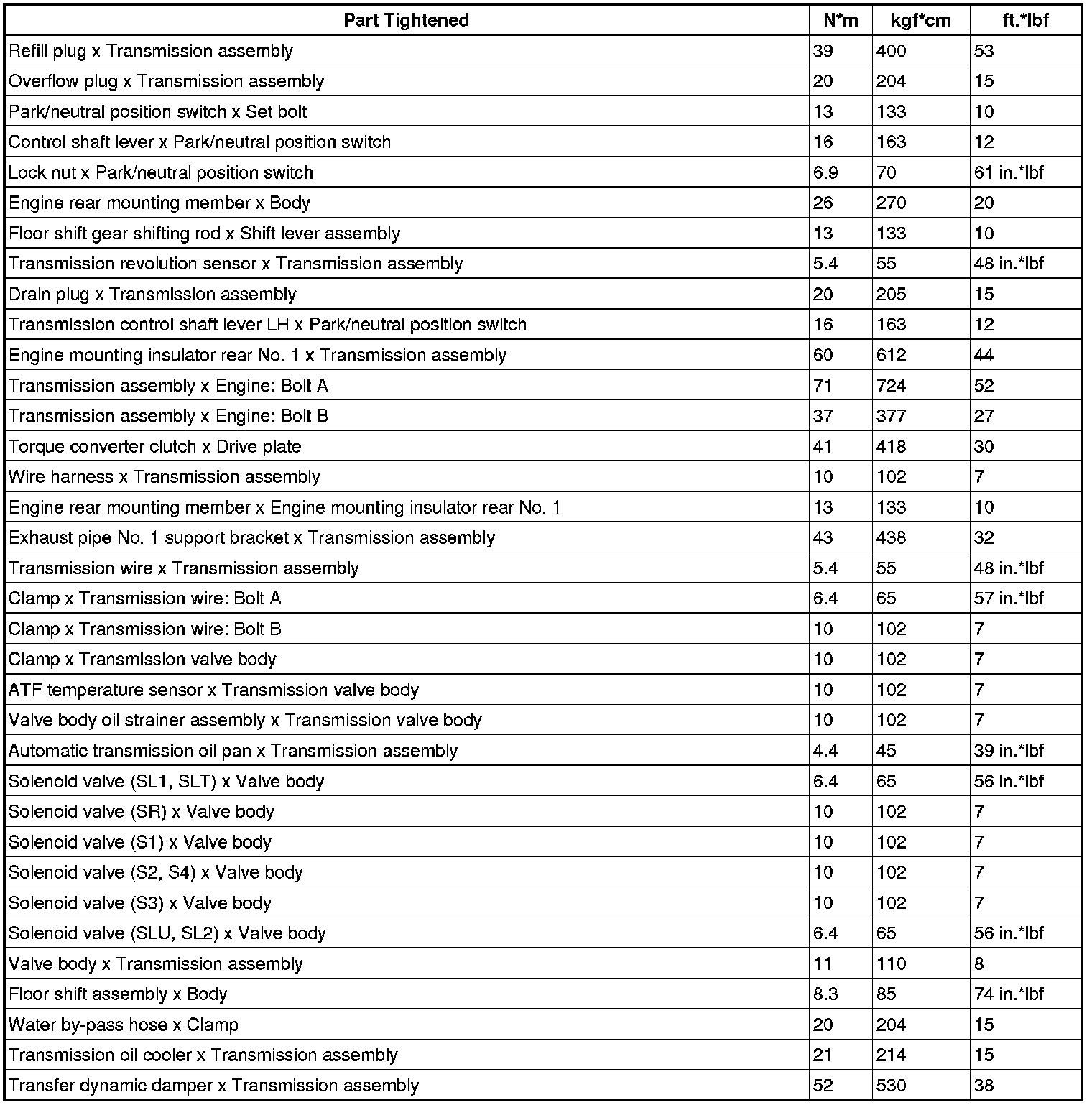

Automatic Transmission Assembly:

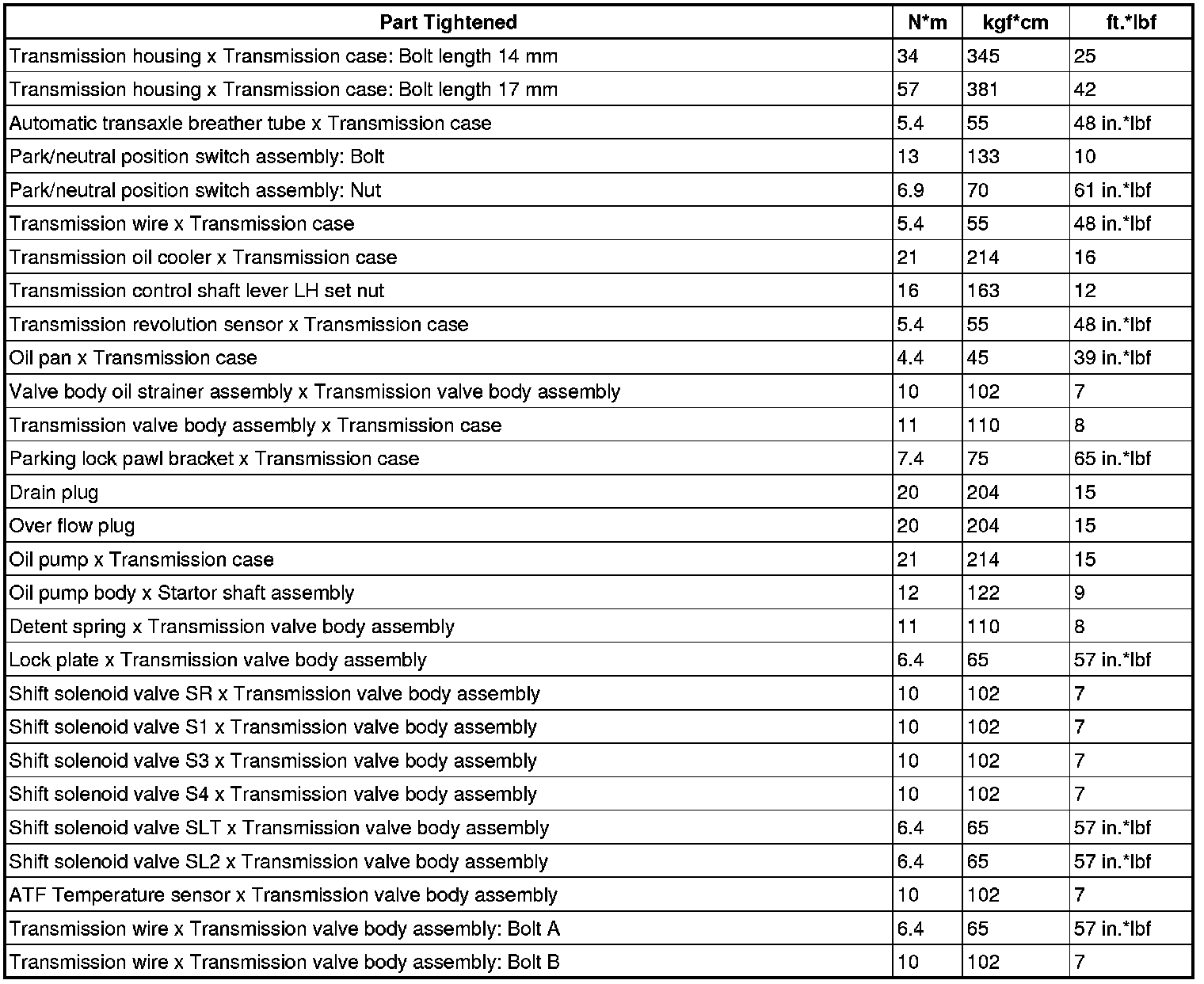

Automatic Transmission Unit:





Drive plate x Engine assembly 83 Nm (846 kgf-cm, 61 ft.lbf)
