UF1AE TRANSFER: TRANSFER CONTROL SOLENOID: REMOVAL

REMOVAL

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal
2. REMOVE REAR NO. 1 FLOOR PANEL BRACE Removal
3. REMOVE FRONT CENTER FLOOR BRACE Removal
4. DISCONNECT HEATED OXYGEN SENSOR Removal
5. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal
6. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR Removal
7. SUPPORT AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY Removal
8. REMOVE ENGINE REAR MOUNTING MEMBER Removal
9. REMOVE TRANSFER DYNAMIC DAMPER Removal
10. REMOVE TRANSFER OIL PAN Removal
11. REMOVE TRANSFER VALVE BODY ASSEMBLY Removal
12. REMOVE TRANSFER CONTROL SOLENOID

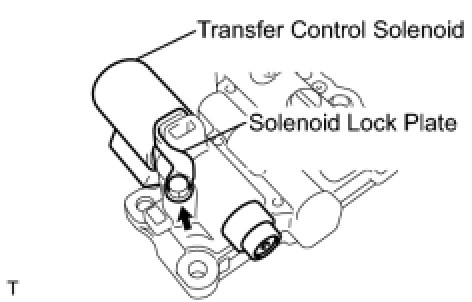

(a) Remove the bolt, solenoid lock plate and transfer control solenoid.
