Symptom Related Diagnostic Procedures








OTHER SYSTEM: CLOCK: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

Clock Assembly

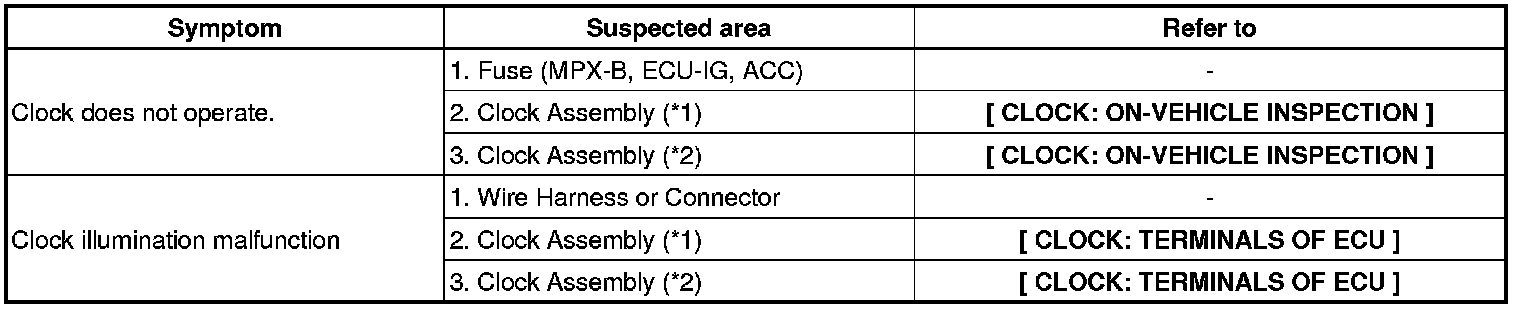

Symptom Chart:





*1: without Navigation System
*2: with Navigation System
