Pinout Values and Diagnostic Parameters

OTHER SYSTEM: CLOCK: TERMINALS OF ECU

TERMINALS OF ECU

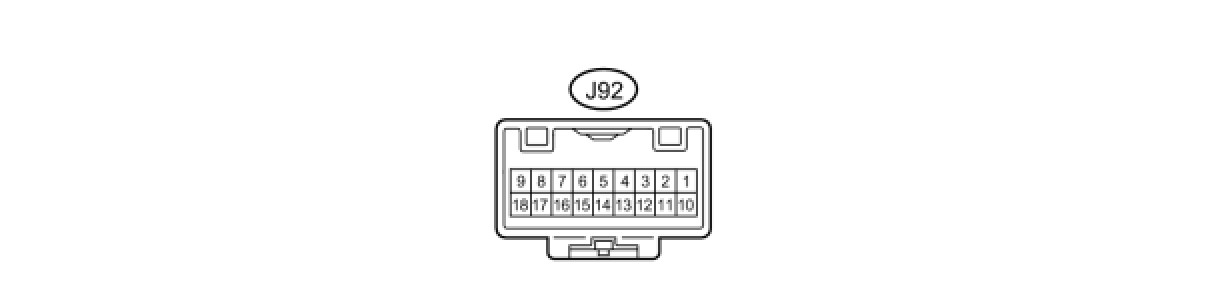

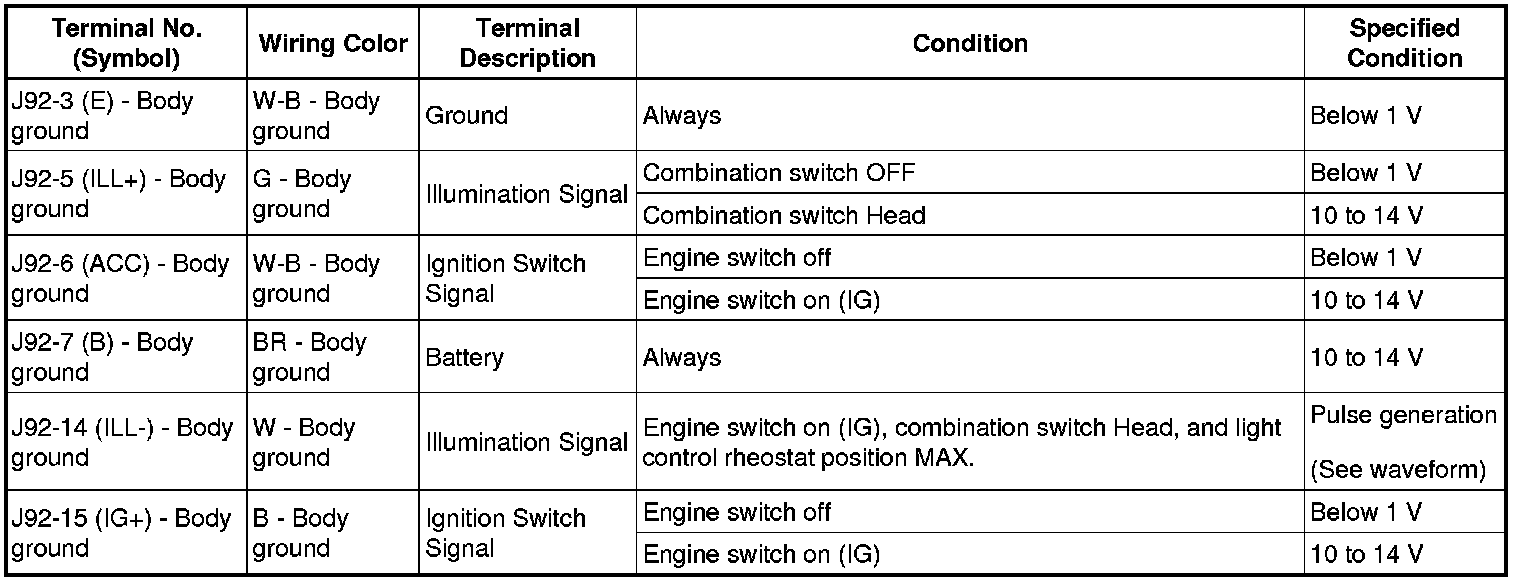

1. INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Navigation System)

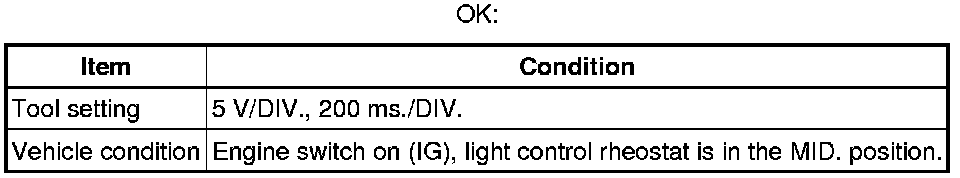

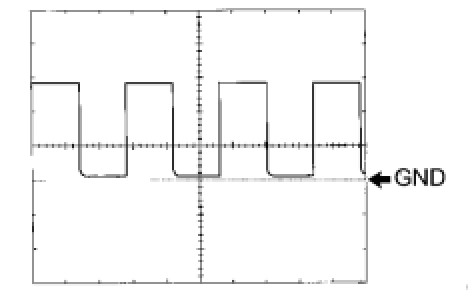

(a) Waveform (Reference) : Using an oscilloscope:

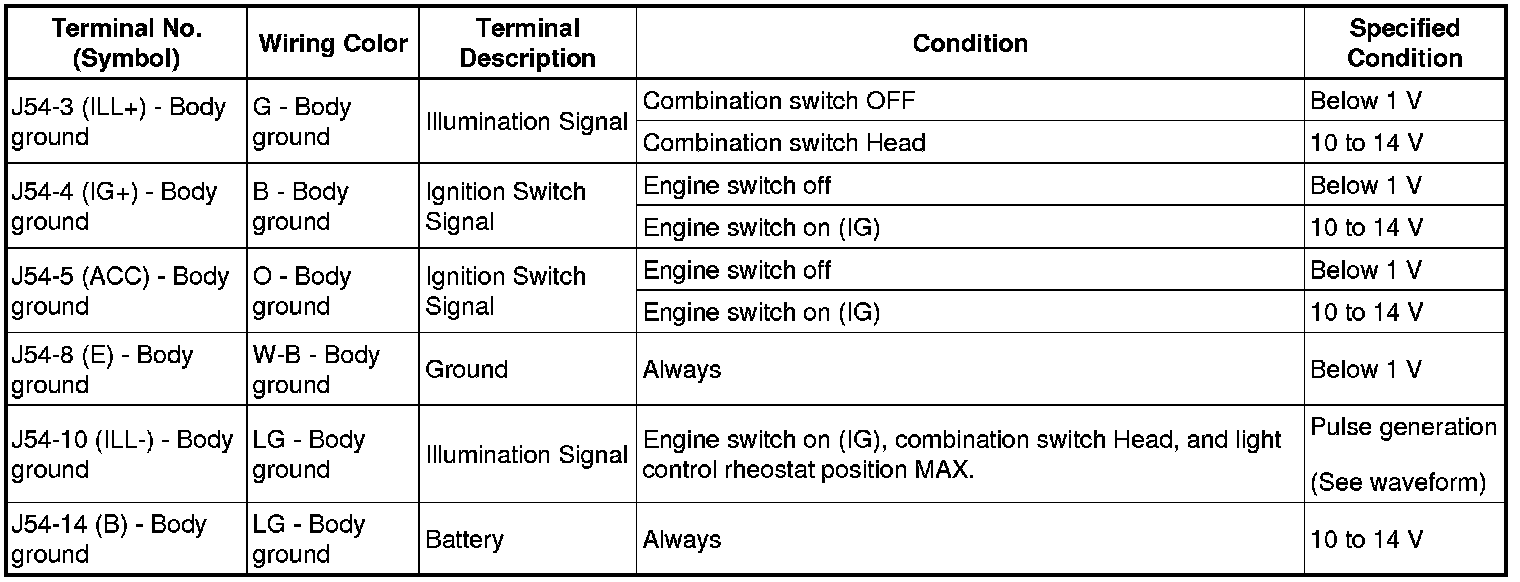

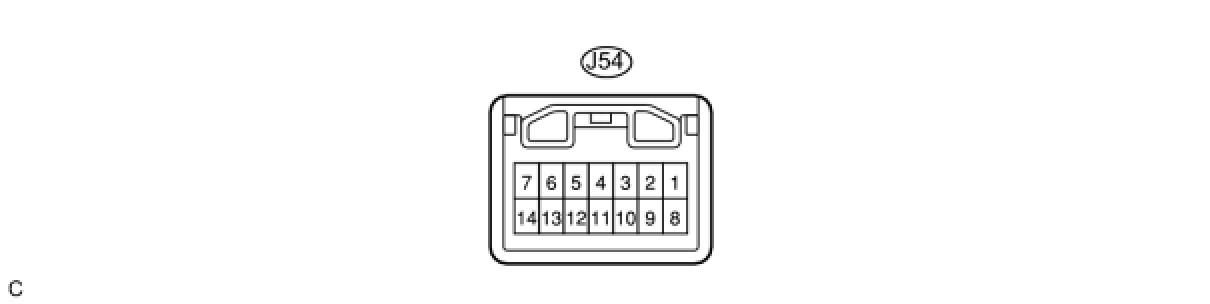

2. CLOCK ASSEMBLY (w/ Navigation System)













(a) Waveform (Reference) : Using an oscilloscope:
