Audible Warning Device: Testing and Inspection

BRAKE CONTROL: SKID CONTROL BUZZER: INSPECTION

INSPECTION

1. INSPECT SKID CONTROL BUZZER ASSEMBLY

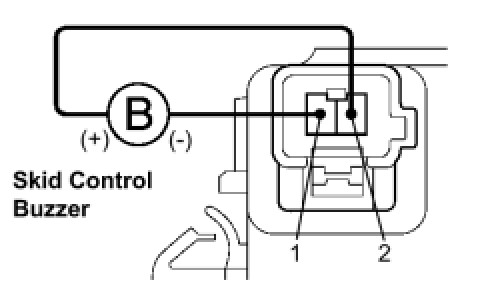

(a) Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
OK:
Skid control buzzer sounds.
HINT:
If the value is not as specified, replace the skid control buzzer.
