Removal

AIR CONDITIONING: HEATER GLOW PLUG: REMOVAL

REMOVAL

1. REMOVE HEATER WATER OUTLET HOSE Removal
2. REMOVE HEATER WATER INLET HOSE Removal
3. REMOVE WATER BY-PASS GLOW PLUG

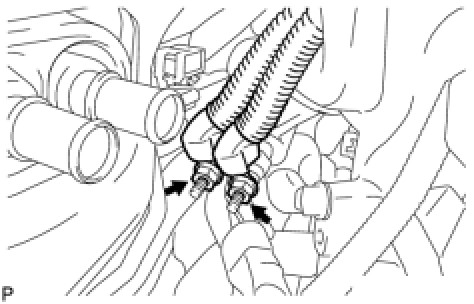

(a) Remove the 2 grommets, 2 nuts, 2 spring washers, and 2 washers. Disconnect the heater blower wire.

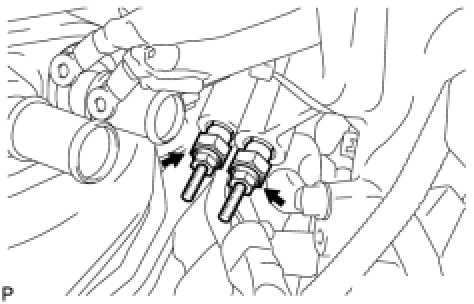

(b) Remove the water by-pass glow plug.
NOTE:
Prepare a container or a piece of cloth in case of coolant leakage.
