4GR-FSE ENGINE MECHANICAL: ENGINE REAR OIL SEAL: REMOVAL

REMOVAL

1. REMOVE MANUAL TRANSMISSION ASSEMBLY (for Manual Transmission)
HINT:
.

2. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (for Automatic Transmission)
HINT:
- A960E .
- A760H Removal.

3. REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transmission) Removal
4. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transmission) Removal
5. REMOVE ENGINE REAR OIL SEAL

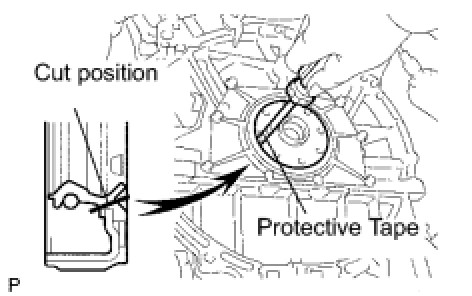

(a) Using a knife, cut through the oil seal lip.
(b) Using a screwdriver with its tip taped, pry out the oil seal.
HINT:
Tape the screwdriver tip before use.
NOTE:
After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
