BRAKE: BRAKE PEDAL: INSTALLATION

INSTALLATION

1. INSTALL BRAKE PEDAL PAD
2. INSTALL STOP LIGHT SWITCH ASSEMBLY
(a) Temporarily install the stop light switch assembly with the lock nut.
(b) Fully tighten the stop light switch assembly with the lock nut after inspecting and adjusting brake pedal height Adjustments.
3. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

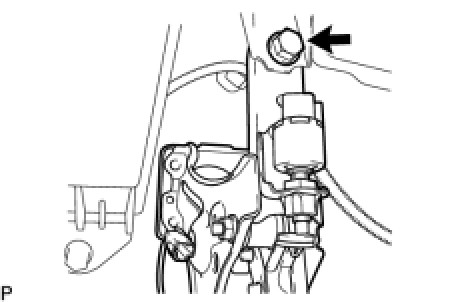

(a) Install the brake pedal support assembly with the bolt.
Torque: 21 Nm (214 kgf-cm, 16 ft-lbf)

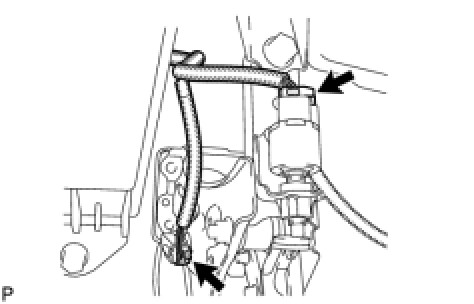

(b) Engage the wire harness clamp.
(c) Connect the 2 connectors.
4. INSTALL BRAKE BOOSTER ASSEMBLY
HINT:
Refer to the procedure from Install Brake Booster Assembly Installation.
